Cameras with Sony IMX992 Sensor: Specs, Prices & Life Cycle
Gaspar van Elmbt
This article contains the main specifications of Sony IMX992 image sensor. Additionally, the article explores how the sensor can be integrated into different camera interfaces such as GigE and USB3, depending on the desired features. Finally, it provides a brief overview of selecting compatible industrial lenses to maximize the IMX992's performance.
Download here the machine vision camera manual that includes the specifications of our cameras with Sony IMX992, the spectral response graphs and mechanical drawings.
Table of contents
Sony IMX992 image sensor specifications
The Sony IMX992 is a high-performance CMOS image sensor designed for industrial and machine vision applications. It features a resolution of 5 megapixels (2592x2056), a pixel size of 3.45μm, and a global shutter type. The IMX992 can achieve a maximum frame rate of 134fps at full resolution for 10GigE interface.
Machine vision camera prices of Sony IMX992
We have developed a range of industrial cameras based on the Sony IMX992 sensor. These cameras offer high image quality, fast frame rates, and reliable performance in demanding environments. At VA Imaging, we pride ourselves on providing exceptional value to our customers. Our cameras with IMX992 sensor are competitively priced thanks to our efficient operations and commitment to maintaining low margins. We stand behind the quality of our products with a comprehensive 3-year warranty on all industrial cameras, including our cameras with IMX992 sensor. Our customers also benefit from our exceptional technical support, extensive product portfolio, and quick delivery times. These factors, combined with our competitive pricing, make VA Imaging an ideal choice for businesses seeking high-performance, cost-effective machine vision solutions.
Selected Sony IMX Cameras
Sony IMX992 sensor for 10GigE vision camera
The IMX992 sensor is well-suited for 10GigE cameras, which provide a robust and reliable interface for industrial applications. 10GigE cameras offer long cable lengths, up to 100 meters, making them ideal for distributed systems and applications where the camera needs to be located away from the host computer. Our GigE camera model with IMX992 are MARS-533-134-GTM-TN-SWIR and MER3 533-55G3M-P-SWIR. For our GigE cameras, you can download the camera manual, free SDK and 3D files in our Download page.
Industrial lens for Sony IMX992 camera

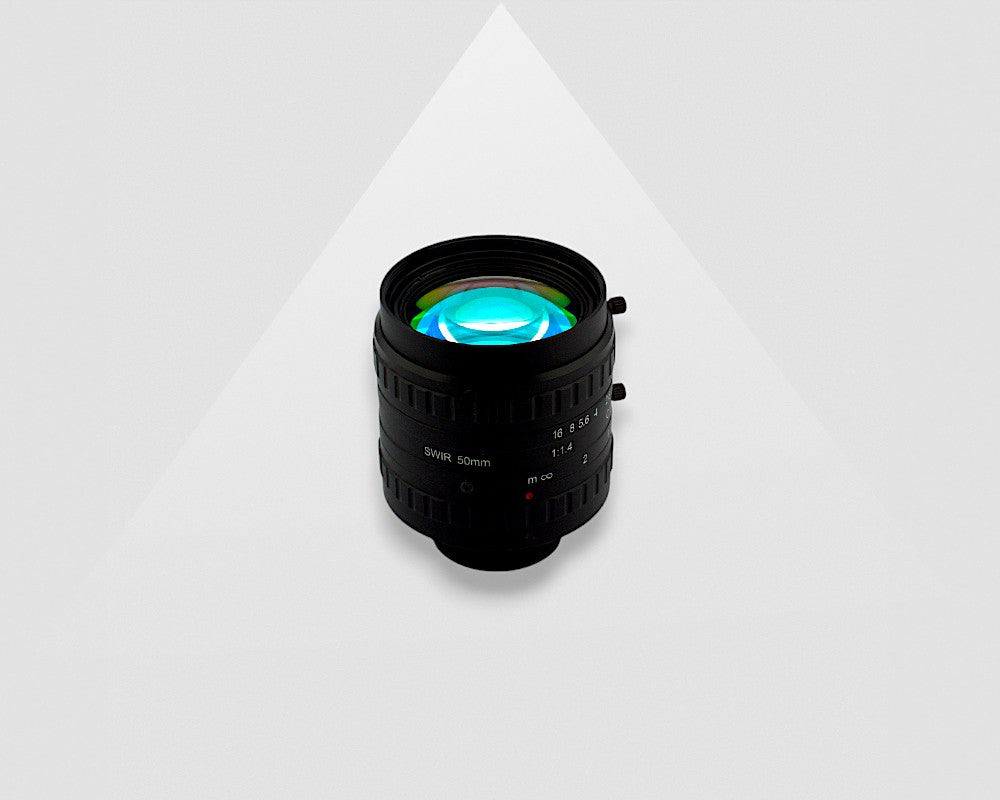

When selecting an industrial lens for the IMX992 sensor, it is important to consider factors such as the sensor size, resolution, and the specific application requirements. High-quality lenses designed for machine vision applications can help maximize the performance of the IMX992 sensor and ensure optimal image quality. With a pixel size of 3.45μm and resolving power of 160 lp/mm our SWIR lenses from 1” 5MP series are ideal to combine with IMX992.
Do you need help choosing the right lens? You can use our Lens calculator tool. Additionally, feel free to fill out the short form below, and our experts will be happy to recommend the most suitable camera-lens setup for your specific needs!
Spectral response of IMX992 monochrome sensors
Product life cycle of Sony IMX992
The IMX992 sensor is a mature sensor with a proven track record in the machine vision market. This means it has been around for a significant amount of time and has a well-established reputation for performance and reliability. Because of this maturity, you can be confident that the IMX992 sensor will deliver consistent image quality and operate reliably for years to come.
Here at VA Imaging, we understand the importance of choosing the right sensor for your machine vision application. That's why we are proud to offer a wide range of cameras that utilize the IMX992 sensor. In fact, we produce tens of thousands of cameras per year that use sensors up to 6 megapixels, with the IMX992 being a popular choice. This high production volume speaks to the versatility and effectiveness of this sensor in a wide variety of machine vision tasks.
In conclusion, the IMX992 sensor's maturity, proven track record, and high
production volume make it a reliable and cost-effective option for many machine
vision applications. If you are considering a camera with the IMX992 sensor, you can be assured that you are making a solid investment.
