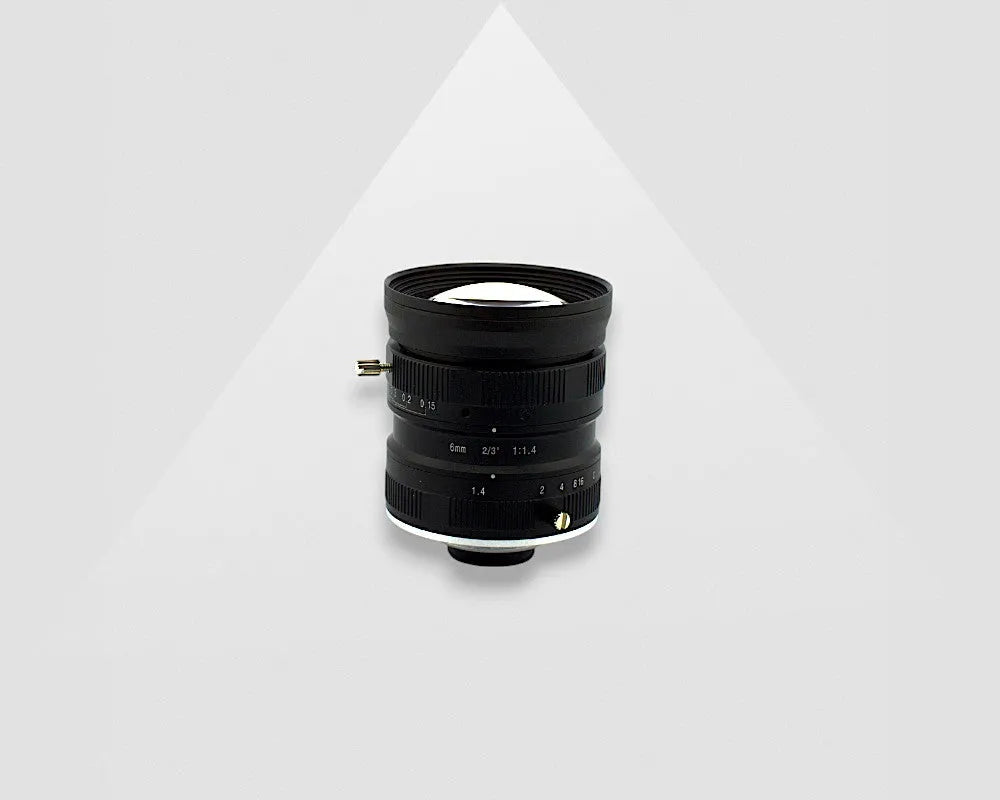

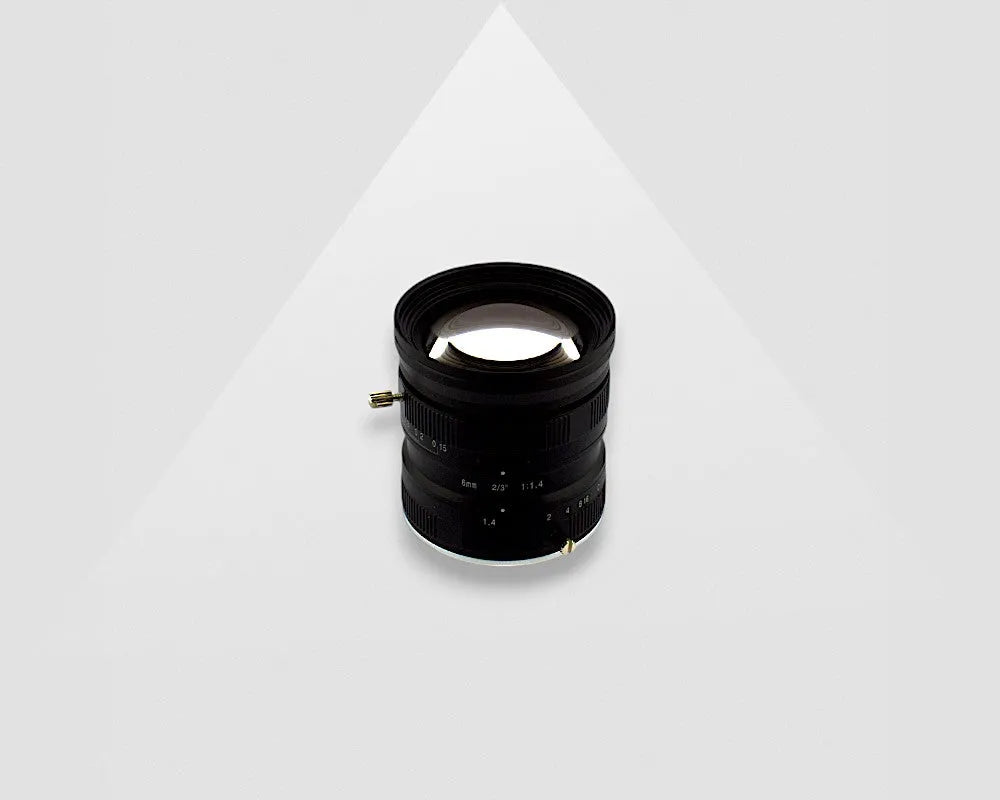

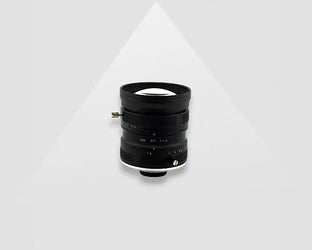

VA-LCM-5MP-06MM-F1.4-015, LENS C-mount 5MP 6MM F1.4 2/3 inch NON DISTORTION
VA-LCM-5MP-06MM-F1.4-015
Lens C-mount
VA-LCM-5MP-06MM-F1.4-015
- LENS C-mount 5MP 6MM F1.4 2/3 inch NON DISTORTION
Tiempo de entrega: Estándar 3-6 semanas, Exprés 0-3 semanas
Calidad Industrial
Machine Vision
Descripción
The VA-LCM-5MP series are high resolution (up to 5MP) lenses designed for cameras with a 2/3" sensor or smaller, to create sharp images. The low F number makes it a very light sensitive lens, ideal for low illumination situations due to short exposure times or poor light conditions. The series has multiple focal lengths to assure the right working distance can be met for each application. The iris and focus are adjustable and can be fixed by a screw.
Más informaciónEspecificaciones
| Número de parte | VA-LCM-5MP-06MM-F1.4-015 |
| Lens resolution (megapixel) | 5 |
| Lens Image format / circle | 2/3" |
| Lens focal length (mm) | 6 |
| Lens aperture / iris | Manual iris |
| Lens aperture (min) | F1.4 |
| Lens minimum object distance (MOD) - Max | 100mm - Infinity |
| Lens mount | C |

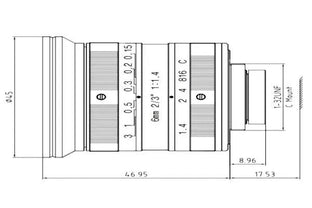

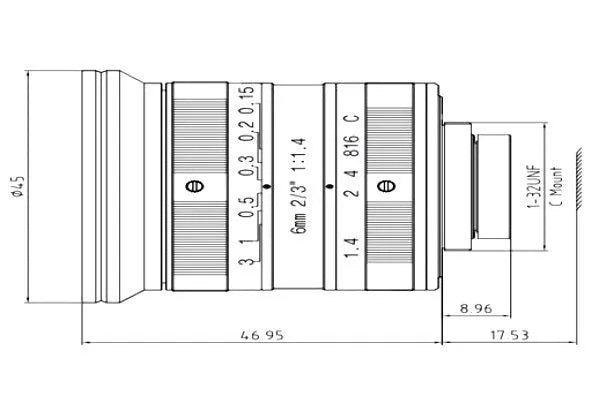

| Lens dimensions | 45x46.95mm |
| Lens distortion | < 1.5% |
| Lens filter thread | N/A |
¿Tiene alguna pregunta sobre VA-LCM-5MP-06MM-F1.4-015?
Haga su pregunta a través de
| Número de parte | VA-LCM-5MP-06MM-F1.4-015 |
| Lens resolution (megapixel) | 5 |
| Lens Image format / circle | 2/3" |
| Lens focal length (mm) | 6 |
| Lens aperture / iris | Manual iris |
| Lens aperture (min) | F1.4 |
| Lens minimum object distance (MOD) - Max | 100mm - Infinity |
| Lens mount | C |
| Lens dimensions | 45x46.95mm |
| Lens distortion | < 1.5% |
| Lens filter thread | N/A |
| Lens weight (g) | 190 |
| Partnumber old | LCM-5MP-06MM-F1.4-1.5-ND1 |
