MARS-2440-35GTM, IMX540, 5328x4608, 35fps, 1.2 inch, Global shutter, CMOS, Mono
- IMX540
- 5328x4608
- 35fps
- 1.2 inch
- Global shutter
- CMOS
- Mono

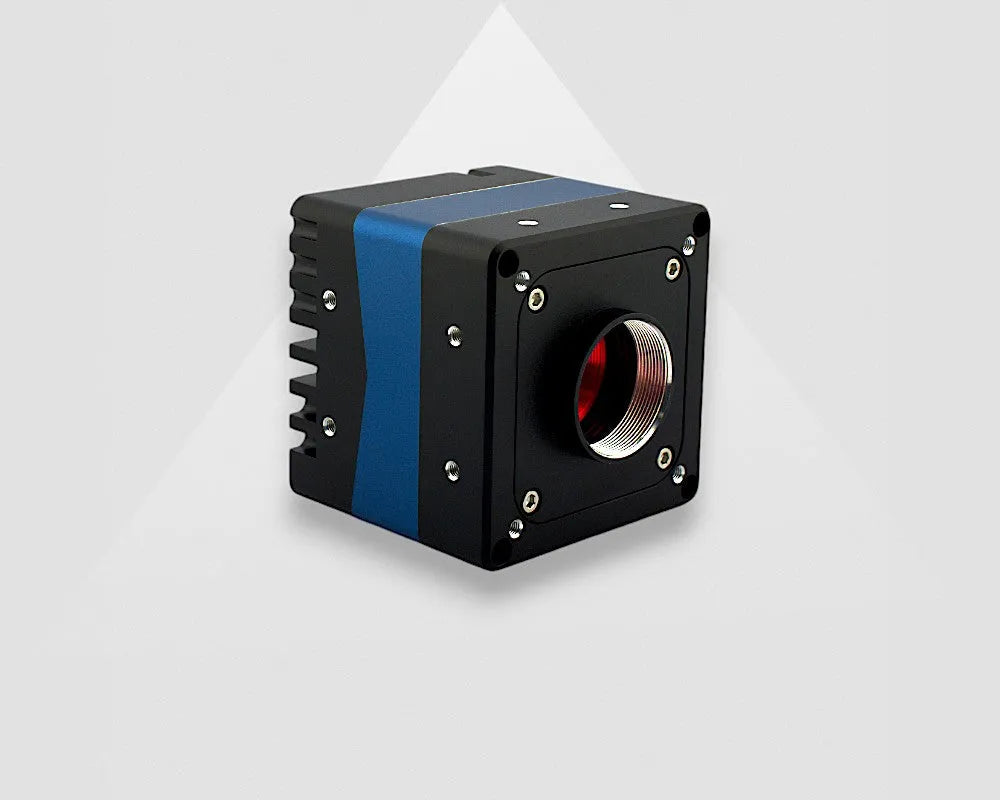

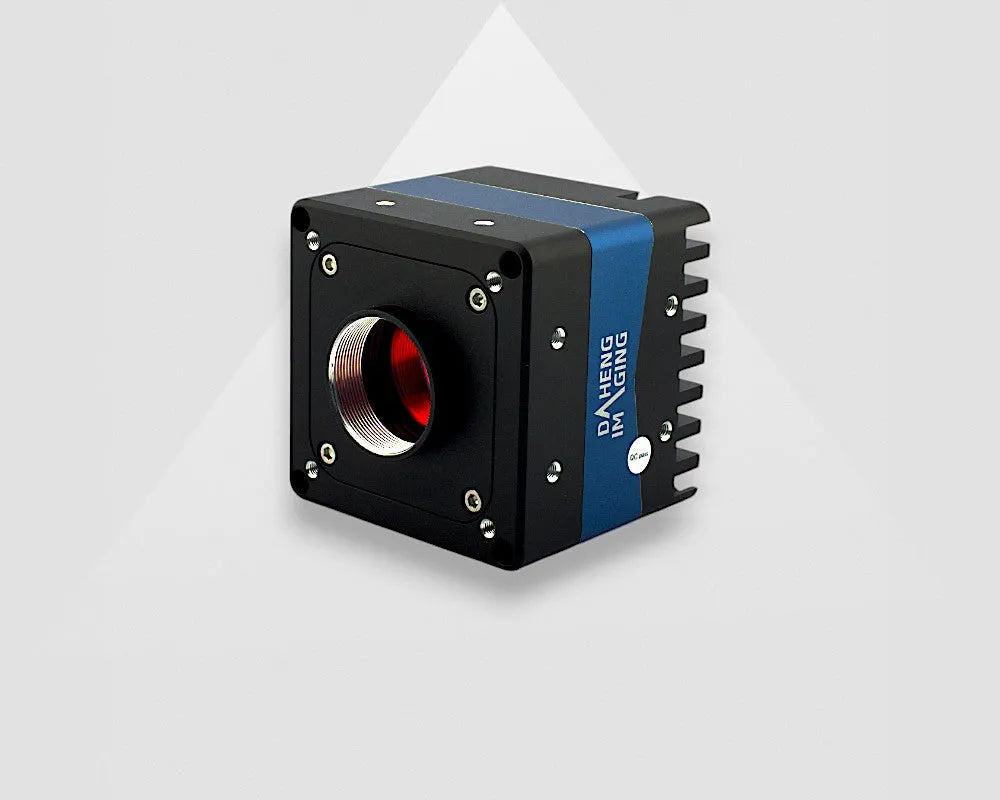

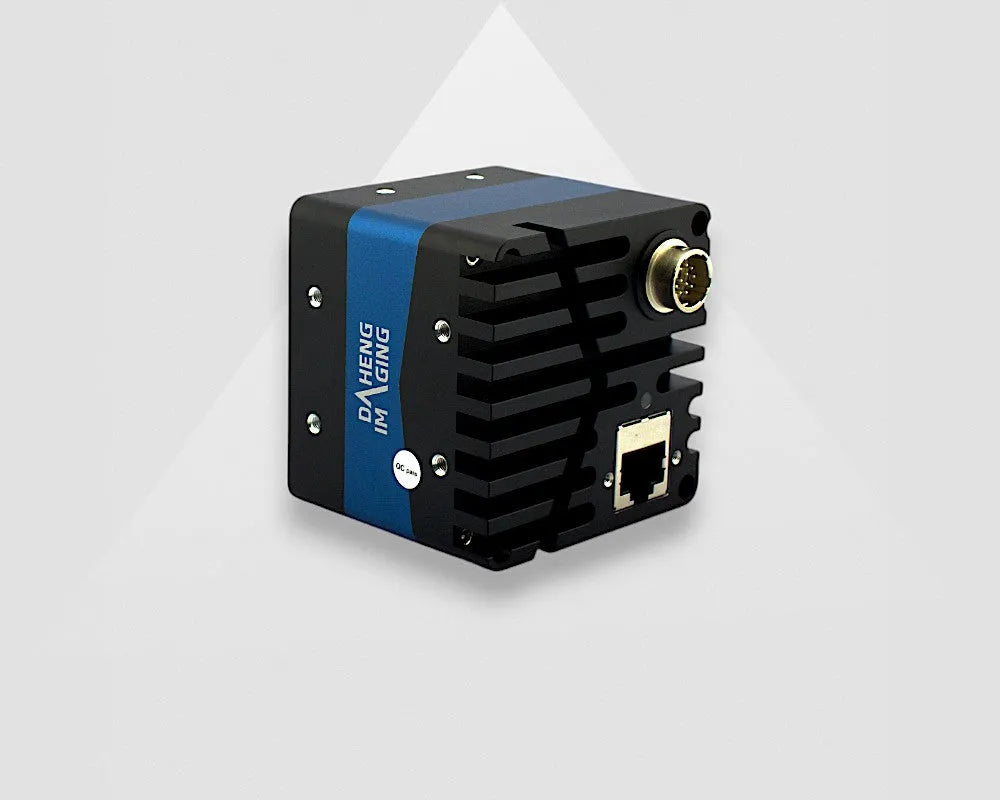

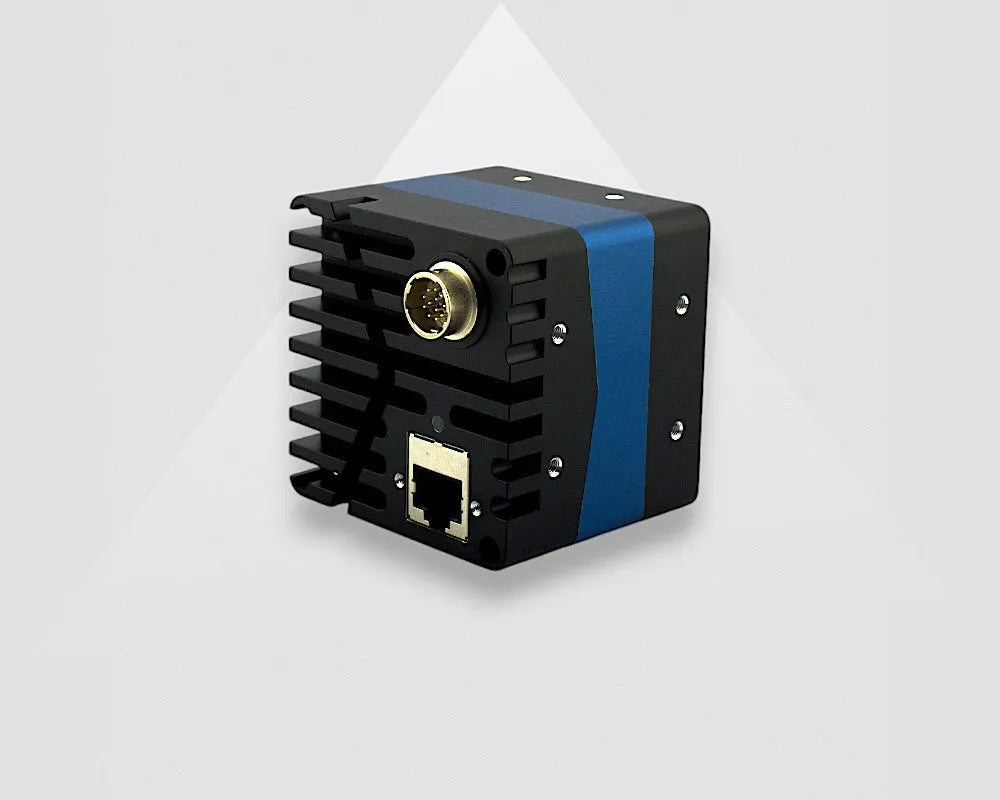

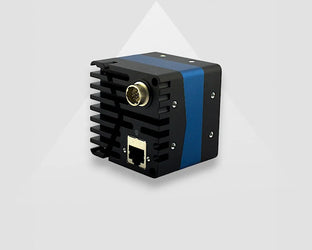

10GIGE VISION CAMERA IMX540
The Mars 10GigE series is an industrial 10GigE vision camera, with a 10GigE interface. This is the best interface for high resolution and / or, high speed imaging where cable length is more than 5 meters. 10GigE is 10x faster then a normal GigE ethernet camera and 2x faster than USB3.
This MARS-2440-35GTM is interesting for you when your application complies with the following conditions:
- An industrial highspeed or highresolution camera
- Maximum cable length of 100 meters using cat6a or higher cable
- Inexpensive and easy installation of cables.

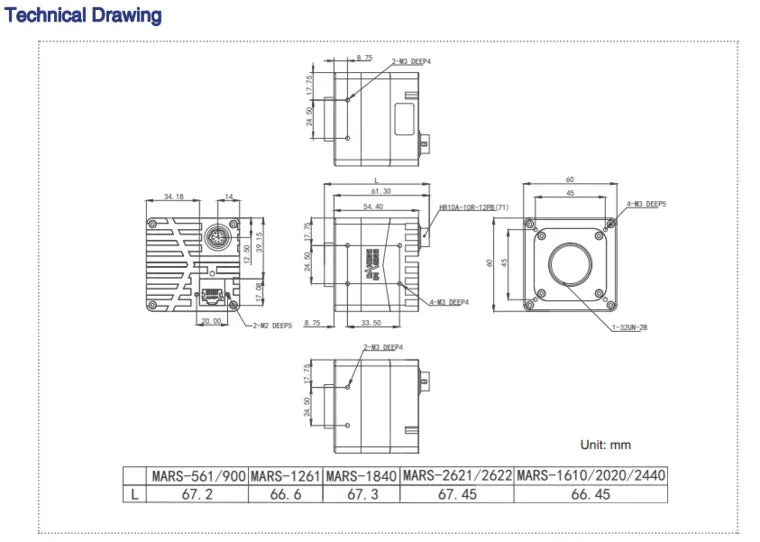

- Dimensions are: 60x60x54mm
The camera requires a 10GigE framegrabber. If your computer does not have a 10GigE port, we recommend this framegrabber VA-PCIe4-10GP-1. If more details are required, the manual can be consulted.
Altre informazioniSpecifiche
| Numero di parte | MARS-2440-35GTM |
| Interfaccia | 10GigE Vision |
| Risoluzione | 5328x4608 |
| Frequenza fotogrammi (fps) | 35 |
| Dimensione pixel (um) | 2.74 |
| Colore/Mono | Mono |
| Tipo di sensore | Sony IMX540 |
| Dimensioni del sensore | 1.2'' |
| Tipo di otturatore | Global Shutter |
| Tempo di otturazione | 1us~1s |
| Profondità di bit dell'ADC | 12bit |
INDUSTRIAL 10GIGE CAMERA WITHOUT POE
The 10GigE camera series does NOT have Power over Ethernet (PoE). Make sure to order a I/O cable suitable for MARS cameras to power the camera.

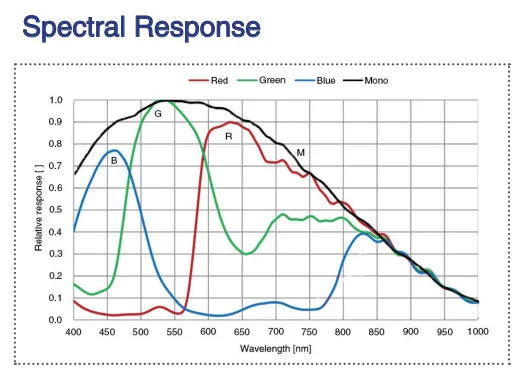

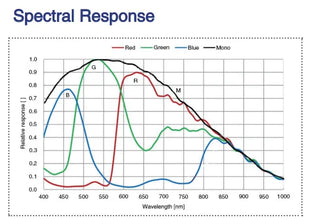

Monochrome Industrial Camera
A black and white camera, also known as a monochrome camera, offers advantages in a variety of applications. While the market for security and telephony focusses on color cameras, the industrial market utilizes the advantages of black and white cameras. Black and white cameras are very light sensitive, provide sharp images and reduces data compared to color. This makes it ideal for the processing of images. By selecting the optimal lighting color and lens filter, product characteristics can be highlighted. Enabling the creation of high-resolution images with high contrast using a monochrome cameras.
MTBF, WARRANTY & PRODUCT LIFE CYCLE
Each year, Daheng Imaging produces more than 100.000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is available for at least 7 years. Most cameras have a much longer product life cycle. For more information about our product life cycle management, check this article.
| Numero di parte | MARS-2440-35GTM |
| Interfaccia | 10GigE Vision |
| Risoluzione | 5328x4608 |
| Frequenza fotogrammi (fps) | 35 |
| Dimensione pixel (um) | 2.74 |
| Colore/Mono | Mono |
| Tipo di sensore | Sony IMX540 |
| Dimensioni del sensore | 1.2'' |
| Tipo di otturatore | Global Shutter |
| Tempo di otturazione | 1us~1s |
| Profondità di bit dell'ADC | 12bit |
| Profondità di bit del pixel | 8bit, 10bit, 12bit |
| Guadagno digitale | 0dB~24dB |
| Formato dei dati pixel | Mono8 / Mono10 / Mono12 |
| Sincronizzazione | Hardware trigger, software trigger |
| I/O | 1 input and 1 output with opto-isolated, 1 bidirectional programmable GPIO |
| Temperatura di funzionamento | 0°C~50°C |
| Umidità di funzionamento | 10%~80% |
| Attacco per obiettivo | C |
| Dimensioni | 60x60x54.4mm |
| SDK | Win10/Win11 32bit, 64bit OS, 64bit OS is recommended |
| Consumo energetico | < 12.8W @ 12VDC |
| Conformità | CE, RoHS, FCC, ICES, UKCA, GigE Vision® , GenICam® |
| Megapixel | 25 |
| Numero di parte vecchio | MARS-2440-35GTM |
| SDK | Win10/Win11 32bit, 64bit OS, 64bit OS is recommended |
