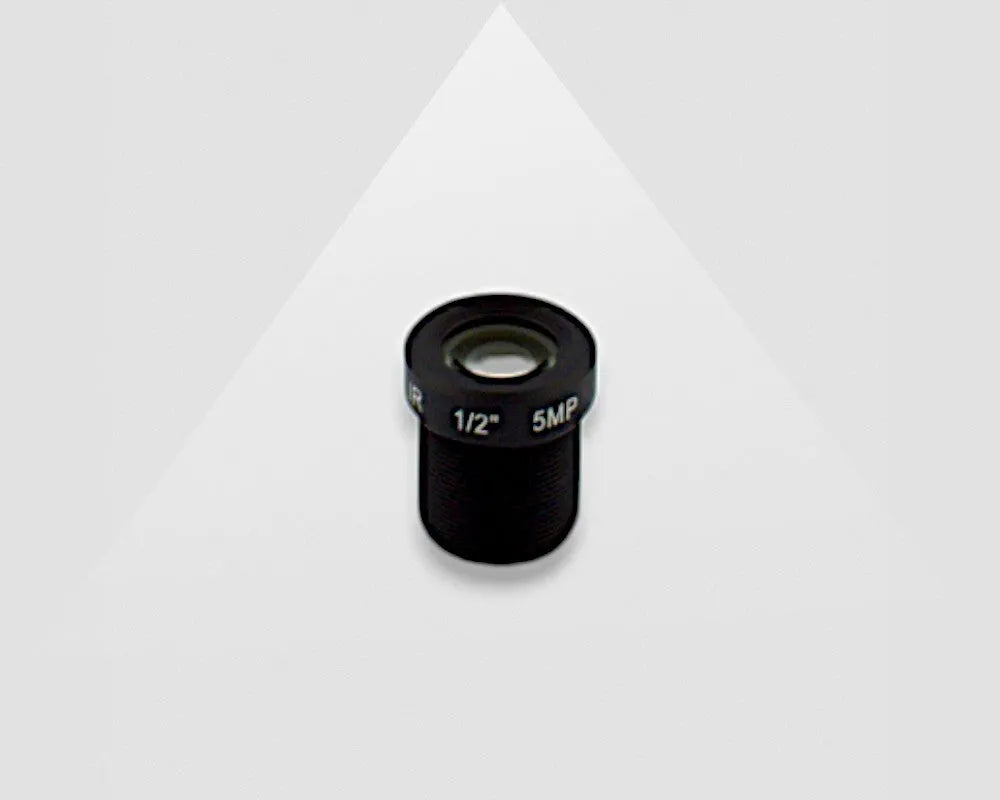

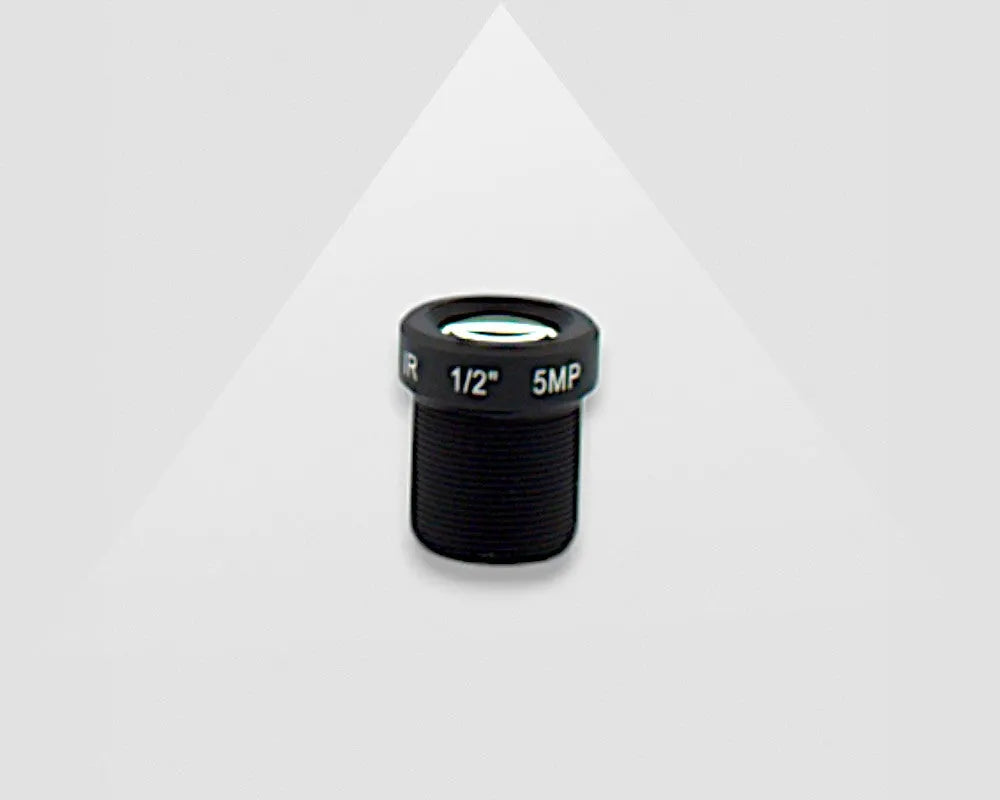

VA-LM12-5MP-16MM-F2.0-020, LENS M12 5MP 16MM F2.0 1/2 inch NON DISTORTION
VA-LM12-5MP-16MM-F2.0-020
Lens M12-mount
VA-LM12-5MP-16MM-F2.0-020
- LENS M12 5MP 16MM F2.0 1/2 inch NON DISTORTION
Tempi di consegna: Standard 3-6, Express 0-3 settimane
Qualità industriale
Visione artificiale
Descrizione
The VA-LM12-5MP NON DISTORTION series are high resolution lenses designed for board level cameras or cs-mount cameras in combination with a CS-mount to m12 adapter with a 1/2" sensor or smaller, to create sharp distortion free images. The non distortion in combination with the large opening angle makes this lens series, ideal for high quality imaging in for example medical and life science devices where a short working distance but large field of view is required. The serie has multiple focal lengths to assure the right working distance can be met for each application. The lens has a fixed iris and the focus is adjustable by turning the lens.
Product Life Cycle Management
This specific M12 lens does not comply to our standard product life cycle managed portfolio. This M12 lens is used in security applications and is produced in high volumes. However it can happen that the manufacturer suddenly decides to stop production or will have a new version of the lens that has slightly different specifications. We are not informed upfront when this happens and therefore, we can’t manage the life cycle of this product. Because this lens is used in high volume security applications, the pricing of the lens is very attractive. When you design this lens into your product, we recommend that you buy enough stock for the upcoming years, so that the lack of product life cycle management for this product is not an issue for you.
For your information, we do have M12 lenses that do comply to our product life cycle managed portfolio, but these lenses are more expensive.
Altre informazioni
Product Life Cycle Management
This specific M12 lens does not comply to our standard product life cycle managed portfolio. This M12 lens is used in security applications and is produced in high volumes. However it can happen that the manufacturer suddenly decides to stop production or will have a new version of the lens that has slightly different specifications. We are not informed upfront when this happens and therefore, we can’t manage the life cycle of this product. Because this lens is used in high volume security applications, the pricing of the lens is very attractive. When you design this lens into your product, we recommend that you buy enough stock for the upcoming years, so that the lack of product life cycle management for this product is not an issue for you.
For your information, we do have M12 lenses that do comply to our product life cycle managed portfolio, but these lenses are more expensive.
Altre informazioni
Specifiche
| Numero di parte | VA-LM12-5MP-16MM-F2.0-020 |
| Risoluzione (megapixel) | 5 |
| Formato immagine / cerchio | 1/2" |
| IR corretta | true |
| Lunghezza focale (mm) | 16 |
| Apertura / iride | Fixed iris |
| Aperture (min) | F2.0 |
| Distanza minima dell'oggetto (MOD) - max | 300mm - Infinity |
| Attacco dell'obiettivo | M12 |

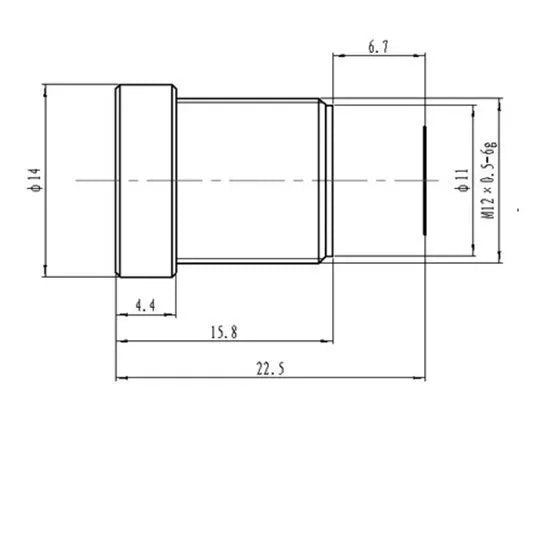

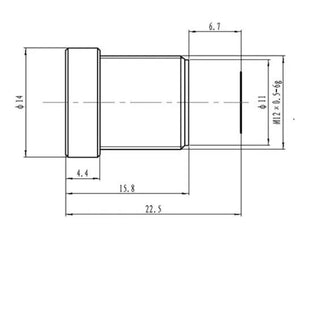

| Dimensioni | 14x15.8mm |
| Distorsione | < 2% |
| Numero di parte | VA-LM12-5MP-16MM-F2.0-020 |
| Risoluzione (megapixel) | 5 |
| Formato immagine / cerchio | 1/2" |
| IR corretta | true |
| Lunghezza focale (mm) | 16 |
| Apertura / iride | Fixed iris |
| Aperture (min) | F2.0 |
| Distanza minima dell'oggetto (MOD) - max | 300mm - Infinity |
| Attacco dell'obiettivo | M12 |
| Dimensioni | 14x15.8mm |
| Distorsione | < 2% |
| Filettatura del filtro | N/A |
| Peso (g) | 6 |
| Numero di parte vecchio | LM12-5MP-16MM-F2.0-2-ND1 |
