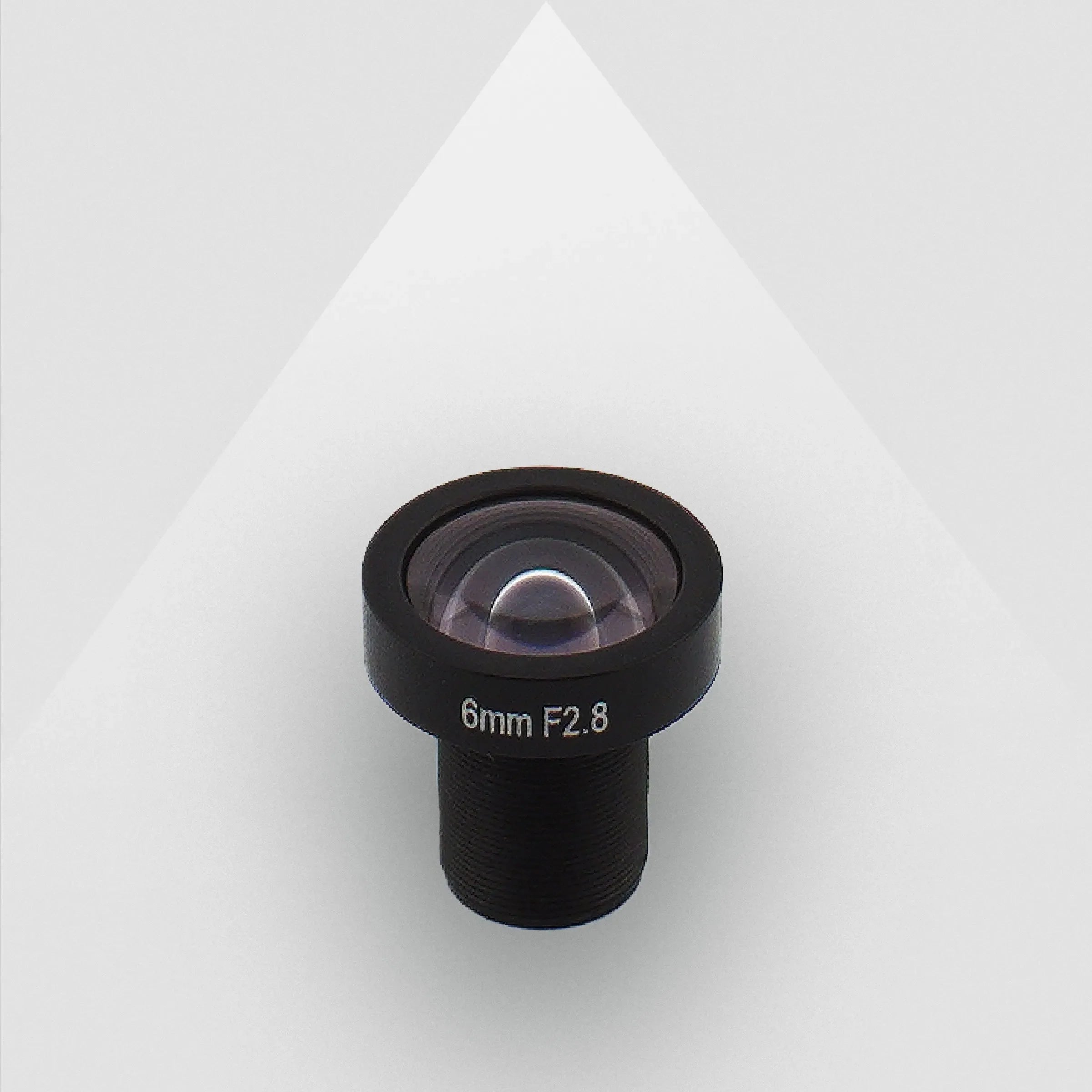

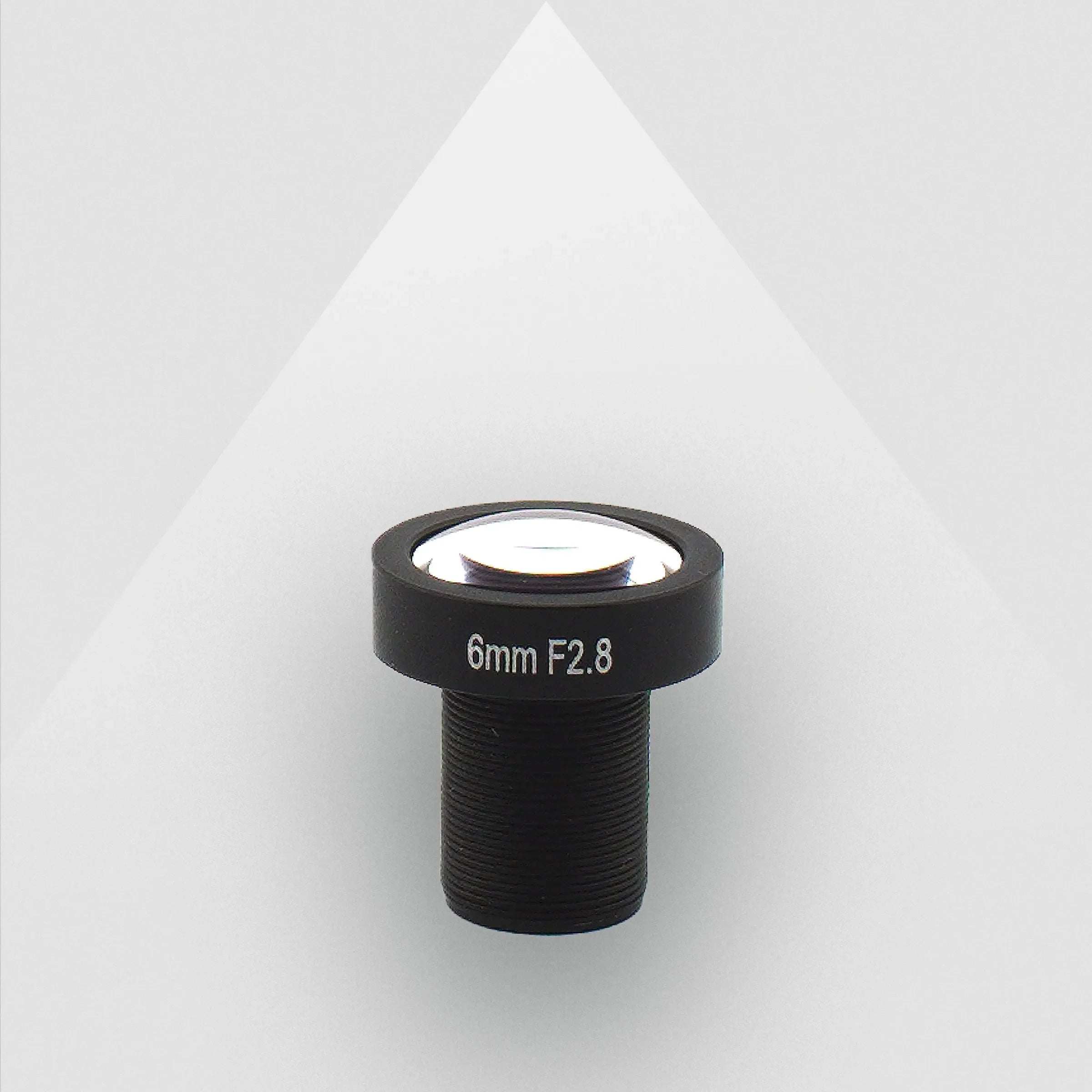

VA-LM12-5MP-06MM-F2.8-018, LENS M12 5MP 6MM F2.8 1/1.8 inch NON DISTORTION

VA-LM12-5MP-06MM-F2.8-018 Lens M12-mount
VA-LM12-5MP-06MM-F2.8-018
  • LENS M12 5MP 6MM F2.8 1/1.8 inch NON DISTORTION
€59,00
Tempi di consegna: Standard 3-6, Express 0-3 settimane
Qualità industriale
Visione artificiale

Descrizione

The VA-LM12-5MP NON DISTORTION series are high resolution (up to 5MP) lenses designed for board level cameras or cs-mount cameras in combination with a CS-mount to m12 adapter with a 1/1.8" sensor or smaller, to create sharp distortion free images. The non distortion in combination with the large opening angle makes this lens series, ideal for high quality imaging in for example medical and life science devices where a short working distance but large field of view is required. The serie has multiple focal lengths to assure the right working distance can be met for each application. The lens has a fixed iris and the focus is adjustable by turning the lens.

This is a compressed image to demonstrate image distortion. Original image quality is sharper and more detailed.
Altre informazioni

Specifiche

Numero di parte VA-LM12-5MP-06MM-F2.8-018
Risoluzione dell'obiettivo (megapixel) 5
Formato immagine dell'obiettivo / cerchio 1/1.8"
Lunghezza focale dell'obiettivo (mm) 6
Apertura dell'obiettivo / iride Fixed iris
Lens aperture (min) F2.8
Distanza minima dell'oggetto dell'obiettivo (MOD) - max 100mm - Infinity
Attacco dell'obiettivo M12

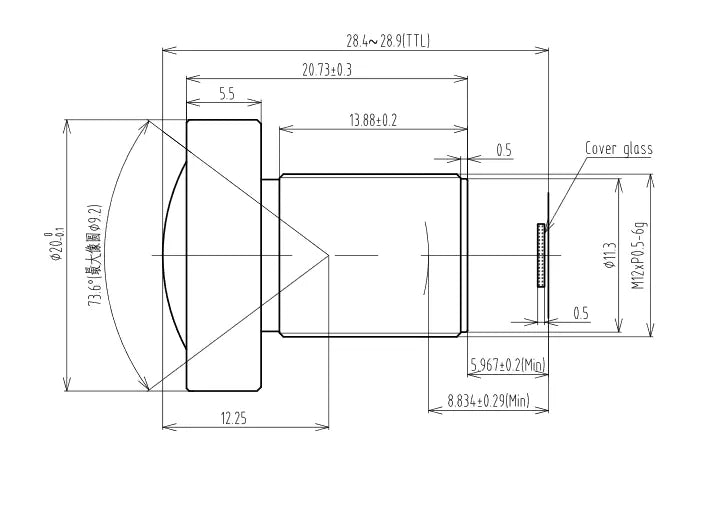

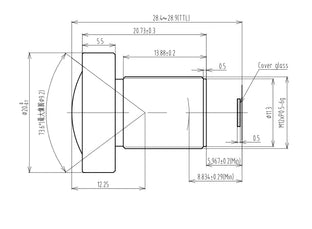

Dimensioni degli obiettivi 20x20.73mm
Distorsione dell'obiettivo < 0.5%
Filettatura del filtro dell'obiettivo N/A
Vedi tutte le specifiche

Downloads

Hai bisogno del manuale di VA-LM12-5MP-06MM-F2.8-018?

Hai una domanda su VA-LM12-5MP-06MM-F2.8-018?

Facci la tua domanda tramite

Numero di parte VA-LM12-5MP-06MM-F2.8-018
Risoluzione dell'obiettivo (megapixel) 5
Formato immagine dell'obiettivo / cerchio 1/1.8"
Lunghezza focale dell'obiettivo (mm) 6
Apertura dell'obiettivo / iride Fixed iris
Lens aperture (min) F2.8
Distanza minima dell'oggetto dell'obiettivo (MOD) - max 100mm - Infinity
Attacco dell'obiettivo M12
Dimensioni degli obiettivi 20x20.73mm
Distorsione dell'obiettivo < 0.5%
Filettatura del filtro dell'obiettivo N/A
Peso dell'obiettivo (g) 8
Numero di parte vecchio LM12-5MP-06MM-F2.8-1.8-ND1
€59,00
