VEN-160-227U3M-FPC, IMX273, 1440x1080, 227fps, 1/2.9 Zoll, Global shutter, Boardlevel, Mono
- IMX273
- 1440x1080
- 227fps
- 1/2.9 Zoll
- Global shutter
- Boardlevel
- Mono
USB3 Vision OEM Camera IMX273

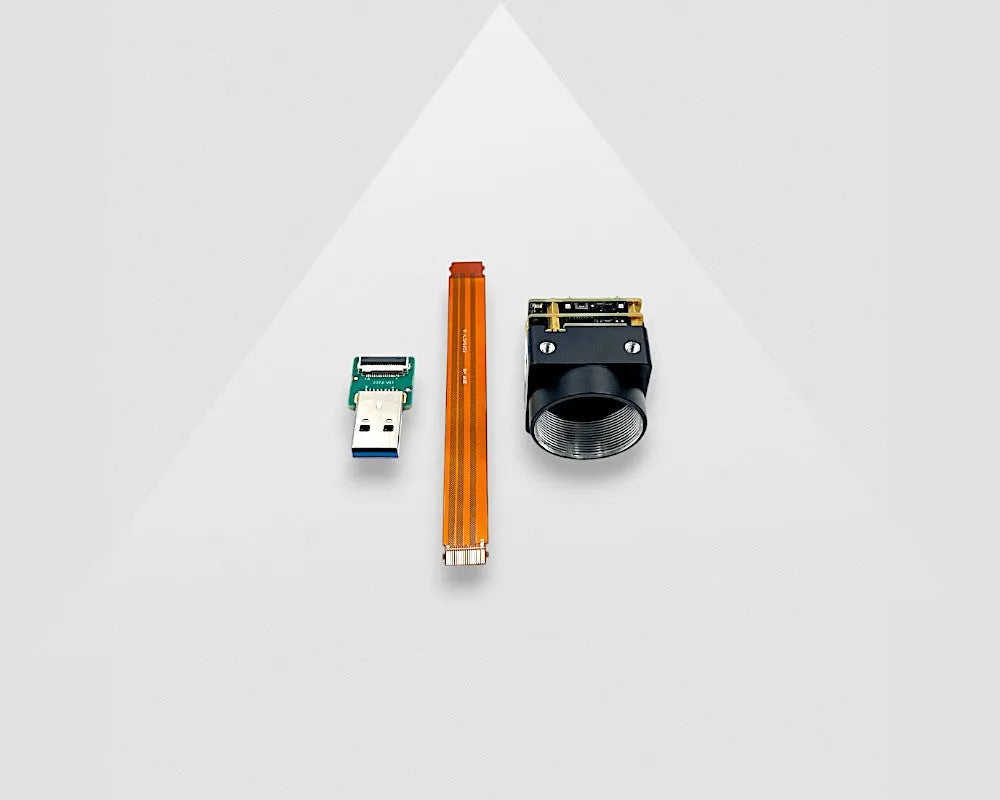

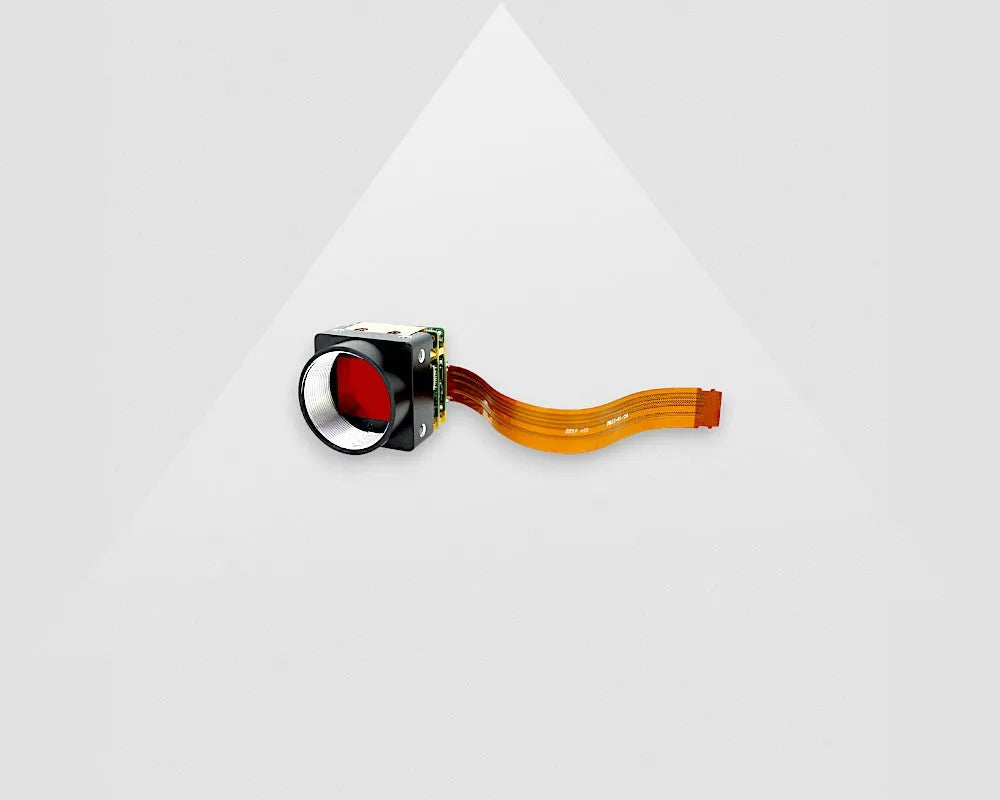

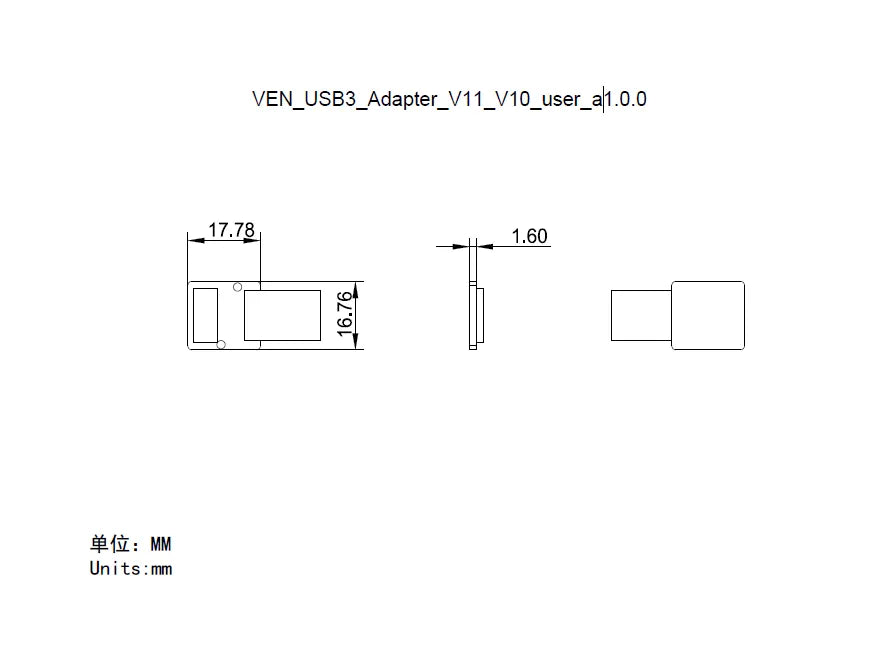

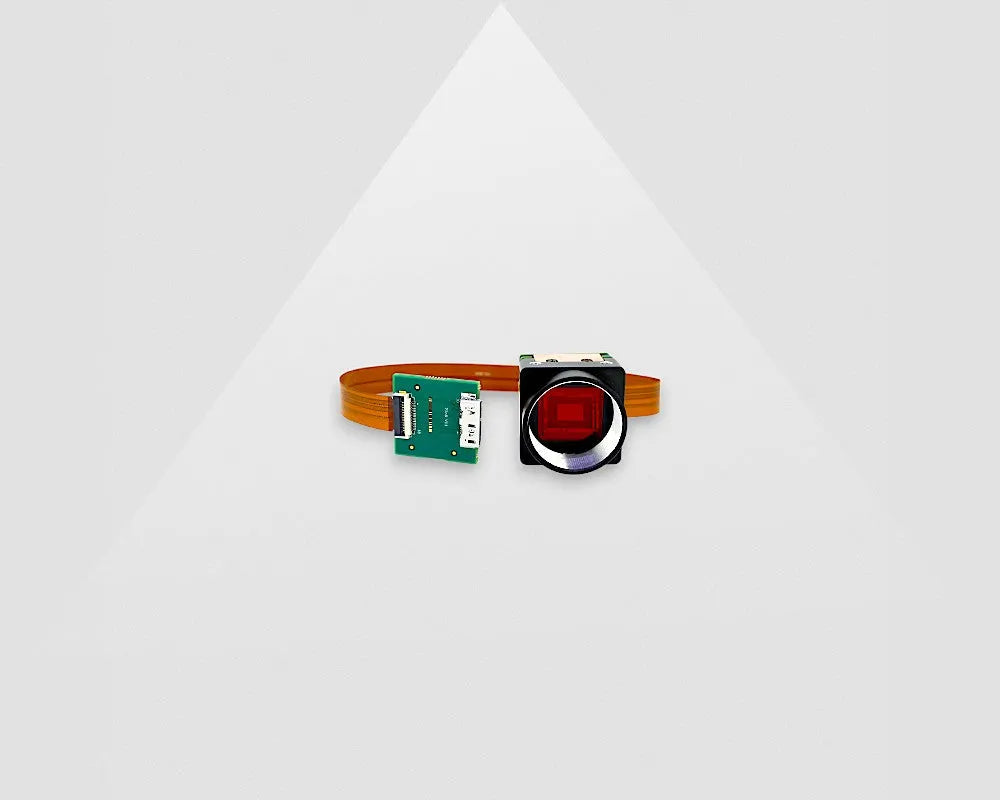

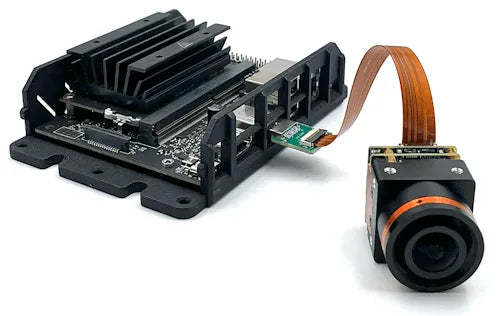

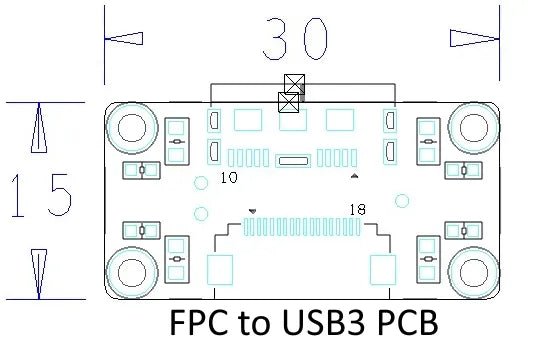

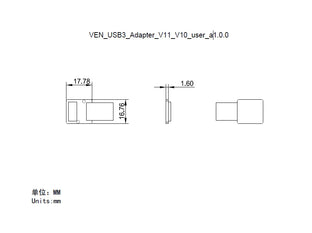

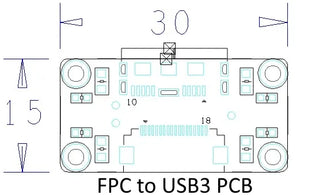

The Venus USB3.0 FPC camera series is an industrial boardlevel camera, with an USB3.0 interface. It has a special FPC connector, reducing the size of a standard USB3.0 connector. As a result, the camera is even more compact and easier to integrate in devices. A small PCB that converts the FPC connector to a USB3 Micro B connector, so you can easily test this camera. This can be disconected to save space. USB3.0 is an appropriate interface for high resolution and high-speed cameras. Furthermore, this interface is very suitable for embedded platforms such as the Raspberry Pi (4 or higher), NVIDIA family.
This model is interesting for you when your application complies with the following conditions:
- You need a very compact camera (29x29x33.3mm) with an extreme compact connection interface
- 100, 200 or 500mm FPC cable option
- Only one cable is required to connect the device
- Suitable for PC’s and embedded platforms: ARM V7 & ARM V8
- Hardware triggering
Spezifikationen
| Artikelnummer | VEN-160-227U3M-FPC |
| Schnittstelle | USB3 Vision |
| Auflösung | 1440x1080 |
| Bildrate (fps) | 227 |
| Pixelgröße (um) | 3.45 |
| Farbe/Mono | Mono |
| Sensortyp | Sony IMX273 |
| Sensorgröße | 1/2.9" |
| Shutter Typ | Global Shutter |
| Shutter Zeit | 52us~1s |
| ADC-Bit-Tiefe | 10bit |
Warranty & Product Life Cycle
Daheng Imaging produce yearly more than 100.000 industrial cameras according to the highest quality standards. The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is at least available for 7 years. Most cameras have even a much longer product life cycle. For more information about our product life cycle management, check this article.
Monochrome Camera
| Artikelnummer | VEN-160-227U3M-FPC |
| Schnittstelle | USB3 Vision |
| Auflösung | 1440x1080 |
| Bildrate (fps) | 227 |
| Pixelgröße (um) | 3.45 |
| Farbe/Mono | Mono |
| Sensortyp | Sony IMX273 |
| Sensorgröße | 1/2.9" |
| Shutter Typ | Global Shutter |
| Shutter Zeit | 52us~1s |
| ADC-Bit-Tiefe | 10bit |
| Pixel-Bittiefe | 8bit, 10bit |
| Digitaler Gain | 0dB~24dB |
| Pixel-Datenformat | Mono8 / Mono10 |
| Synchronisation | Hardware trigger, software trigger |
| E/A | 1 Bidirectional GPIO |
| Betriebstemperatur. | 0°C~45°C |
| Betriebsfeuchtigkeit | 10%~80% |
| Objektiv Halterung | C |
| Dimensionen | 29x29x33.3mm |
| SDK-Software | Windows / Linux / Android |
| Stromverbrauch | <2.7W@5V |
| Konformität | RoHS, CE, FCC, USB3 Vision, Genicam |
| Megapixel | 2 |
| Artikelnummer alt | VEN-160-227U3M-FPC |
| SDK-Software | Windows / Linux / Android |
