VA-LM12-5MP-04MM-F2.0-025, End of life, Limited stock available ( > 100 left
VA-LM12-5MP-04MM-F2.0-025

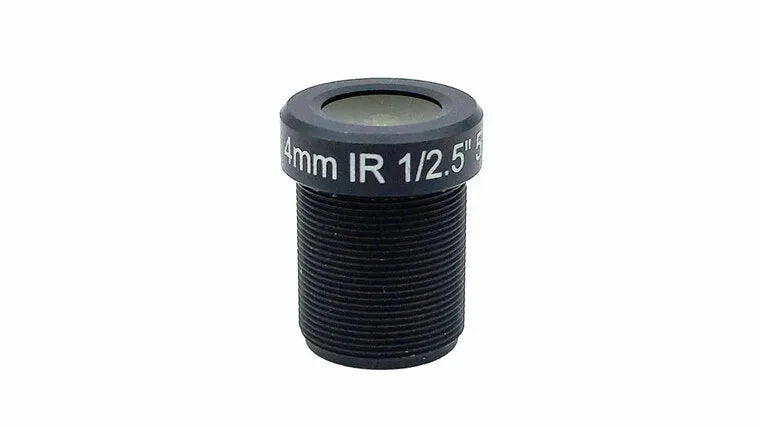

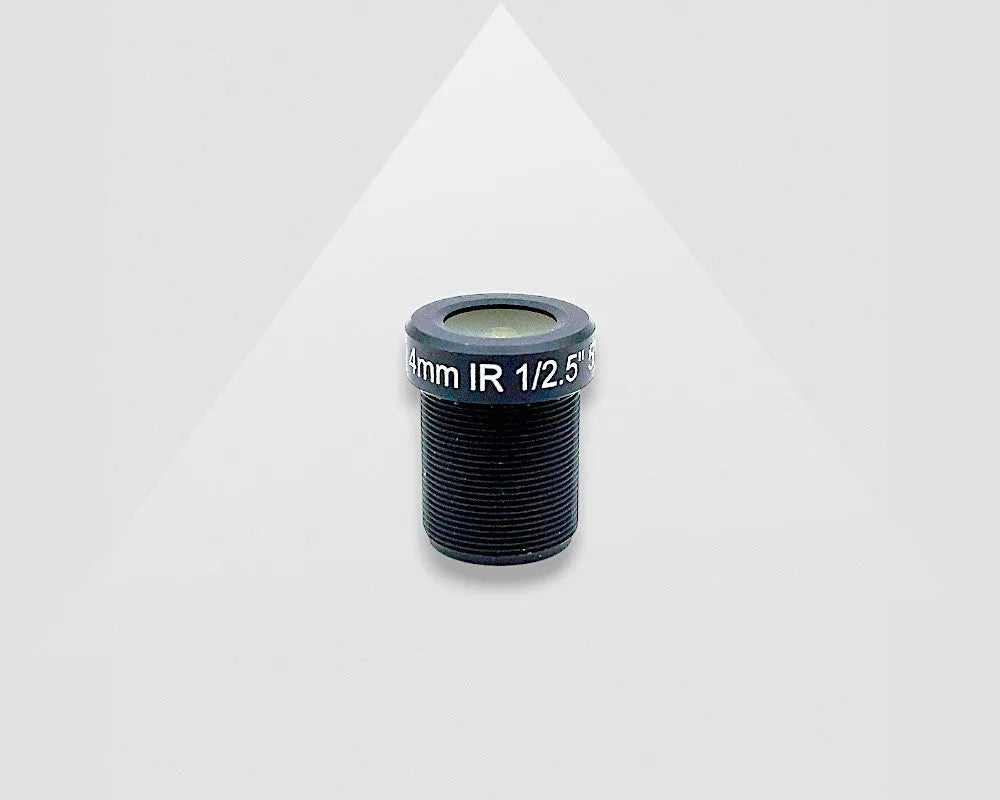

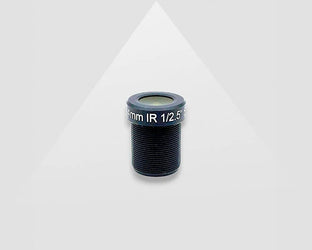

Lens M12-mount
VA-LM12-5MP-04MM-F2.0-025
- End of life
- Limited stock available ( > 100 left
Tiempo de entrega: Estándar 3-6 semanas, Exprés 0-3 semanas
Calidad Industrial
Machine Vision
Descripción
The VA-LM12-5MP MEDIUM DISTORTION series are high resolution (up to 5MP) lenses designed for board level cameras or cs-mount cameras in combination with a CS-mount to m12 adapter with a 1/2.5" sensor or smaller, to create sharp images. The medium distortion in combination with the large opening angle makes this lens series, ideal for high quality imaging in for example medical and life science devices where a short working distance but large field of view is required. The lens has multiple focal lengths to assure the right working distance can be met for each application. The lens has a fixed iris and the focus is adjustable by turning the lens.
Más informaciónEspecificaciones
| Número de parte | VA-LM12-5MP-04MM-F2.0-025 |
| Lens resolution (megapixel) | 5 |
| Lens Image format / circle | 1/2.5" |
| Lens focal length (mm) | 4 |
| Lens aperture / iris | Fixed iris |
| Lens aperture (min) | F2.0 |
| Lens minimum object distance (MOD) - Max | 100mm - Infinity |
| Lens mount | M12 |
| Lens dimensions | 14x17mm |
| Lens filter thread | N/A |
| Lens weight (g) | 6 |
¿Tiene alguna pregunta sobre VA-LM12-5MP-04MM-F2.0-025?
Haga su pregunta a través de
| Número de parte | VA-LM12-5MP-04MM-F2.0-025 |
| Lens resolution (megapixel) | 5 |
| Lens Image format / circle | 1/2.5" |
| Lens focal length (mm) | 4 |
| Lens aperture / iris | Fixed iris |
| Lens aperture (min) | F2.0 |
| Lens minimum object distance (MOD) - Max | 100mm - Infinity |
| Lens mount | M12 |
| Lens dimensions | 14x17mm |
| Lens filter thread | N/A |
| Lens weight (g) | 6 |
| Partnumber old | LM12-5MP-04MM-F2.0-2.5-MD1 |
