MER-1810-21U3C-L, EOL, Replacement is MER2-1220-32U3C
- EOL
- Replacement is MER2-1220-32U3C
EOL | LIMITED STOCK AVAILABLE, Replacement is MER2-1220-32U3C

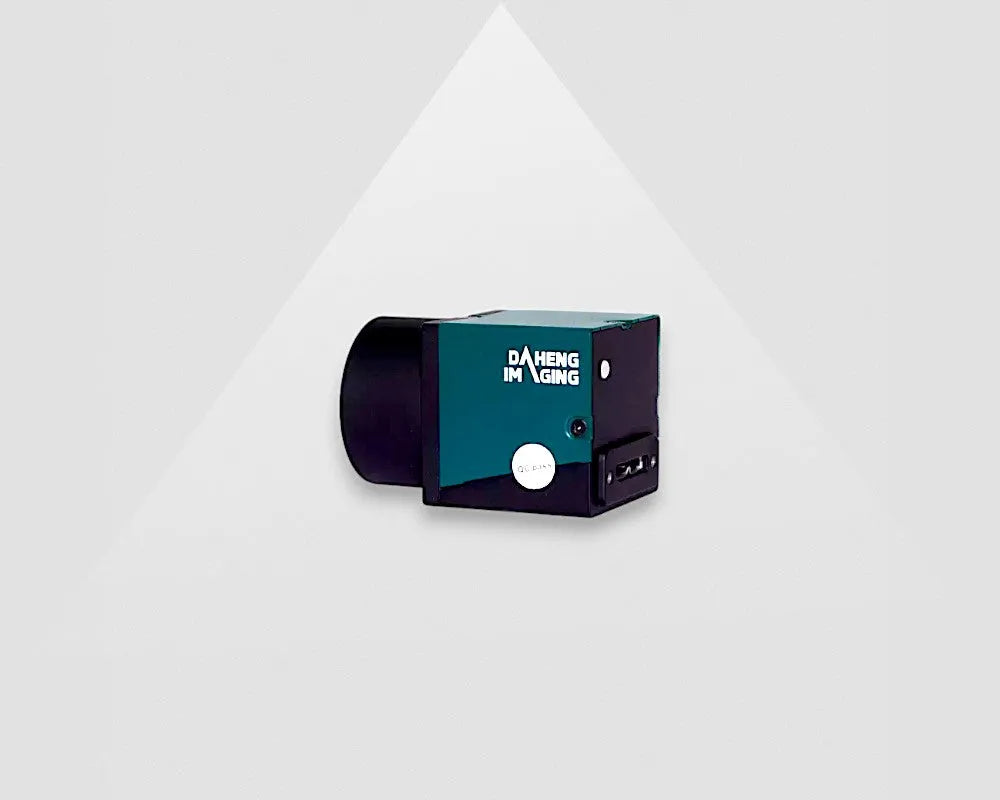

USB3 Vision Camera
The Mercury USB3.0 camera series is an industrial vision camera, with an USB3.0 interface. USB3.0 is an appropriate interface for high resolution and high-speed cameras. Furthermore, this interface is very suitable for embedded platforms such as the Raspberry Pi 3, NVIDIA Jetson TX1, TX2 and Tegra TK1.
This model is interesting for you when your application complies with the following conditions:
- An industrial camera
- Maximum cable length of 4.5 meters
- Only one cable is required to connect the device
- Dimensions are: 29x29x29mm
- Suitable for PC’s and embedded platforms: ARM V7 & ARM V8
- Optional hardware triggering
If more details are required, the manual can be consulted.
Especificaciones
| Número de parte | MER-1810-21U3C-L |
| Interface | USB3 Vision |
| Resolution | 4912x3684 |
| Frame rate (fps) | 21 |
| Pixel size (um) | 1.25 |
| Color/Mono | Color |
| Sensor type | OnSemi AR1820 |
| Sensor size | 1/2.3" |
| Shutter Type | Rolling Shutter |
| Shutter time | 52us~1s |
| ADC Bit Depth | 12bit |
¿Tiene alguna pregunta sobre MER-1810-21U3C-L?
Haga su pregunta a través de
Color Camera
A color camera makes use of a Bayer pattern to produce a colored image. The RGB value of every pixel is being calculated by taking the value of a pixel, in combination with all the values of neighboring pixels. This results into less sharp images than those of a monochrome camera.
Due to the RGB filter on the pixels, every single pixel, considering white light, on average has 66% less photons than a monochrome camera. Which makes a color camera less light sensitive than a monochrome one. To compensate this, the following options are available:
- Increase the amount of light
- Increase the gain
- Increase shutter speed / exposure time
- Select a more light sensitive sensor
- Select a more light sensitive lens
Without I/O
Most applications do not require I/O. Applications that need a software trigger or need continuous imaging, do not need I/O. The USB port of a PC provides both power and data communication to the camera. If a I/O connector is not being implemented, both the material costs and development time will be reduced. The result is that L-version cameras are cheaper than the standard USB camera version.
| Número de parte | MER-1810-21U3C-L |
| Interface | USB3 Vision |
| Resolution | 4912x3684 |
| Frame rate (fps) | 21 |
| Pixel size (um) | 1.25 |
| Color/Mono | Color |
| Sensor type | OnSemi AR1820 |
| Sensor size | 1/2.3" |
| Shutter Type | Rolling Shutter |
| Shutter time | 52us~1s |
| ADC Bit Depth | 12bit |
| Pixel bit depth | 8bit, 12bit |
| Digital Gain | 0dB ~ 20dB |
| Pixel data format | Bayer GR8 / Bayer GR12 |
| Synchronization | Software trigger |
| I/O | N/A |
| Operating temp. | 0°C~45°C |
| Operating humidity | 10%~80% |
| Mount | C |
| Dimensions | 29x29x29mm |
| SDK Software | Windows / Linux / Android |
| Power consumption | <2.7W@5V |
| Weight (g) | 53 |
| Conformity | RoHS, CE, FCC, USB3 Vision, Genicam |
| Megapixel | 18 |
| Partnumber old | MER-1810-21U3C-L |
| SDK Software | Windows / Linux / Android |
