MER2-2000-6GC, IMX183, 5496x3672, 6fps, 1 inch, Rolling shutter, CMOS, Color
- IMX183
- 5496x3672
- 6fps
- 1 inch
- Rolling shutter
- CMOS
- Color
Descrizione
GigE Vision Camera
The Mercury 2 GigE camera series is an industrial vision camera, with a GigE interface. GigE is the most common interface used for cameras in traditional machine vision applications. For now, the camera is only available without Power over Ethernet (PoE). The Mercury 2 series have advanced features like decimation, binning, pixel skipping, reverse and digital shift. This model is interesting for you when your application complies with the following conditions:
- An industrial camera
- Maximum cable length of 100 meters
- Inexpensive and easy installation of cables
- Dimensions are: 29x29x29mm
- Optional hardware triggering
If more details are required, the GigE vision camera manual can be consulted
Specifiche
| Numero di parte | MER2-2000-6GC |
| Interfaccia della telecamera | GigE Vision |
| Risoluzione della telecamera | 5496x3672 |
| Frequenza fotogrammi della telecamera (fps) | 6 |
| Dimensione pixel della telecamera (um) | 2.4 |
| Telecamera Colore/Mono | Color |
| Tipo di sensore della telecamera | Sony IMX183 |
| Dimensioni del sensore della telecamera | 1" |
| Tipo di otturatore della telecamera | Rolling Shutter |
| Tempo di otturazione della telecamera | 31us~1s |
| Profondità di bit dell'ADC della telecamera | 12bit |
MTBF, warranty & product life cycle
Each year, Daheng Imaging produces more than 100.000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is available for at least 7 years. Most cameras have a much longer product life cycle. For more information about our product life cycle management, check this article.
Color industrial camera

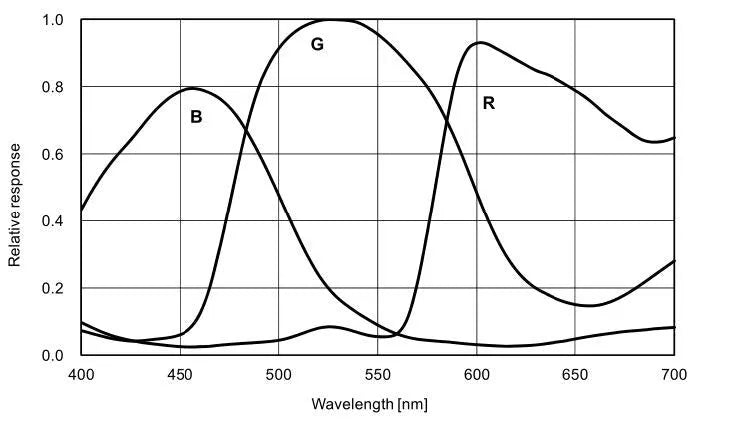

An industrial color camera makes use of a Bayer pattern to produce a colored image. The RGB value of every pixel is being calculated by taking the value of a pixel, in combination with all the values of neighboring pixels. This results into less sharp images than those of a monochrome camera.
Due to the RGB filter on the pixels, every single pixel, considering white light, captures on average 66% less photons than a monochrome camera. Which makes a color camera less light sensitive than a monochrome one. To compensate this, the following options are available: - Increase the amount of light
- Increase the gain
- Increase shutter speed / exposure time
- Select a more light sensitive sensor
- Select a more light sensitive lens
Industrial color cameras are used in applications where color information is important.
Industrial GigE camera without PoE
The power of an industrial GigE camera without PoE is supplied via the I/O connector. The standard GigE camera is less expensive and generates less heat. The camera is more compact than the version with a PoE because less hardware is needed. Connecting an industrial GigE camera without PoE always requires an I/O cable.
| Numero di parte | MER2-2000-6GC |
| Interfaccia della telecamera | GigE Vision |
| Risoluzione della telecamera | 5496x3672 |
| Frequenza fotogrammi della telecamera (fps) | 6 |
| Dimensione pixel della telecamera (um) | 2.4 |
| Telecamera Colore/Mono | Color |
| Tipo di sensore della telecamera | Sony IMX183 |
| Dimensioni del sensore della telecamera | 1" |
| Tipo di otturatore della telecamera | Rolling Shutter |
| Tempo di otturazione della telecamera | 31us~1s |
| Profondità di bit dell'ADC della telecamera | 12bit |
| Profondità pixel della telecamera | 8bit, 12bit |
| Guadagno digitale della telecamera | 0dB~24dB |
| Formato dei dati pixel della telecamera | BayerRG8 / BayerRG12 |
| Sincronizzazione della telecamera | Hardware trigger, software trigger |
| I/O della telecamera | 1 opto-isolated input line and 1 opto isolated output line, 2 GPIO |
| Temperatura di funzionamento della telecamera. | 0°C~45°C |
| Umidità di funzionamento della telecamera | 10%~80% |
| Attacco per obiettivo della telecamera | C |
| Dimensioni della telecamera | 29x29x29mm |
| Telecamera SDK | Windows / Linux / Android |
| Consumo energetico della telecamera | <3W@24VDC |
| Peso della telecamera (g) | 66 |
| Conformità della telecamera | RoHS, CE, FCC, GigE Vision, Genicam |
| Megapixel della telecamera | 20 |
| Numero di parte vecchio | MER2-2000-6GC |
