MER3-321-91G3M-P-SWIR, IMX993, 2080x1544, 91fps, 8.9mm, Global shutter, CMOS, Mono
- IMX993
- 2080x1544
- 91fps
- 8.9mm
- Global shutter
- CMOS
- Mono
2.5GIGE VISION CAMERA IMX993
MER3-321-91G3M-P-SWIR is part of MER3 2.5GigE series. It is an industrial GigE vision camera, with a 2.5GigE interface. GigE is the most common interface used for cameras in traditional machine vision applications. The MER3 series contains high resolutions for global shutter sensors.
This model is interesting for you when your application complies with the following conditions:
- An industrial camera
- Maximum cable length of 100 meters
- Inexpensive and easy installation of cables
- Only one cable is required to connect the device

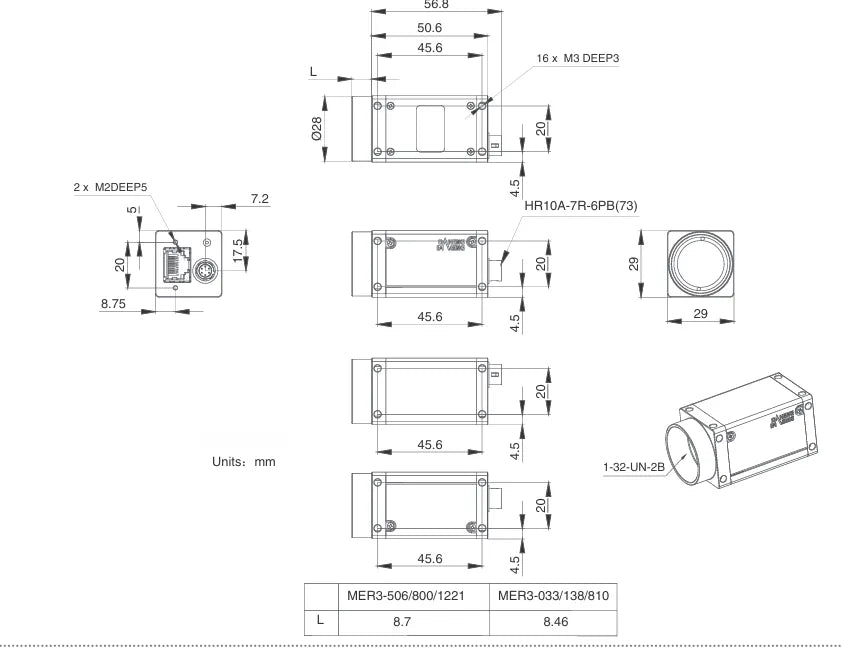

- Dimensions are: 29x29x50.6mm
If more details are required, MER3 2.5GigE manual can be consulted.
Especificaciones
| Número de parte | MER3-321-91G3M-P-SWIR |
| Camera interface | 2.5GigE Vision |
| Camera Resolution | 2080x1544 |
| Camera Frame rate (fps) | 91 |
| Camera pixel size (um) | 3.45 |
| Camera Color/Mono | Mono, SWIR |
| Camera Sensor type | Sony IMX993 |
| Camera sensor size | Diagonal 8.9mm |
| Camera Shutter Type | Global Shutter |
| Camera shutter time | 30μs ~ 1s |
| Camera ADC Bit Depth | 12 bit |
¿Tiene alguna pregunta sobre MER3-321-91G3M-P-SWIR?
Haga su pregunta a través de
Monochrome SWIR Industrial Camera

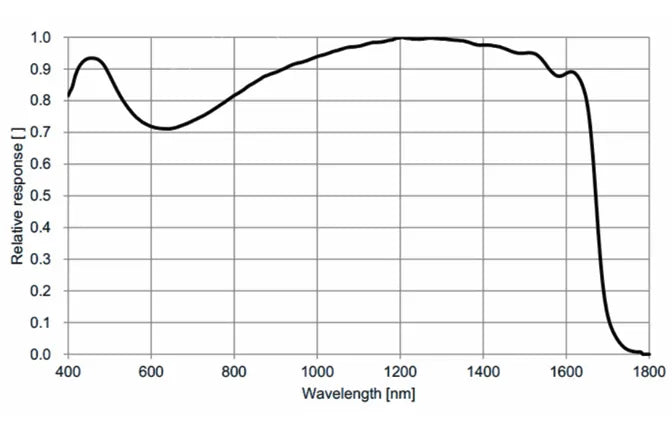

A monochrome SWIR camera is also known as Visible-SWIR camera and can offer advantages in a variety of applications. Typically, light with a wavelength that ranges between 400nm and 780nm is referred to as visible light, while wavelength that ranges between 780nm and 1000µm are referred to as infrared light. Specifically, in the infrared spectrum, the light adjacent to visible light is called Short-Wave Infrared (SWIR). Sony's IMX993 SWIR image sensor is designed to capture light that ranges from the visible to SWIR spectrum. This camera can capture comprehensive image data covering wavelengths from 400nm to 1700nm. The MER3-321-91G3M-P-SWIR can replace the traditional "Visible light camera + SWIR camera" dual camera detection scheme. It reduces the cost, improves the processing speed and is even capable of expanding the detection range.
Monochrome SWIR GigE cameras are useful in a variety of applications:
- In semiconductor inspection, where they can identify defects that may not be present in the visible spectrum.
- Inspection of products in moist conditions, water becomes opaque at 1450nm wavelength due to the light being absorbed by the water.
- Detection of a specific material among other materials. For example: plastics and metals may look similar in the visible light spectrum, but because the reflectance and absorptance of the infrared vary at different wavelengths, the specific material can be detected among others.
POE INDUSTRIAL CAMERA
Power over Ethernet (PoE) for GigE is designed to provide both power and data communication over a standard Ethernet cable. This reduces the amount of cables and installation time, in applications that do not require a hardware trigger or I/O. When I/O is required in an application we advise to supply the camera via a I/O connector. The camera’s power usage is larger when using Power over Ethernet than via the I/O connector. The camera will generate extra heat when using PoE. A PoE GigE camera is larger than the version without PoE. An extra PCB is needed to separate the power of the Ethernet signal, and in order to convert the voltage to a lower voltage. Extra hardware is needed, which makes it more expensive than the version without PoE. The advantage of PoE is that installation is easier because less cables are required.
MTBF, WARRANTY & PRODUCT LIFE CYCLE
Each year, Daheng Imaging produces more than 100.000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is available for at least 7 years. Most cameras have a much longer product life cycle. For more information about our product life cycle management, check this article.
| Número de parte | MER3-321-91G3M-P-SWIR |
| Camera interface | 2.5GigE Vision |
| Camera Resolution | 2080x1544 |
| Camera Frame rate (fps) | 91 |
| Camera pixel size (um) | 3.45 |
| Camera Color/Mono | Mono, SWIR |
| Camera Sensor type | Sony IMX993 |
| Camera sensor size | Diagonal 8.9mm |
| Camera Shutter Type | Global Shutter |
| Camera shutter time | 30μs ~ 1s |
| Camera ADC Bit Depth | 12 bit |
| Camera pixel bit depth | 8 bit, 12 bit |
| Camera Digital Gain | 0dB~24dB |
| Camera pixel data format | Mono8 / Mono12 / Mono12 Packed |
| Camera synchronization | Hardware trigger, software trigger |
| Camera I/O | 1 input with opto-isolated, 2 programmable GPIOs |
| Camera operating temp. | 0°C ~ +50°C |
| Camera operating humidity | 10%~80% |
| Camera lens mount | C |
| Camera dimensions | 29x29x50.6mm |
| Camera SDK Software | 3rd-party software such as HALCON, VisionPro and LabVIEW |
| Camera power consumption | < 5 W @ 12V / PoE |
| Camera weight (g) | 68 |
| Camera Conformity | CE, RoHS, FCC, GigE Vision®, GenICam® |
| Camera Megapixel | 3 |
| Partnumber old | MER3-321-91G3M-P-SWIR |
