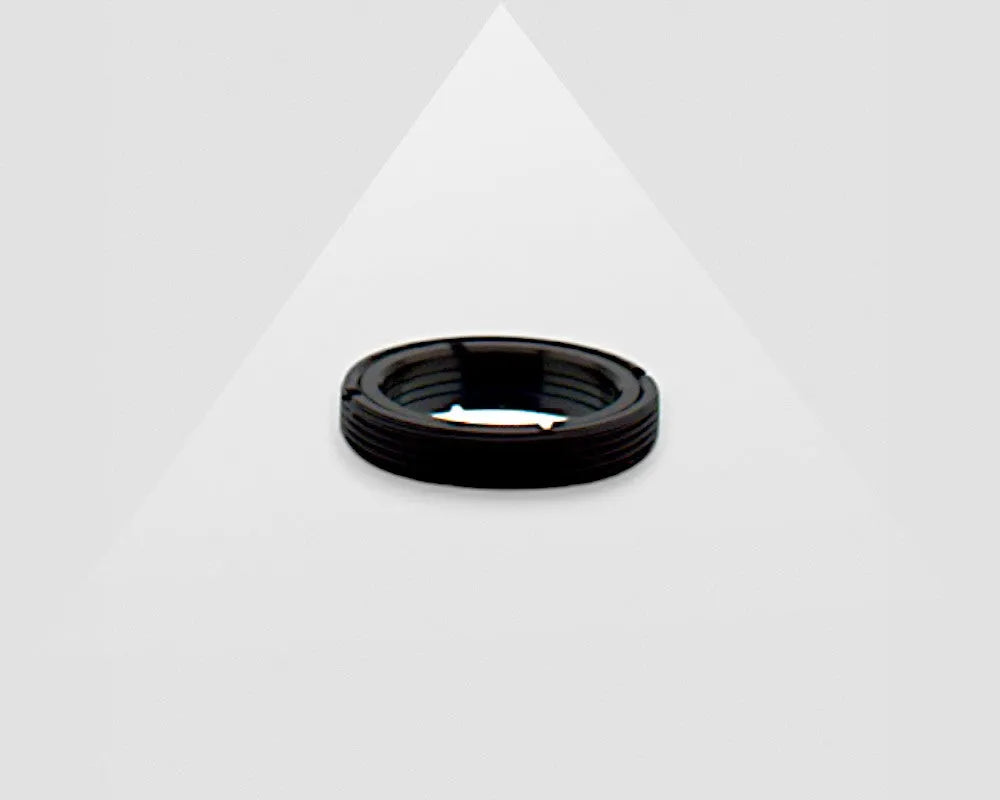

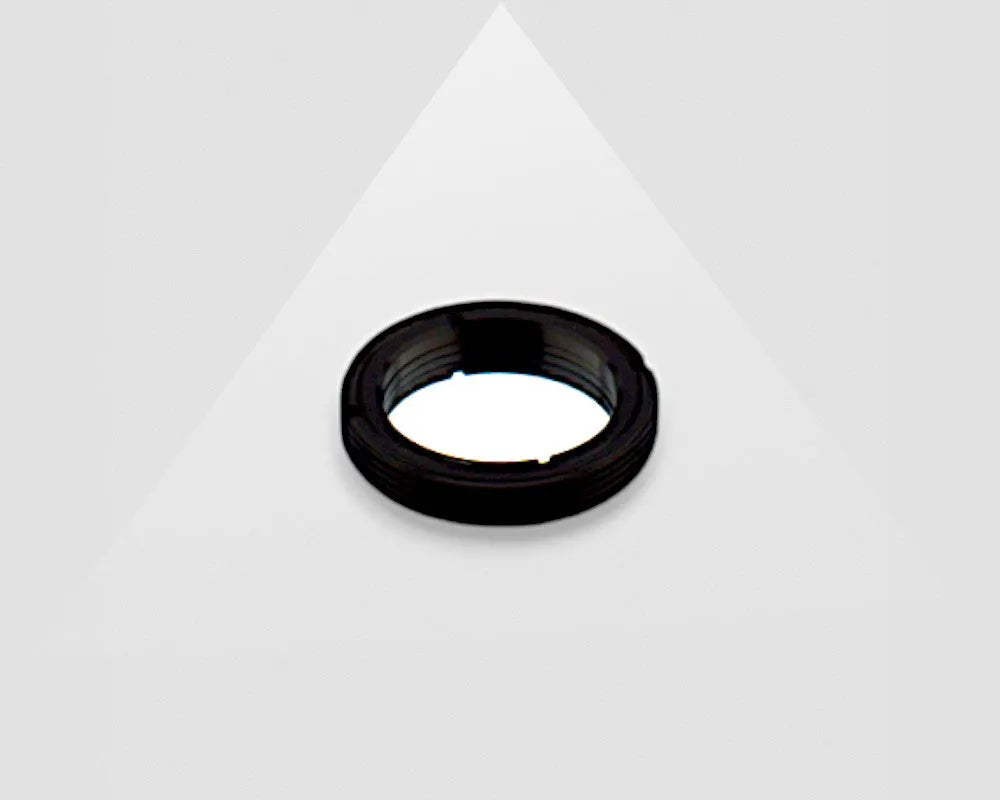

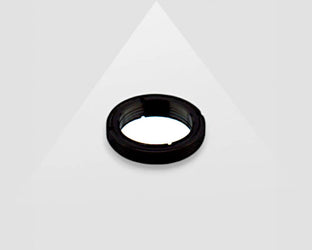

Specification Bandpass filter

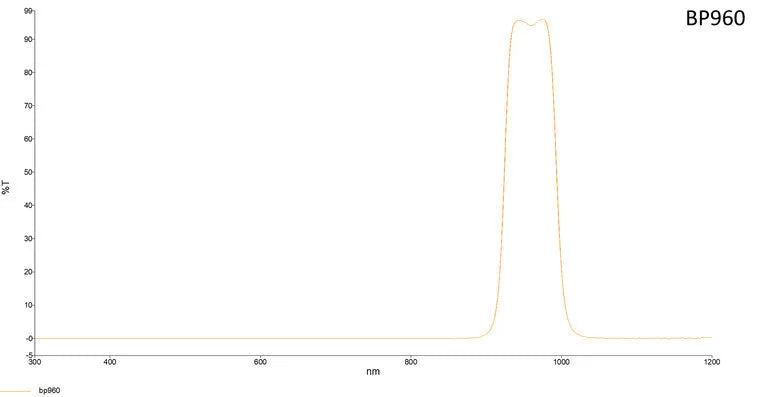

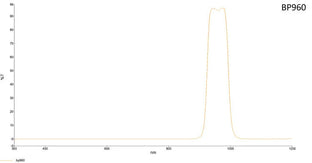

The narrow bandpass filters are used in combination with a machine vision camera and lens. Each machine vision lens has a filter thread to mount a bandpass filter. At the peak wavelength the transmission is above 90%. At the useful wavelength the transmission is above 80%. These bandpass filters are used to remove unwanted light frequencies, resulting in a more stable and sharper image.

Specification
Filter type	Narrow Bandpass
Mounting Thread	C-Mount
Peak wavelength	960nM
Peak wavelength color	IR
Useful wavelength range	930-986nM

Important notes for combination with C-mount lens

To mount this filter you can use a tweezer or our special tool: VA-TOOL-KNIPEX-CMT-FLT
This filter works with all C-mount lenses we offer, but for some lenses a 1mm extension ring is required
A 1mm extension ring is included when ordering this filter.
When using the lens VA-LCM-5MP-35MM-F1.4-015, the filter inside the camera has to be removed first

Important notes for combination with M12 lens

First remove at your own risk the protective filter inside the camera using this tool: VA-TOOL-KNIPEX-CMT-FLT
Mount the C-mount filter
Use our C-mount to m12 adapter: VA-LADAP-LCM-LM12 to mount the m12 lens
This only works if the back focal length of the lens is larger than 5.9mm. The following M12 lenses are tested ok:
-   VA-LM12-12MP-1.85MM-F2.0-018-FISH
-   VA-LM12-12MP-03MM-F2.0-017
-   VA-LM12-5MP-05MM-F2.5-018
-   VA-LM12-10MP-05MM-F2.5-023
-   VA-LM12-5MP-06MM-F2.8-018
-   VA-LM12-5MP-08MM-F2.8-018
-   VA-LM12-5MP-12MM-F2.8-018
-   VA-LM12-10MP-12MM-F2.5-015
-   VA-LM12-5MP-16MM-F2.0-020 (up to working distance of 2 meter)
-   VA-LM12-5MP-25MM-F2.4-020
-   VA-LM12-10MP-25MM-F2.5-015
-   VA-LM12-10MP-35MM-F2.8-015
-   VA-LM12-10MP-50MM-F4.0-015

It does not work with the following M12 lenses:
-   VA-LM12-5MP-02MM-F2.0-030
-   VA-LM12-16MP-03MM-F2.5-023
-   VA-LM12-5MP-03MM-F2.8-020
-   VA-LM12-10MP-16MM-F2.2-015
