VEN-134-90U3M-D, Dual Head, 1280x1024, 90fps, 1/2 inch, Global shutter, CMOS, Mono
VEN-134-90U3M-D
Camera USB3 Vision
VEN-134-90U3M-D
- Dual Head
- 1280x1024
- 90fps
- 1/2 inch
- Global shutter
- CMOS
- Mono
Delivery time: Standard 3-6, Express 0-3 weeks
3 year warranty
Certified by TÜV Rheinland
Description

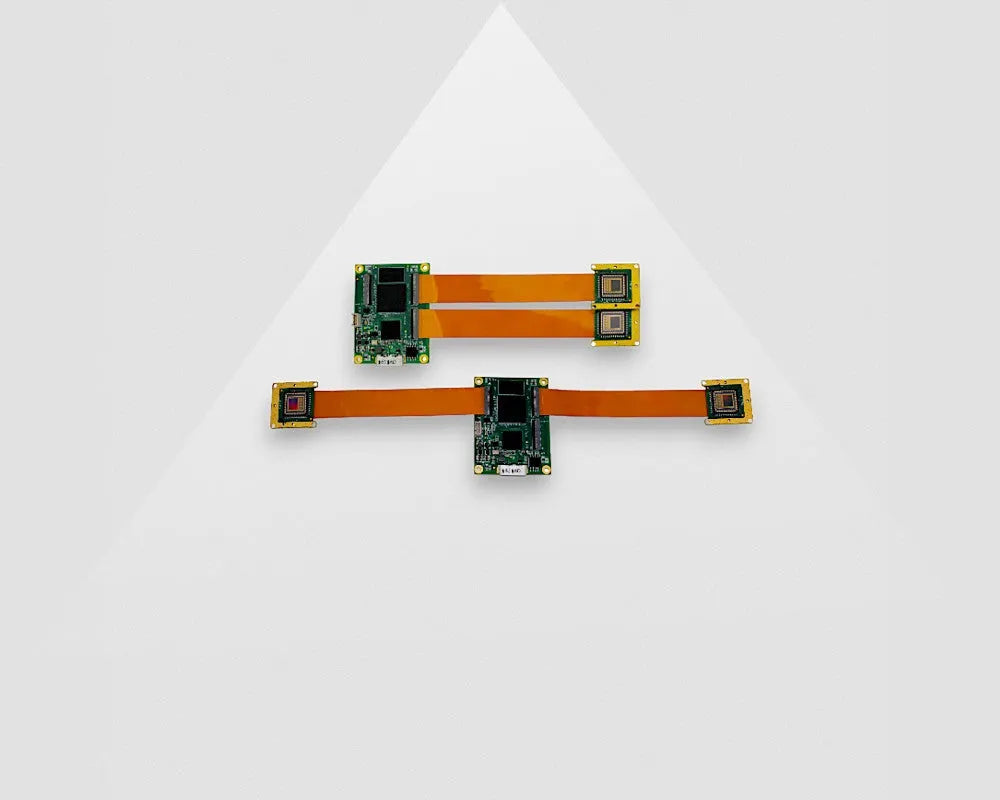

The VEN-134-90U3M-D camera is DAHENG's first board level camera and it is a monochrome USB3.0 Vision board level camera with two Onsemi PYTHON 1300 CMOS sensors. There are three connection ports in the main board and each sensor board can be freely connected to one of three ports by FPC cable, more flexible for instalment and suitable for more applications. Furthermore, the VEN-134-90U3M-D camera is powered over the USB3.0 interface. The camera has a good performance but with a competitive price.
The VEN-134-90U3M-D board level camera is especially designed for binocular vision applications such as handheld 3D scanner, desktop 3D scanner and so on.
- Ultra small and flexible
- 1/2" Global Shutter CMOS sensor
- Compatible with GenICam™ and USB3.0 Vision®
- USB3.0 Interface
- 1.3 Megapixels
- 2 sensor boards
- Very attractive price
The VEN-134-90U3M-D camera is DAHENG's first board level camera and it is a monochrome USB3.0 Vision board level camera with two Onsemi PYTHON 1300 CMOS sensors. There are three connection ports in the main board and each sensor board can be freely connected to one of three ports by FPC cable, more flexible for instalment and suitable for more applications. Furthermore, the VEN-134-90U3M-D camera is powered over the USB3.0 interface. The camera has a good performance but with a competitive price.
The VEN-134-90U3M-D board level camera is especially designed for binocular vision applications such as handheld 3D scanner, desktop 3D scanner and so on.
- Mini USB3.0 interface with 10-bit or 8-bit Mono output
- Programmable AOI, increased frame rate with partial scan
- Gain and exposure programmable
- Adjustable URB
- Software reset function
- Storable user sets
- Hot plugging available
- FPC cables extension can be put in both sides or the same side
- Support embedded operating system Linux , Android and NVIDIA Jetson TX1
- Support hardware trigger and software trigger
- The length of FPC cable can be extended up to 460mm
- Compatible with GenICam⢠and USB3.0 Vision®, can be used in a wide range of 3rd-party software such as HALCON and LabVIEW
- PC with Intel Core 2 Duo, 2.4GHz above and 2GB above memory is recommended
- Free SDK and examples for various programming tools
- Regulations: CE, RoHS, GenICam, USB3.0 Vision
Specifications
| Part number | VEN-134-90U3M-D |
| Interface | USB3 Vision |
| Resolution | 1280x1024 |
| Frame rate (fps) | 90 |
| Pixel size (um) | 4.8 |
| Color/Mono | Mono |
| Sensor type | OnSemi PYTHON 1300 |
| Sensor size | 1/2" |
| Shutter Type | Global Shutter |
| Shutter time | 5us~1s |
| ADC Bit Depth | 10bit |
| Part number | VEN-134-90U3M-D |
| Interface | USB3 Vision |
| Resolution | 1280x1024 |
| Frame rate (fps) | 90 |
| Pixel size (um) | 4.8 |
| Color/Mono | Mono |
| Sensor type | OnSemi PYTHON 1300 |
| Sensor size | 1/2" |
| Shutter Type | Global Shutter |
| Shutter time | 5us~1s |
| ADC Bit Depth | 10bit |
| Pixel bit depth | 8bit, 10bit |
| Digital Gain | 0dB ~ 16dB |
| Pixel data format | Mono8 / Mono10 |
| Synchronization | Hardware trigger, software trigger |
| I/O | 1 opto-isolated input line and 1 opto isolated output line, 2 GPIO |
| Operating temp. | 0°C~45°C |
| Operating humidity | 10%~80% |
| Mount | S/C |
| SDK Software | Windows / Linux / Android |
| Power consumption | <3.5W@5V |
| Conformity | RoHS, CE, FCC, USB3 Vision, Genicam |
| Megapixel | 1 |
| Partnumber old | VEN-134-90U3M-D |
| SDK Software | Windows / Linux / Android |
