MER2-302-37GC-P, IMX265, 2048x1536, 37fps, 1/1.8", Global shutter, CMOS, Color

MER2-302-37GC-P Camera GigE Vision
MER2-302-37GC-P
  • IMX265
  • 2048x1536
  • 37fps
  • 1/1.8"
  • Global shutter
  • CMOS
  • Color
€413,00
Delivery time: Standard 3-6, Express 0-3 weeks
Garantia de 3 anos
Certificado pela TÜV Rheinland

Description

GigE Vision Camera

The Mercury 2 GigE camera series is an industrial vision camera, with a GigE interface. GigE is the most common interface used for cameras in traditional machine vision applications. The camera is available with and without Power over Ethernet (PoE). The Mercury 2 series have advanced features like decimation, binning, pixel skipping, reverse and digital shift. This model is interesting for you when your application complies with the following conditions:
-    An industrial camera
-    Maximum cable length of 100 meters
-    Inexpensive and easy installation of cables
-    Only one cable is required to connect the device (in case of PoE)
-    Dimensions are: 29x29x29mm (without PoE), 29x29x38 mm (with PoE)
-    Optional hardware triggering

If more details are required, the GigE vision camera manual can be consulted

More info

Specifications

Part number MER2-302-37GC-P
Interface GigE Vision
Resolução 2048x1536
Frame rate (fps) 37
Tamanho do pixel (um) 3.45
Cor/Mono Color
Tipo do sensor Sony IMX265
Tamanho do sensor 1/1.8"
Tipo de shutter Global Shutter
Tempo de shutter 52us~1s
Profundidade de Bits ADC 12bit
See all specs

Downloads

Need the MER2-302-37GC-P manual?

Do you have a question about the MER2-302-37GC-P?

Ask us your question via

MTBF, warranty & product life cycle

Each year, Daheng Imaging produces more than 100.000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is available for at least 7 years. Most cameras have a much longer product life cycle. For more information about our product life cycle management, check this article.

Color industrial camera

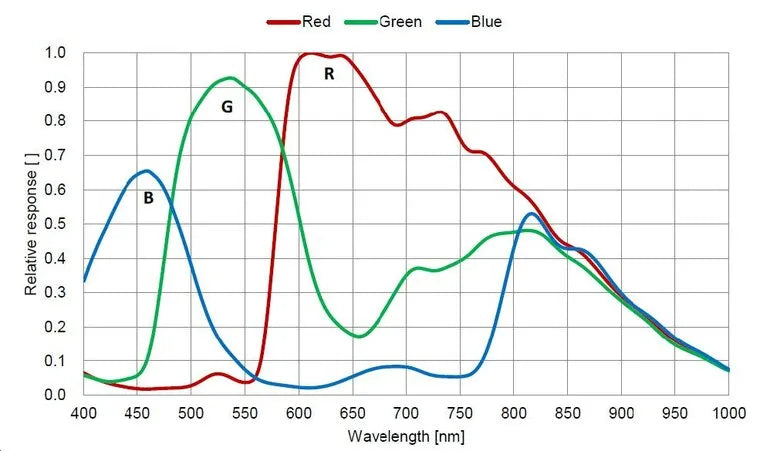

An industrial color camera makes use of a Bayer pattern to produce a colored image. The RGB value of every pixel is being calculated by taking the value of a pixel, in combination with all the values of neighboring pixels. This results into less sharp images than those of a monochrome camera.
Due to the RGB filter on the pixels, every single pixel, considering white light, captures on average 66% less photons than a monochrome camera. Which makes a color camera less light sensitive than a monochrome one. To compensate this, the following options are available: -    Increase the amount of light
-    Increase the gain
-    Increase shutter speed / exposure time
-    Select a more light sensitive sensor
-    Select a more light sensitive lens
Industrial color cameras are used in applications where color information is important.

Industrial GigE camera with PoE

Power over Ethernet (PoE) for GigE is designed to provide both power and data communication over a standard Ethernet cable. This reduces the amount of cables and installation time, in applications that do not require a hardware trigger or I/O. When I/O is required in an application we advise to supply the camera via a I/O connector. The camera’s power usage is larger when using Power over Ethernet than via the I/O connector. The camera will generate extra heat when using PoE. A PoE GigE camera is larger than the version without PoE. An extra PCB is needed to separate the power of the Ethernet signal, and to convert the voltage to a lower voltage. Extra hardware is needed, which makes it more expensive than the version without PoE. The advantage of PoE is that installation is easier because less cables are required.

Part number MER2-302-37GC-P
Interface GigE Vision
Resolução 2048x1536
Frame rate (fps) 37
Tamanho do pixel (um) 3.45
Cor/Mono Color
Tipo do sensor Sony IMX265
Tamanho do sensor 1/1.8"
Tipo de shutter Global Shutter
Tempo de shutter 52us~1s
Profundidade de Bits ADC 12bit
Profundidade de bits do pixel 8bit, 10bit
Digital Gain 0dB~24dB
Formato de dados do pixel Bayer RG8 / Bayer RG10
Sincronização Hardware trigger, software trigger
I/O 1 opto-isolated input line and 1 opto isolated output line, 2 GPIO
Temp. de operação 0°C~45°C
Umidade de operação 10%~80%
Montagem da lente C

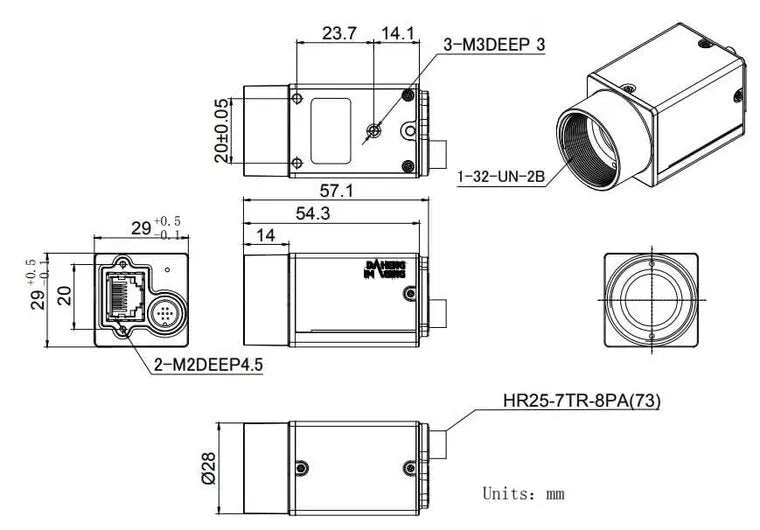

Dimensão 29x29x40.3mm
SDK Software Windows / Linux / Android
Consumo de energia <3W@24V <3.75W@PoE
Peso (g) 75
Conformidade RoHS, CE, FCC, GigE Vision, Genicam
Megapixel 3
Número antigo do produto MER2-302-37GC-P
€413,00
