VA-LM12-5MP-05MM-F2.5-018, LENS M12 5MP 5MM F2.5 1/1.8 inch LOW DISTORTION

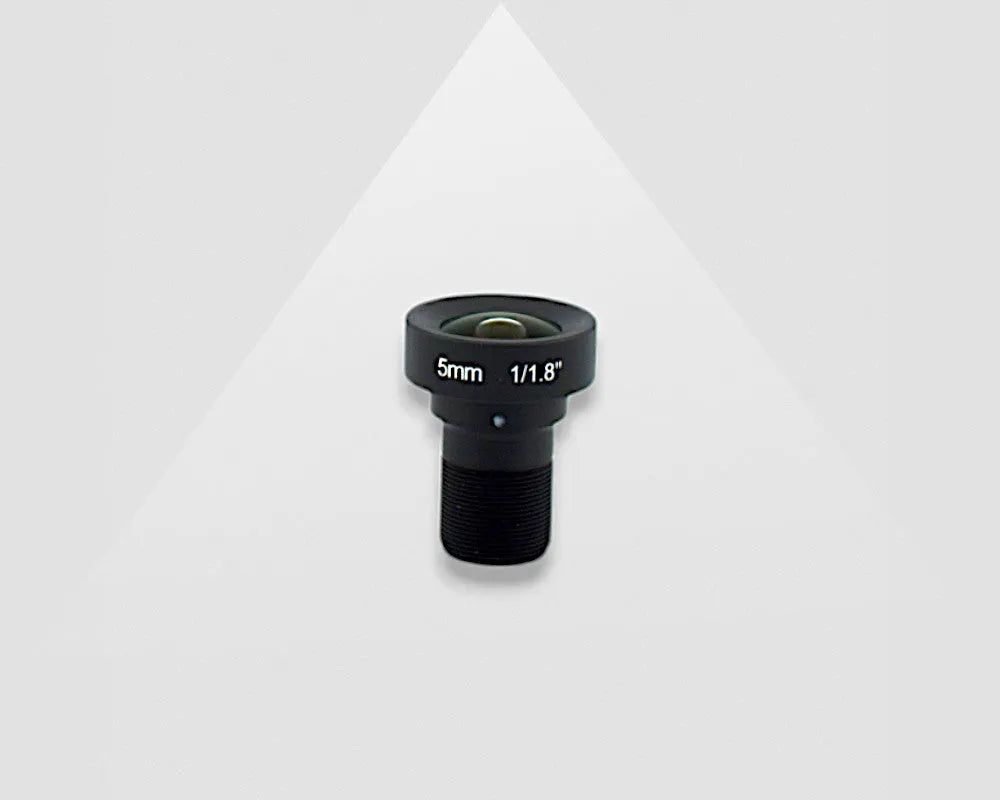

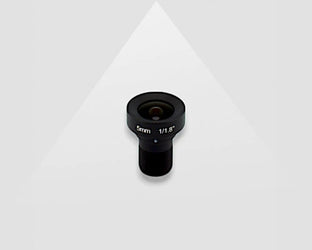

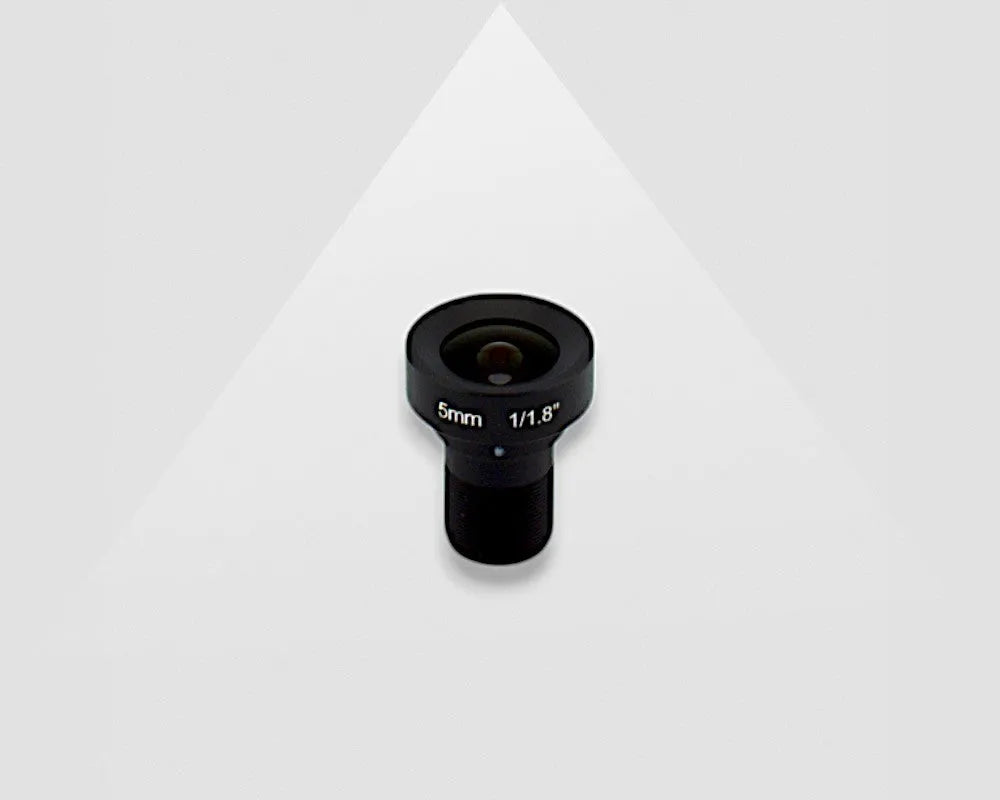

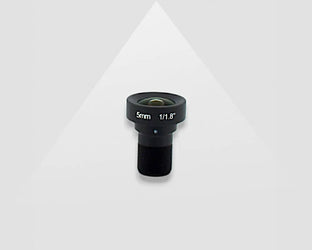

VA-LM12-5MP-05MM-F2.5-018 Lens M12-mount
VA-LM12-5MP-05MM-F2.5-018
  • LENS M12 5MP 5MM F2.5 1/1.8 inch LOW DISTORTION
€14,00
Delivery time: Standard 3-6, Express 0-3 weeks
Qualidade Industrial
Machine Vision

Description

The VA-LM12-5MP LOW DISTORTION series are high resolution (up to 5MP) lenses designed for board level cameras or cs-mount cameras in combination with a CS-mount to m12 adapter with a 1/1.8" sensor or smaller, to create sharp distortion free images. The non distortion in combination with the large opening angle makes this lens series, ideal for high quality imaging in for example medical and life science devices where a short working distance but large field of view is required. The series has multiple focal lengths to assure the right working distance can be met for each application. The lens has a fixed iris and the focus is adjustable by turning the lens.

This is a compressed image to demonstrate image distortion. Original image quality is sharper and more detailed.


Product Life Cycle Management
This specific M12 lens does not comply to our standard product life cycle managed portfolio. This M12 lens is used in security applications and is produced in high volumes. However it can happen that the manufacturer suddenly decides to stop production or will have a new version of the lens that has slightly different specifications. We are not informed upfront when this happens and therefore, we can’t manage the life cycle of this product. Because this lens is used in high volume security applications, the pricing of the lens is very attractive. When you design this lens into your product, we recommend that you buy enough stock for the upcoming years, so that the lack of product life cycle management for this product is not an issue for you.
For your information, we do have M12 lenses that do comply to our product life cycle managed portfolio, but these lenses are more expensive.



More info

Specifications

Part number VA-LM12-5MP-05MM-F2.5-018
Resolução (megapixel) 5
Formato da imagem / círculo 1/1.8"
Distância focal (mm) 5
Abertura da lente / iris Fixed iris
Lens aperture (min) F2.5
Mínima distância do objeto (MOD) - Max 300mm - Infinity
Montagem M12
Dimensão 20x25.2mm
Distorção < 4.6%
Rosca do filtro N/A
See all specs

Downloads

Need the VA-LM12-5MP-05MM-F2.5-018 3D stepfiles, MTF chart or lens manual?

Do you have a question about the VA-LM12-5MP-05MM-F2.5-018?

Ask us your question via

Part number VA-LM12-5MP-05MM-F2.5-018
Resolução (megapixel) 5
Formato da imagem / círculo 1/1.8"
Distância focal (mm) 5
Abertura da lente / iris Fixed iris
Lens aperture (min) F2.5
Mínima distância do objeto (MOD) - Max 300mm - Infinity
Montagem M12
Dimensão 20x25.2mm
Distorção < 4.6%
Rosca do filtro N/A
Peso (g) 10
Número antigo do produto LM12-5MP-05MM-F2.5-1.8-LD1
€14,00
