Cameras with Sony IMX226 Sensor: Specs, Prices & Life Cycle
This article contains the main specifications of Sony IMX226 image sensor. Additionally, the article explores how the sensor can be integrated into different camera interfaces such as GigE and USB3, depending on the desired features. Finally, it provides a brief overview of selecting compatible industrial lenses to maximize the IMX226's performance.
Download here the machine vision camera manual that includes the specifications of our cameras with Sony IMX226, the spectral response graphs and mechanical drawings.
Sony IMX226 image sensor specifications
The Sony IMX226 is a high-performance CMOS image sensor designed for industrial and machine
vision applications. It features a resolution of 12.2 megapixels (4024x3036), a pixel size of 1.85μm, and a rolling shutter type. The IMX226 can achieve a maximum frame rate of 32fps at full resolution for USB3 interface and 9 fps for GigE interface. The Sony IMX226 image sensor belongs to the Sony Starvis Generation. On the same generation you can find models with resolutions 5MP (IMX335), and 6.3MP (IMX178).
Machine vision camera prices of Sony IMX226
We have developed a range of industrial cameras based on the Sony IMX226 sensor. These cameras offer high image quality, fast frame rates, and reliable performance in demanding environments. At VA Imaging, we pride ourselves on providing exceptional value to our customers. Our cameras
with IMX226 sensor are competitively priced thanks to our efficient operations and commitment to maintaining low margins. We stand behind the quality of our products with a comprehensive 3-year warranty on all industrial cameras, including our cameras with IMX226 sensor. Our customers also benefit from our exceptional technical support, extensive product portfolio, and quick delivery
times. These factors, combined with our competitive pricing, make VA Imaging an ideal choice for businesses seeking high-performance, cost-effective machine vision solutions.
Selected Sony IMX cameras
![MER2-1220-32U3C-W90, IMX226, 4024x3036, 32fps, 1/1.7", Rolling shutter, right angle (90), Color](http://va-imaging.com/cdn/shop/files/MER2-90D-4-Vision-Camera.jpg?v=1728284652&width=500 "MER2-1220-32U3C-W90, IMX226, 4024x3036, 32fps, 1/1.7", Rolling shutter, right angle (90), Color")
![MER2-1220-32U3C-W90, IMX226, 4024x3036, 32fps, 1/1.7", Rolling shutter, right angle (90), Color](http://va-imaging.com/cdn/shop/files/MER2-90D-3-Vision-Camera.jpg?v=1728284652&width=500 "MER2-1220-32U3C-W90, IMX226, 4024x3036, 32fps, 1/1.7", Rolling shutter, right angle (90), Color")
Sony IMX226 sensor for GigE vision camera
The IMX226 sensor is well-suited for GigE cameras, which provide a robust and reliable interface for industrial applications. GigE cameras offer long cable lengths, up to 100 meters, making them ideal for distributed systems and applications where the camera needs to be located away from the host computer. Our GigE cameras models with IMX226 are MER2-1220-9GM, MER2-1220-9GM-P, MER2-1220-9GC and MER2-1220-9GC-P. For our GigE cameras, you can download the camera manual, free SDK and 3D files in our Download page. This 6.3 MP camera offers 18 frames per second.
Sony IMX226 sensor for USB3 vision camera
USB3 cameras utilizing the IMX226 sensor provide a compact and cost-effective solution for industrial imaging. The USB3 interface offers high-speed data transfer and easy integration with a wide range of host systems, making it a popular choice for machine vision and automation applications. Our USB3 cameras with IMX226 are MER2-1220-32U3M, MER2-1220-32U3M-W90, MER2-1220-32U3C, and MER2-1220-32U3C-W90. They offer a frame rate of 60 fps. For our USB3 cameras, you can download the camera manual, free SDK and 3D files in our Download page.
Sony IMX226 sensor for industrial board-level camera
Board-level cameras based on the IMX226 sensor are designed for integration into custom systems and equipment. These compact, modular cameras offer flexibility in terms of lens selection and mounting options, making them suitable for a variety of industrial applications where space is limited. Our board level cameras with IMX226 sensor are VEN-1220-32U3M-FPC and VEN-1220-32U3C-FPC. With an USB3 interface, they also offer a frame rate of 60 fps. For our board-level cameras, you can download the camera manual, free SDK and 3D files in our Download page.
Industrial lens for Sony IMX226 camera
When selecting an industrial lens for the IMX226 sensor, it is important to consider factors such as the sensor size, resolution, and the specific application requirements. High-quality lenses designed for machine vision applications can help maximize the performance of the IMX226 sensor and ensure optimal image quality. With a pixel size of 2μm and resolving power of 250 lp/mm our industrial C-mount lenses from 1/1.7” 12MP series are ideal to combine with IMX226.
Do you need help choosing the right lens? You can use our Lens calculator tool. Additionally, feel free to fill out the short form below, and our experts will be happy to recommend the most suitable
camera-lens setup for your specific needs!
Questions? Contact us!
Spectral response of IMX226 monochrome sensors

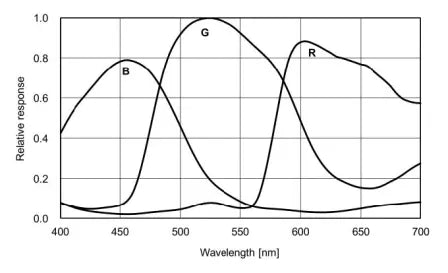

Spectral response of IMX226 color sensors
Product life cycle of Sony IMX226
The IMX226 sensor is a mature sensor with a proven track record in the machine vision
market. This means it has been around for a significant amount of time and has a well-established reputation for performance and reliability. Because of this maturity, you can be confident that the IMX226 sensor will deliver consistent image quality and operate reliably for years to come.
Here at VA Imaging, we understand the importance of choosing the right sensor for your machine vision application. That's why we are proud to offer a wide range of cameras that utilize the IMX226 sensor. In fact, we produce tens of thousands of cameras per year that use sensors up to 12.2 megapixels, with the IMX226 being a popular choice. This high production volume speaks to the versatility and effectiveness of this sensor in a wide variety of machine vision tasks.
In conclusion, the IMX226 sensor's maturity, proven track record, and high production volume make it a reliable and cost-effective option for many machine vision applications. If you are considering a camera with the IMX226 sensor, you can be assured that you are making a solid investment.
