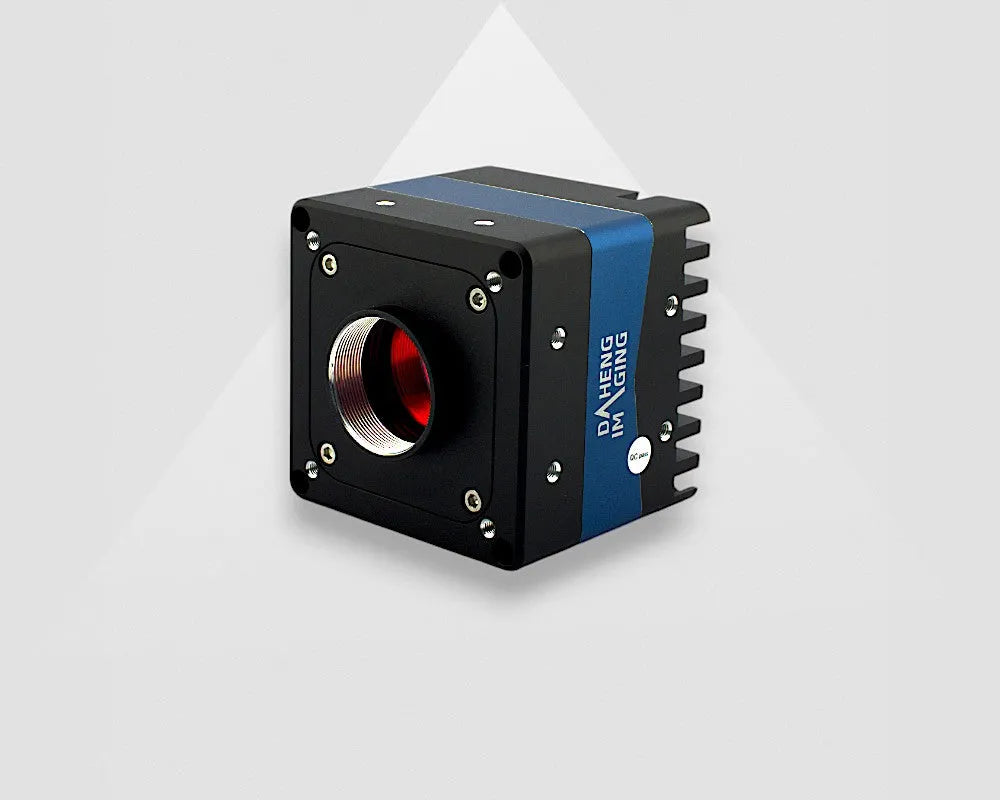

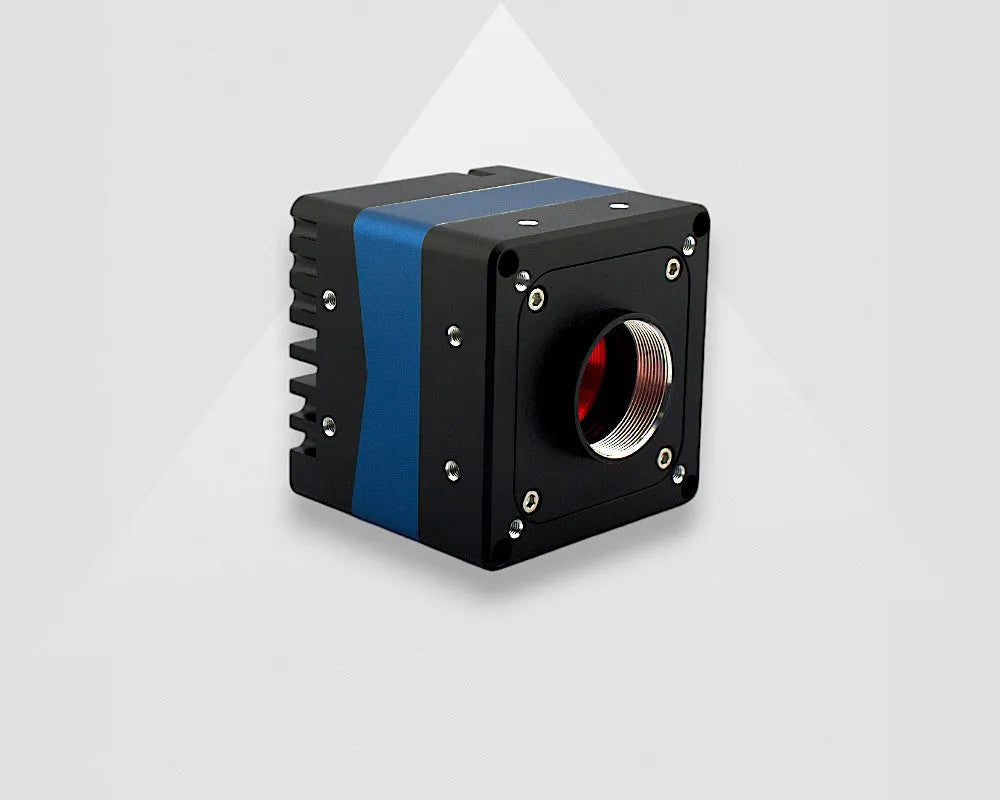

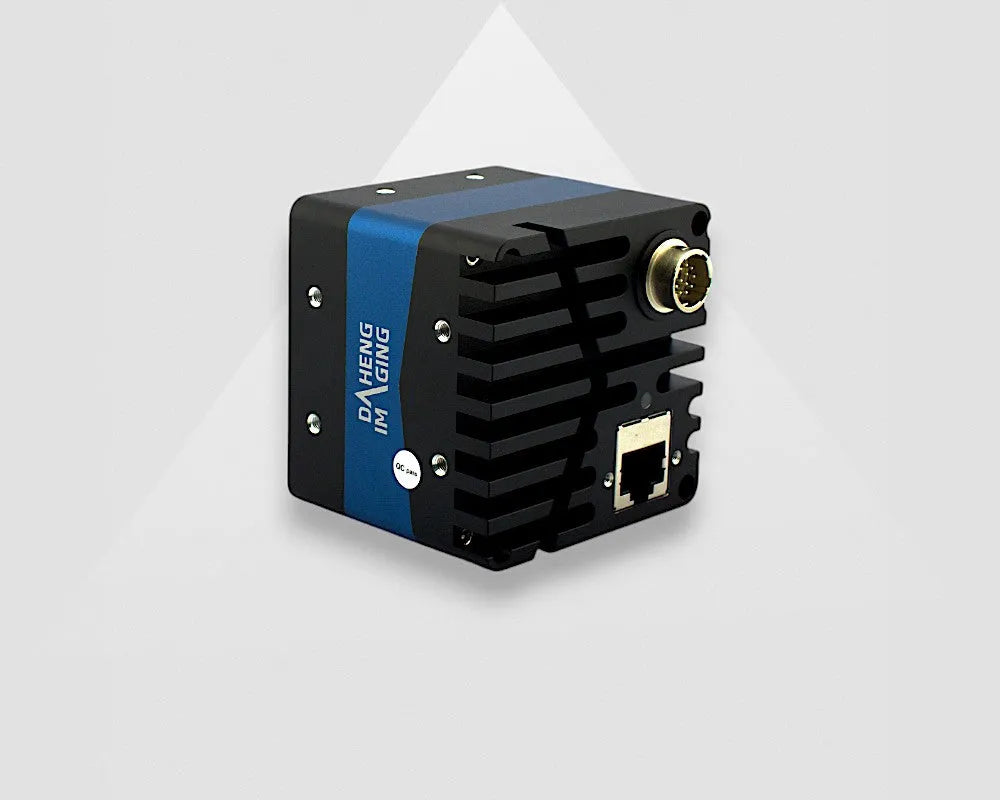

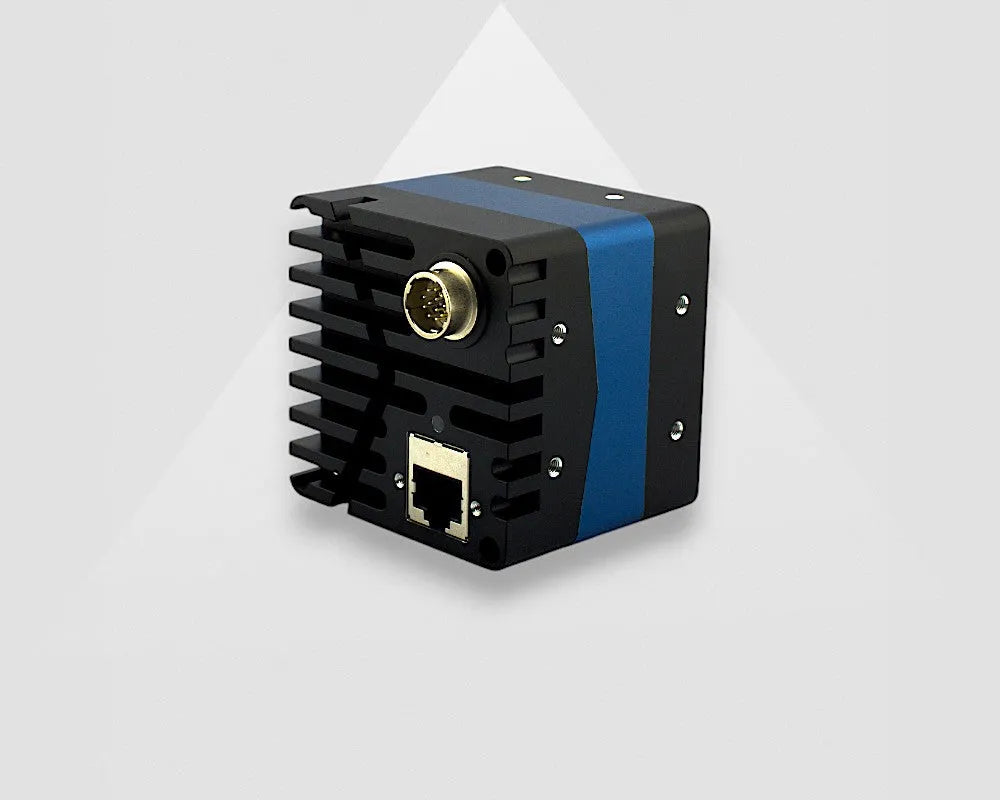

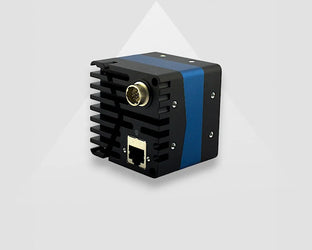

10GIGE VISION CAMERA

The Mars 10GigE series is an industrial 10GigE vision camera, with a 10GigE interface. This is the best interface for high resolution and / or, high speed imaging where cable length is more than 5 meters. 10GigE is 10x faster than a normal GigE ethernet camera and 2x faster than USB3.
This 10 GigE camera model is interesting for you when your application complies with the following conditions:

An industrial highspeed or highresolution camera
Maximum cable length of 100 meters using cat6a or higher cable
Inexpensive and easy installation of cables
Only one cable is required to connect the camera

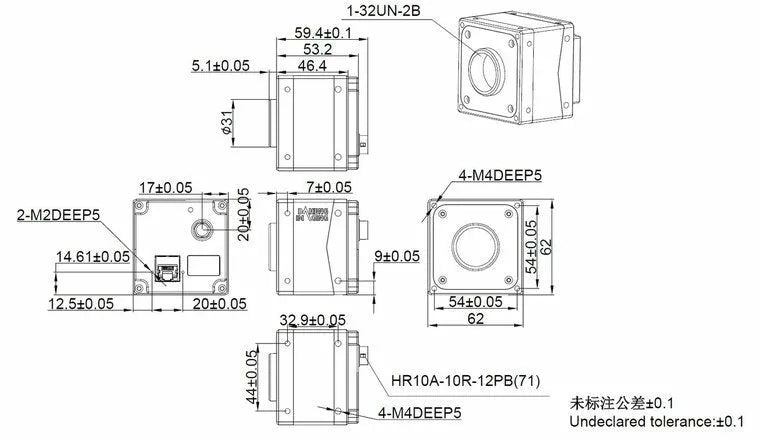

Dimensions are: 60x60x54mm

The camera requires a 10GigE framegrabber. If your computer does not have a 10GigE port, we recommend this framegrabber VA-PCIe4-10GP-1. If more details are required, the manual can be consulted.

INDUSTRIAL 10GIGE CAMERA WITHOUT POE

The 10GigE camera series does NOT have Power over Ethernet (PoE). Make sure to order a I/O cable suitable for MARS cameras to power the camera.

Monochrome Industrial Camera

A black and white camera, also known as a monochrome camera, offers advantages in a variety of applications. While the market for security and telephony focuses on color cameras, the industrial market utilizes the advantages of black and white cameras. Black and white cameras are very light sensitive, provide sharp images and reduces data compared to color. This makes it ideal for the processing of images. By selecting the right color as your light source and lens filter, a black and white camera can utilize the product its characteristics. Hereby men can create images with a large contrast and a high resolution.

MTBF, WARRANTY & PRODUCT LIFE CYCLE

Each year, Daheng Imaging produces more than 100.000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is available for at least 7 years. Most cameras have a much longer product life cycle. For more information about our product life cycle management, check this article.
