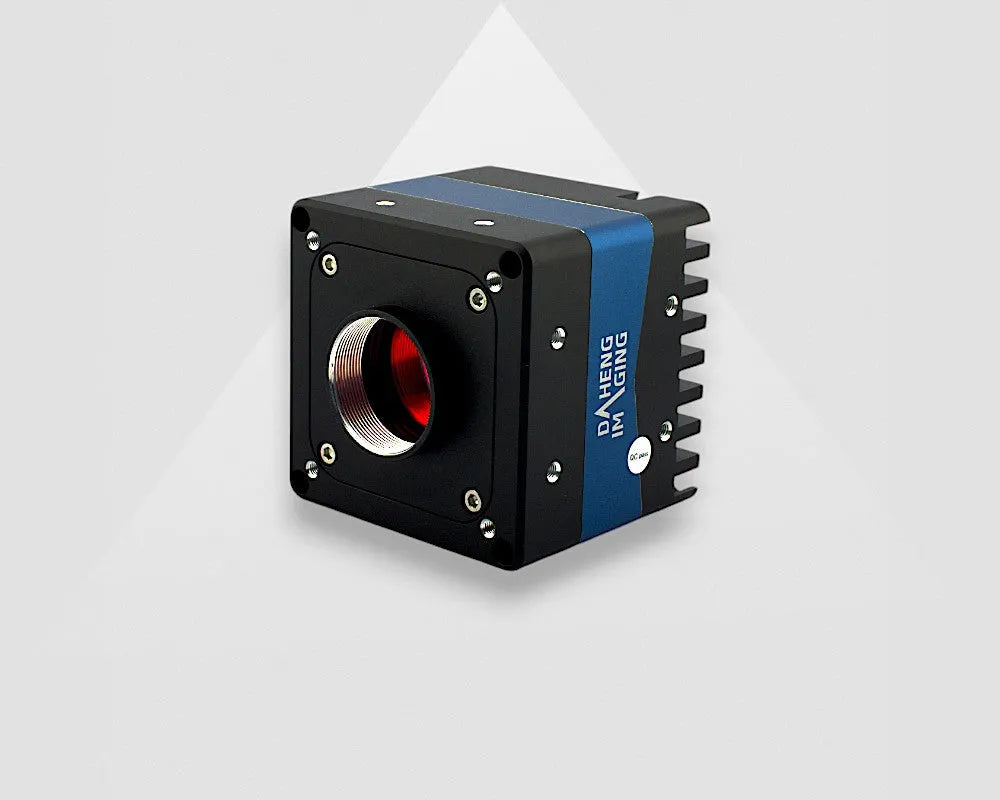

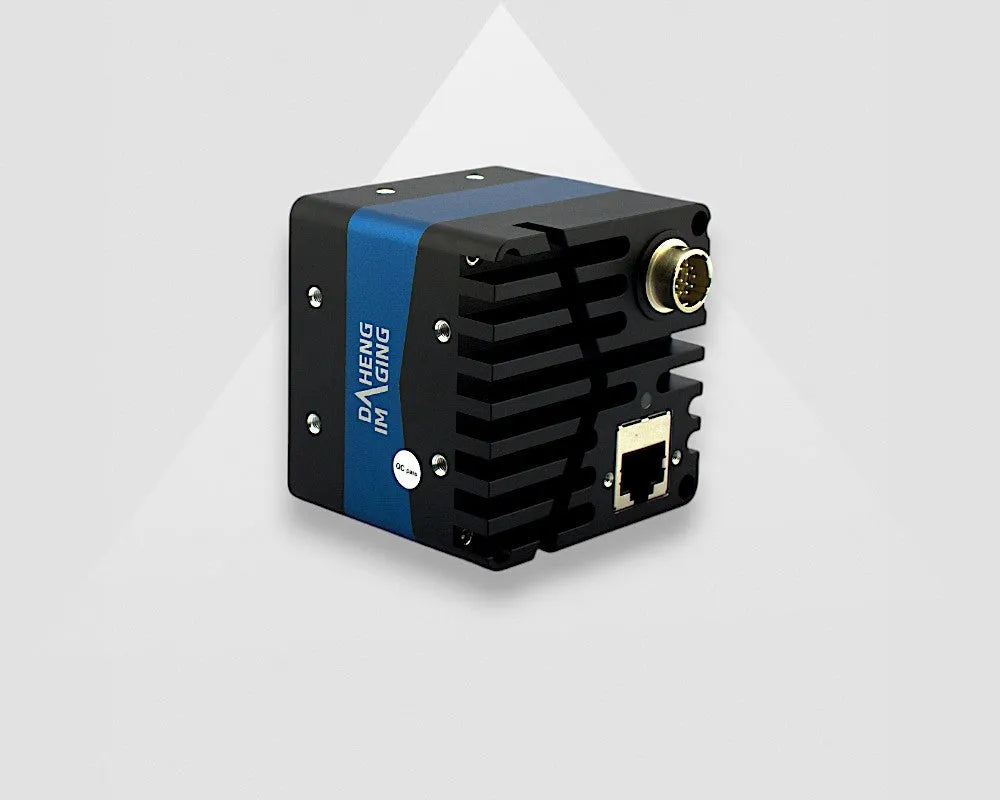

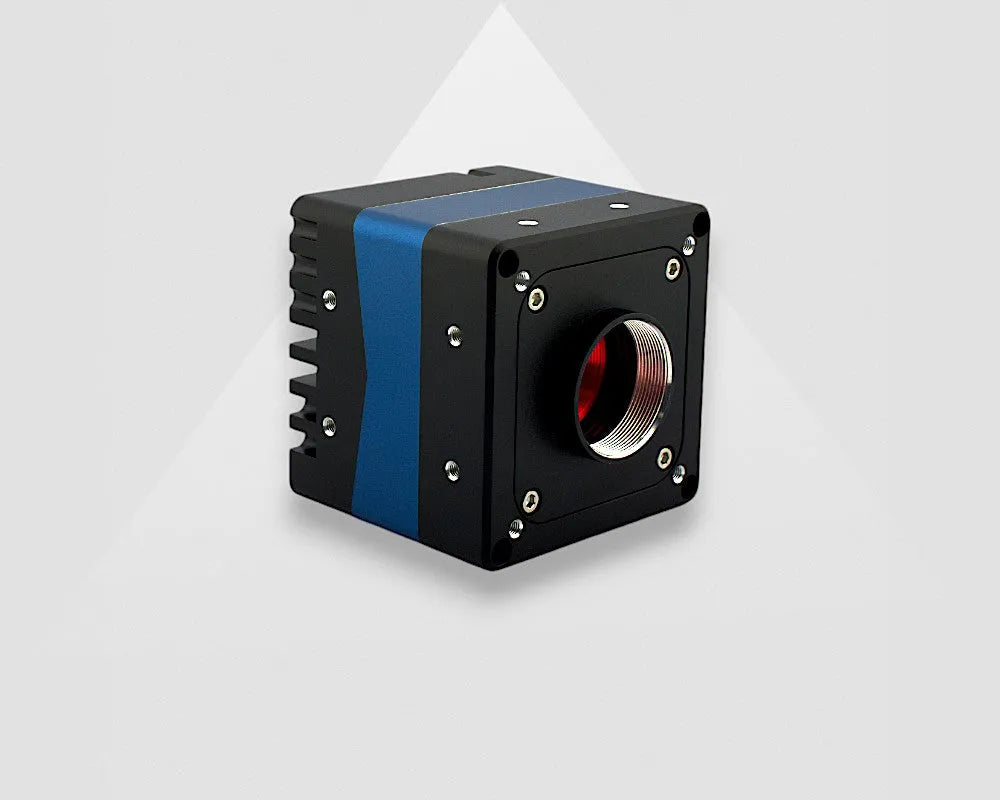

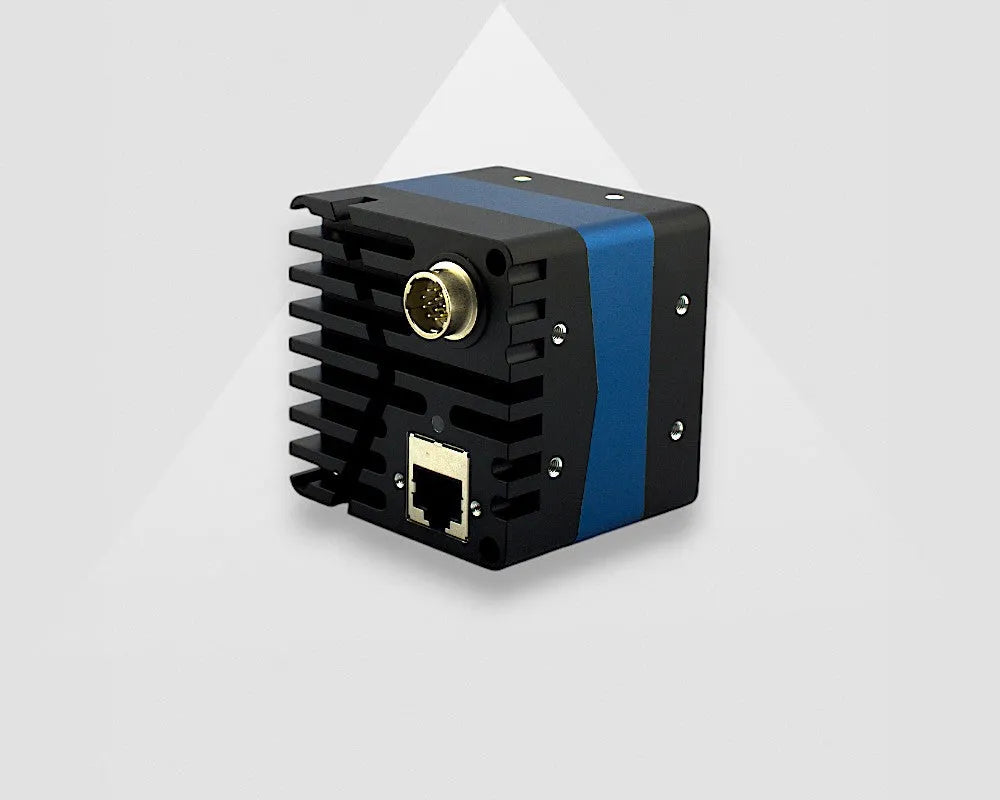

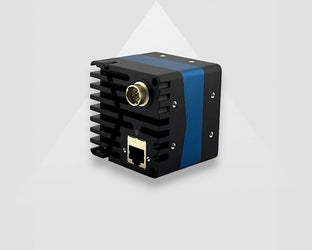

MARS-2621-42GTM-NIR, GMAX0505, 5120x5120, 42fps, 1.1 inch, Global shutter, CMOS, Mono, NIR
- GMAX0505
- 5120x5120
- 42fps
- 1.1 inch
- Global shutter
- CMOS
- Mono
- NIR
10GIGE VISION CAMERA
The Mars 10GigE series is an industrial 10GigE vision camera, with a 10GigE interface. This is the best interface for high resolution and / or, high speed imaging where cable length is more than 5 meters. 10GigE is 10x faster than a normal GigE ethernet camera and 2x faster than USB3.
This 10 GigE camera model is interesting for you when your application complies with the following conditions:
- An industrial highspeed or highresolution camera
- Maximum cable length of 100 meters using cat6a or higher cable
- Inexpensive and easy installation of cables
- Only one cable is required to connect the camera
- Dimensions are: 60x60x54mm
The camera requires a 10GigE framegrabber. If your computer does not have a 10GigE port, we recommend this framegrabber VA-PCIe4-10GP-1. If more details are required, the manual can be consulted.
More infoSpecifications
| Part number | MARS-2621-42GTM-NIR |
| Interface | 10GigE Vision |
| Resolution | 5120x5120 |
| Frame rate (fps) | 42 |
| Pixel size (um) | 2.5 |
| Color/Mono | Monochrome NIR |
| Sensor type | GMAX0505 |
| Sensor size | 1.1" |
| Shutter Type | Global Shutter |
| Shutter time | 14us~1s |
| ADC Bit Depth | TBD |
INDUSTRIAL 10GIGE CAMERA WITHOUT POE
The 10GigE camera series does NOT have Power over Ethernet (PoE). Make sure to order a I/O cable suitable for MARS cameras to power the camera.
Monochrome Industrial Camera
A black and white camera, also known as a monochrome camera, offers advantages in a variety of applications. While the market for security and telephony focuses on color cameras, the industrial market utilizes the advantages of black and white cameras. Black and white cameras are very light sensitive, provide sharp images and reduces data compared to color. This makes it ideal for the processing of images. By selecting the optimal lighting color and lens filter, product characteristics can be highlighted. Enabling the creation of high-resolution images with high contrast using a monochrome cameras.
NIR

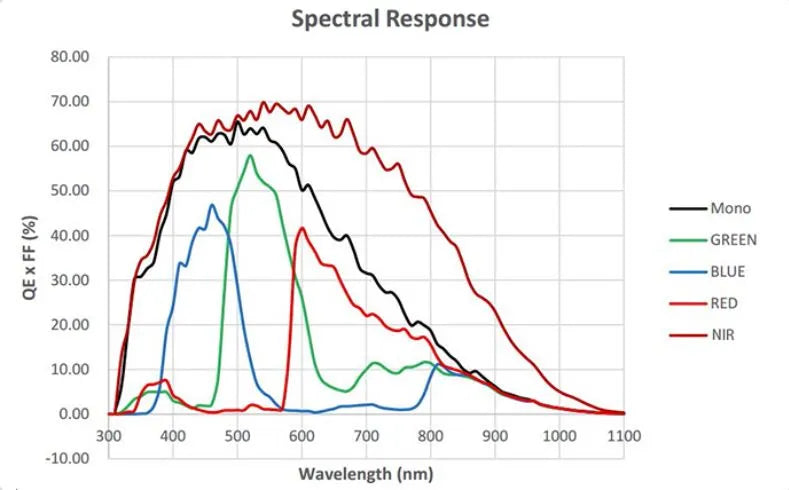

NIR cameras are monochrome sensors that are specially developed for the Near Infrared Region. These are the wavelengths from 800-1000nM. Normal IR LEDs operate at 850nM or 930nM. The photon sensitive parts of the pixel of a NIR camera are deeper than of the standard monochrome camera, therefore they are better able to catch the photons of the higher wave lengths (800-1000nM). NIR sensors are more expensive than standard monochrome camera’s. These cameras are ideal for low light applications, like intelligent transport systems (ITS) and medical imaging.
MTBF, WARRANTY & PRODUCT LIFE CYCLE
Each year, Daheng Imaging produces more than 100.000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is available for at least 7 years. Most cameras have a much longer product life cycle. For more information about our product life cycle management, check this article.
| Part number | MARS-2621-42GTM-NIR |
| Interface | 10GigE Vision |
| Resolution | 5120x5120 |
| Frame rate (fps) | 42 |
| Pixel size (um) | 2.5 |
| Color/Mono | Monochrome NIR |
| Sensor type | GMAX0505 |
| Sensor size | 1.1" |
| Shutter Type | Global Shutter |
| Shutter time | 14us~1s |
| ADC Bit Depth | TBD |
| Pixel bit depth | TBD |
| Digital Gain | TBD |
| Pixel data format | TBD |
| Synchronization | Hardware trigger, software trigger |
| I/O | 1 opto-isolated input line and 1 opto isolated output line, 2 GPIO |
| Operating temp. | 0°C~50°C |
| Operating humidity | 10%~80% |
| Mount | C |

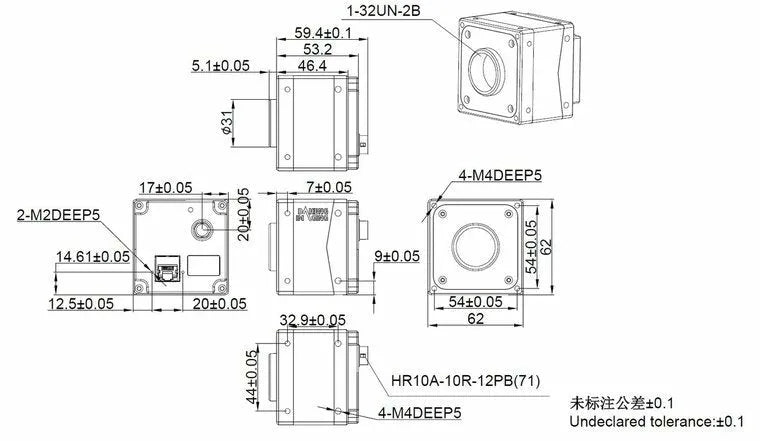

| Dimensions | 60x60x54mm |
| SDK Software | Windows / Linux / Android |
| Power consumption | <10W @24VDC |
| Weight (g) | 320 |
| Conformity | CE, FCC, RoHS, 10GigE-Vision, GenICam |
| Megapixel | 26 |
| Partnumber old | MARS-2621-42GTM-NIR |
| SDK Software | Windows / Linux / Android |
