10GIGE VISION CAMERA

The Mars 10GigE series is an industrial 10GigE vision camera, with a 10GigE interface. This is the best interface for high resolution and / or, high speed imaging where cable length is more than 5 meters. 10GigE is 10x faster than a normal GigE ethernet camera and 2x faster than USB3.
This 10 GigE camera model is interesting for you when your application complies with the following conditions:

An industrial highspeed or highresolution camera
Maximum cable length of 100 meters using cat6a or higher cable
Inexpensive and easy installation of cables
Only one cable is required to connect the camera

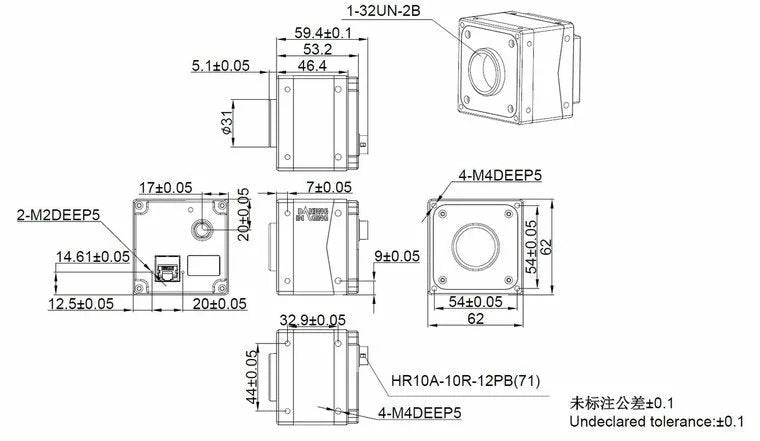

Dimensions are: 60x60x54mm

The camera requires a 10GigE framegrabber. If your computer does not have a 10GigE port, we recommend this framegrabber VA-PCIe4-10GP-1. If more details are required, the manual can be consulted.

INDUSTRIAL 10GIGE CAMERA WITHOUT POE

The 10GigE camera series does NOT have Power over Ethernet (PoE). Make sure to order a I/O cable suitable for MARS cameras to power the camera.

COLOR INDUSTRIAL CAMERA

An industrial color camera makes use of a Bayer pattern to produce a colored image. The RGB value of every pixel is being calculated by taking the value of a pixel, in combination with all the values of neighboring pixels. This results into less sharp images than those of a monochrome camera.

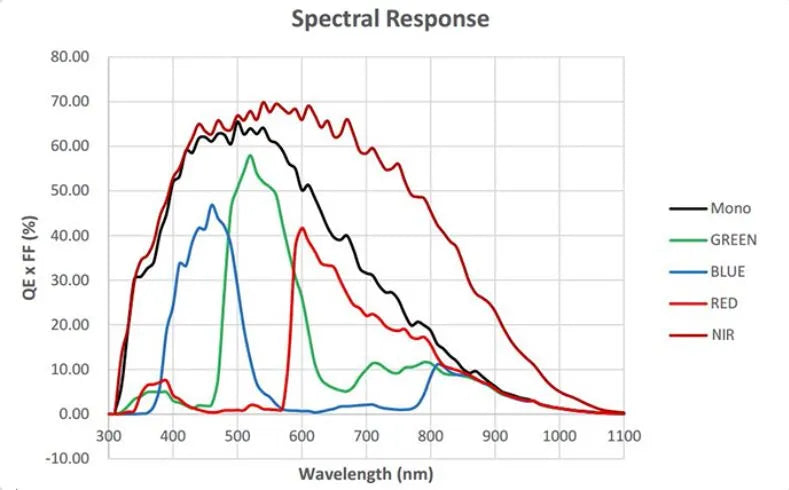

Due to the RGB filter on the pixels, every single pixel, considering white light, captures on average 66% less photons than a monochrome camera. Which makes a color camera less light sensitive than a monochrome one. To compensate this, the following options are available:

Increase the amount of light
Increase the gain
Increase shutter speed / exposure time
Select a more light sensitive sensor
Select a more light sensitive lens

Industrial color cameras are used in applications where color information is important.

MTBF, WARRANTY & PRODUCT LIFE CYCLE

Each year, Daheng Imaging produces more than 100.000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is available for at least 7 years. Most cameras have a much longer product life cycle. For more information about our product life cycle management, check this article.
