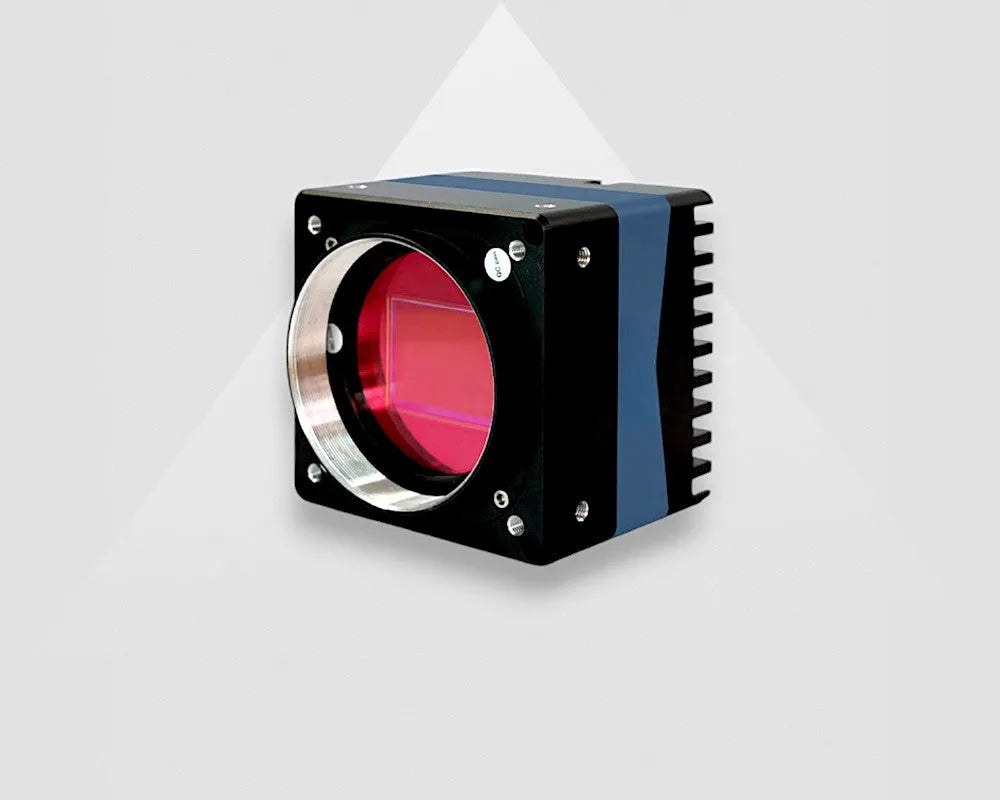

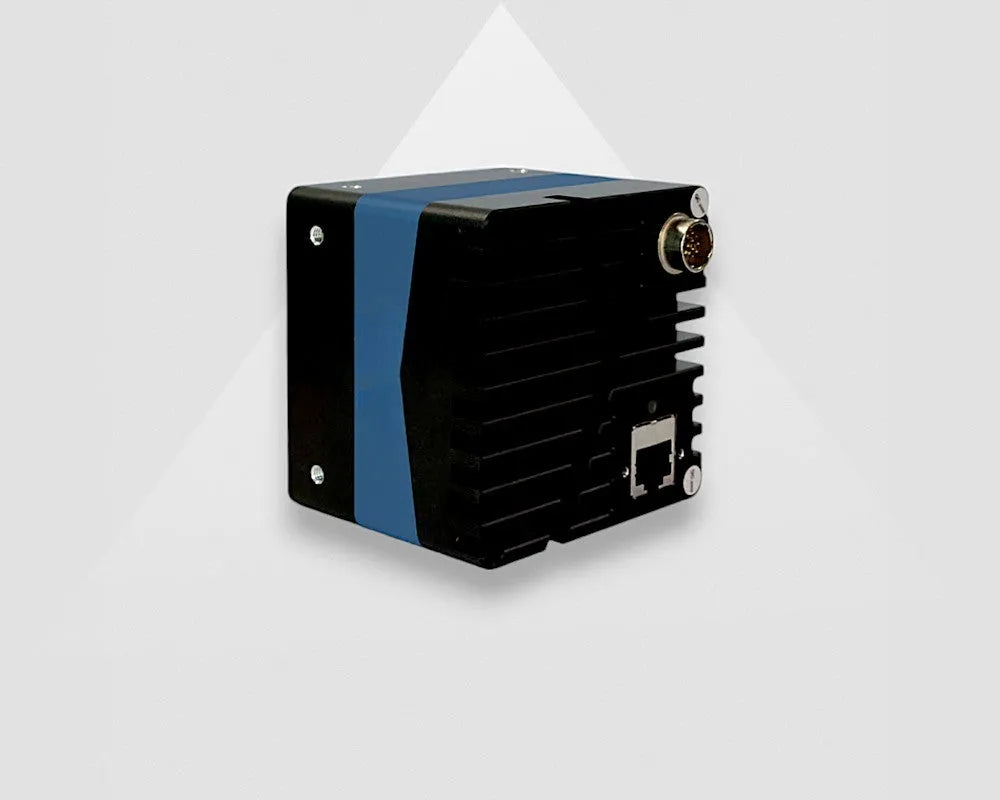

MARS-5000-24GTC, GMAX3249, 7008x7000, 24fps, 2", Global shutter, CMOS, Color

MARS-5000-24GTC Camera 10GigE Vision
MARS-5000-24GTC
  • GMAX3249
  • 7008x7000
  • 24fps
  • 2"
  • Global shutter
  • CMOS
  • Color
€4.995,00
Delivery time: Standard 3-6, Express 0-3 weeks
3 year warranty
Certified by TÜV Rheinland

Description

10GIGE VISION CAMERA

The Mars 10GigE series is an industrial 10GigE vision camera, with a 10GigE interface. This is the best interface for high resolution and / or, high speed imaging where cable length is more than 5 meters. 10GigE is 10x faster than a normal GigE ethernet camera and 2x faster than USB3.
This 10 GigE camera model is interesting for you when your application complies with the following conditions:

  • An industrial highspeed or highresolution camera
  • Maximum cable length of 100 meters using cat6a or higher cable
  • Inexpensive and easy installation of cables
  • Only one cable is required to connect the camera
  • Dimensions are: 74x74x60mm

The camera requires a 10GigE framegrabber. If your computer does not have a 10GigE port, we recommend this framegrabber VA-PCIe4-10GP-1.  If more details are required, the manual can be consulted.

More info

Specifications

Part number MARS-5000-24GTC
Camera interface 10GigE Vision
Camera Resolution 7008x7000
Camera Frame rate (fps) 24
Camera pixel size (um) 3.2
Camera Color/Mono Color
Camera Sensor type GMAX3249
Camera sensor size 2"
Camera Shutter Type Global Shutter
Camera shutter time 14us~1s
Camera ADC Bit Depth TBD
See all specs

Downloads

Need the MARS-5000-24GTC manual?

Do you have a question about the MARS-5000-24GTC?

Ask us your question via


INDUSTRIAL 10GIGE CAMERA WITHOUT POE

The 10GigE camera series does NOT have Power over Ethernet (PoE). Make sure to order a I/O cable suitable for MARS cameras to power the camera.


COLOR INDUSTRIAL CAMERA

An industrial color camera makes use of a Bayer pattern to produce a colored image. The RGB value of every pixel is being calculated by taking the value of a pixel, in combination with all the values of neighboring pixels. This results into less sharp images than those of a monochrome camera.
Due to the RGB filter on the pixels, every single pixel, considering white light, captures on average 66% less photons than a monochrome camera. Which makes a color camera less light sensitive than a monochrome one. To compensate this, the following options are available:

  • Increase the amount of light
  • Increase the gain
  • Increase shutter speed / exposure time
  • Select a more light sensitive sensor
  • Select a more light sensitive lens

Industrial color cameras are used in applications where color information is important.


MTBF, WARRANTY & PRODUCT LIFE CYCLE

Each year, Daheng Imaging produces more than 100.000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is available for at least 7 years. Most cameras have a much longer product life cycle. For more information about our product life cycle management, check this article.

Lensmount

As of September 2022, the camera will default be delivered as M58x1 mount and an additional adapter from M58 to F-mount, so that both lenses can be used on this camera.

Part number MARS-5000-24GTC
Camera interface 10GigE Vision
Camera Resolution 7008x7000
Camera Frame rate (fps) 24
Camera pixel size (um) 3.2
Camera Color/Mono Color
Camera Sensor type GMAX3249
Camera sensor size 2"
Camera Shutter Type Global Shutter
Camera shutter time 14us~1s
Camera ADC Bit Depth TBD
Camera pixel bith depth 8bit, 12bit
Camera Digital Gain TBD
Camera pixel data format TBD
Camera synchronization Hardware trigger, software trigger
Camera I/O 1 input line and 1 output line and 1 GPIO
Camera operating temp. 0°C~50°C
Camera operating humidity 10%~80%
Camera lens mount M58 & F-mount
Camera dimensions 74x74x60mm
Camera SDK Software Windows / Linux X86 (limited)
Camera power consumption <10W @24VDC
Camera weight (g) 520
Camera Conformity CE, FCC, RoHS, 10GigE-Vision, GenICam
Camera Megapixel 49
Partnumber old MARS-5000-24GTC
€4.995,00
