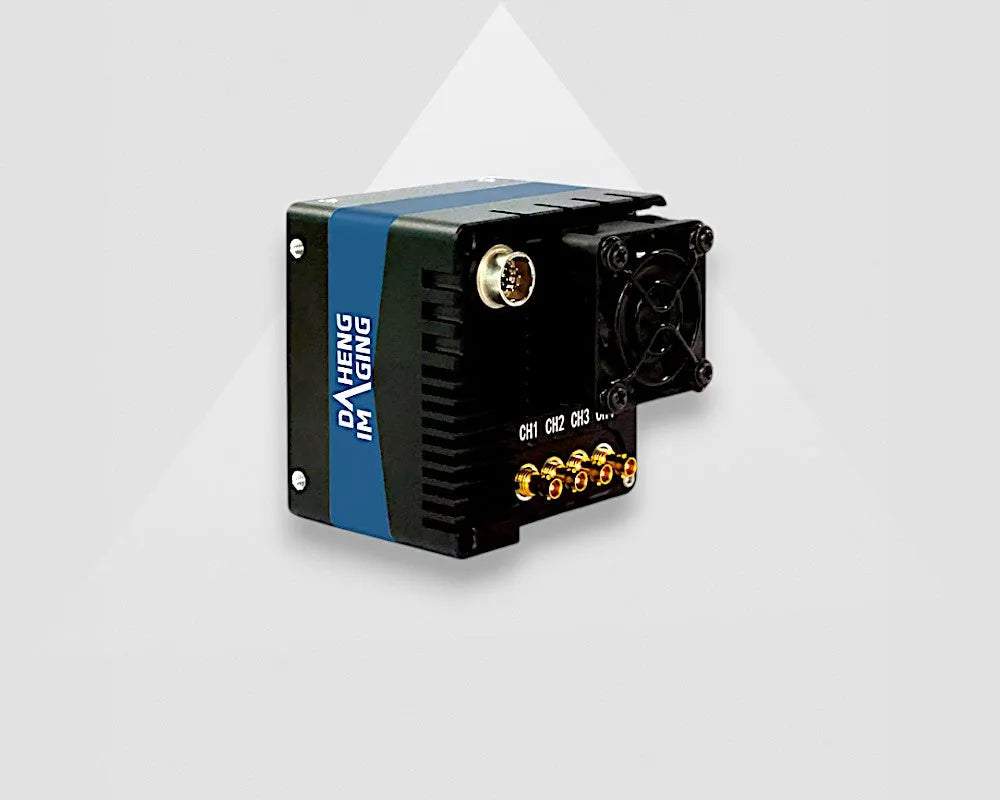

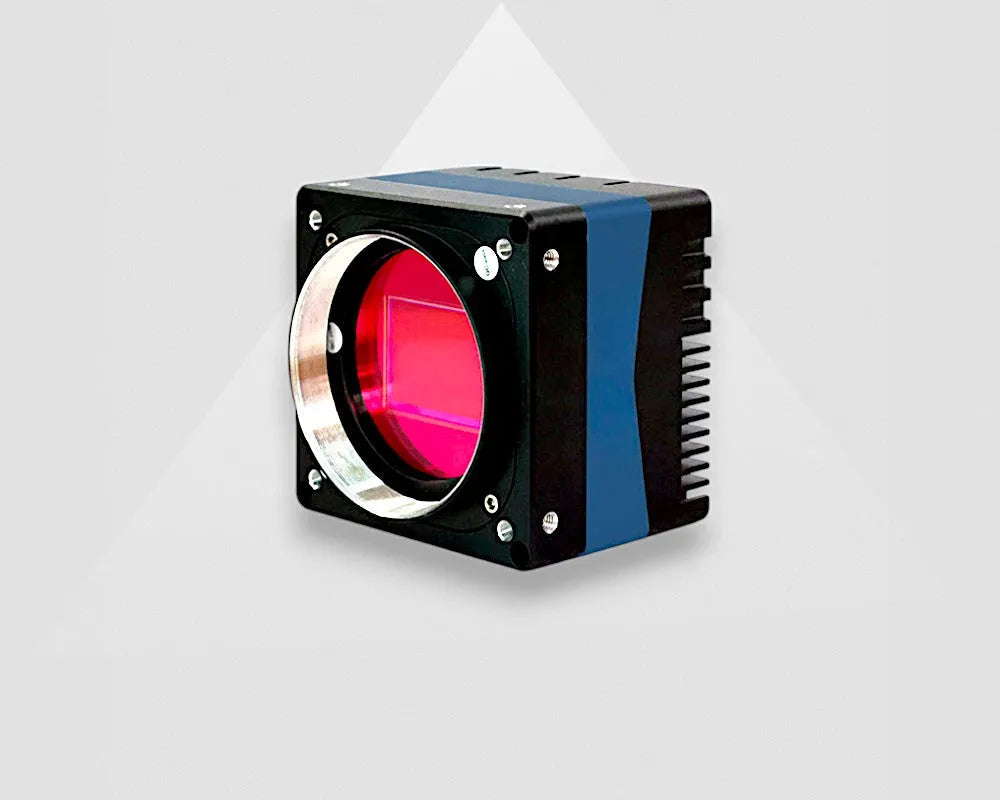

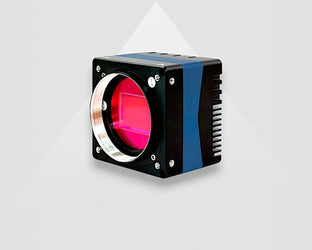

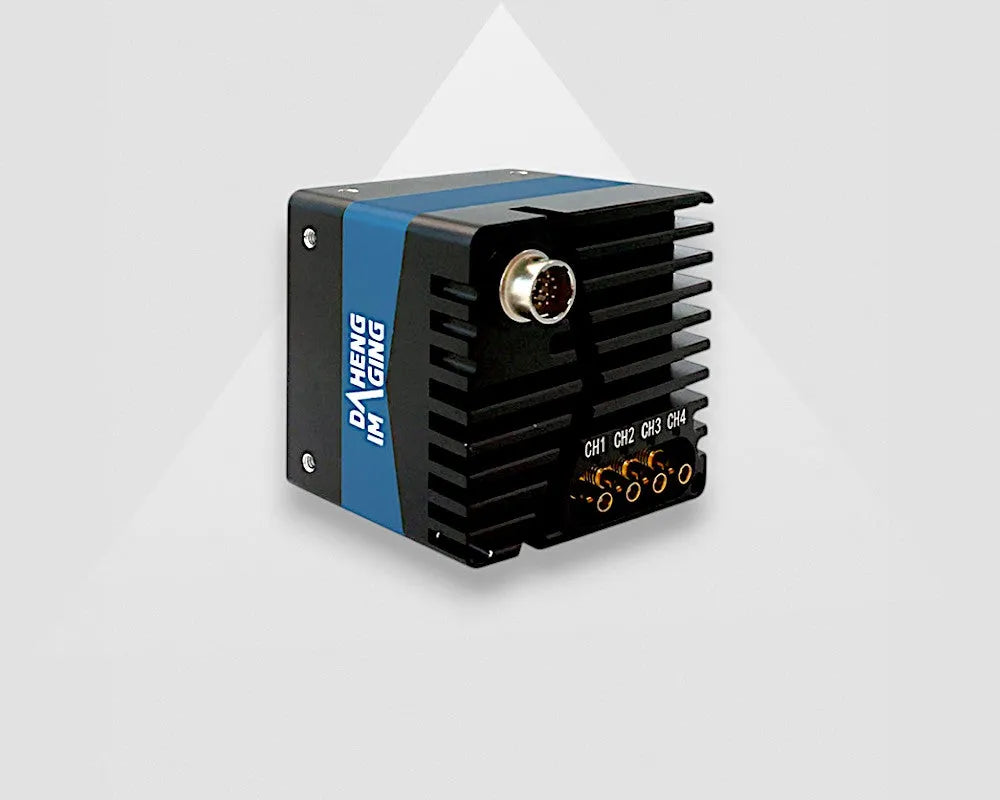

MARS-6502-71X2C-NF, GMAX3265, 9344x7000, 71fps, 29.9mm × 22.4mm, Global shutter, CMOS, Color
- GMAX3265
- 9344x7000
- 71fps
- 29.9mm × 22.4mm
- Global shutter
- CMOS
- Color
CoaXPress Vision Camera GMAX3265
The MARS-6502-71X2C-NF is a high-performance 65-megapixel CoaXPress industrial camera designed for advanced machine vision applications. This camera offers exceptional image quality and high-speed data transmission, making it ideal for demanding industrial inspection, scientific research, and medical imaging tasks. By use of a CoaXPress interface we can deliver very high-resolution images at high framerates. The interface is designed to provide a stable and fast connection between the camera and the frame grabber. To give you the best experience, the camera comes with a frame grabber and cable set. To make full use of the Gpixel GMAX3265 sensor, the camera comes with an M58 mount, see our recommended lens here. This CoaXPress model is interesting for you when your application complies with the following conditions:
- An industrial CoaXPress camera
- Dimensions are: 74(W) × 74(H) × 69.8(L) mm, 74(W) × 74(H) × 80.55(L) mm（-NF: Fan cooling）
- M58 mount
If more details are required, the manual can be consulted.
More infoSpecifications
| Part number | MARS-6502-71X2C-NF |
| Interface | CXP |
| Resolution | 9344x7000 |
| Frame rate (fps) | 71 |
| Pixel size (um) | 3.2 |
| Color/Mono | Color |
| Sensor type | Gpixel GMAX3265 |
| Sensor size | 29.9mm × 22.4mm |
| Shutter Type | Global Shutter |
| Shutter time | 13μs~1s |
| ADC Bit Depth | 10 bit |
Industrial color camera

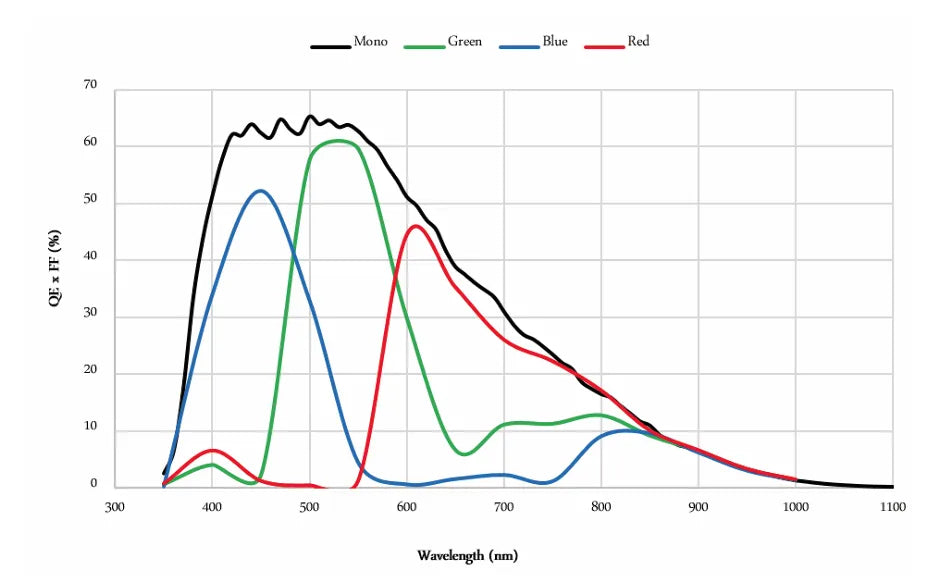

A color camera makes use of a Bayer pattern to produce a colored image. The RGB value of every pixel is calculated by taking the value of a pixel, in combination with all the values of neighboring pixels. This results in less sharp images than those of a monochrome camera. Due to the RGB filter on the pixels, every single pixel, considering white light, captures up to 66% less photons than a monochrome camera. Which makes a color camera less light sensitive than a monochrome one. To compensate this, the following options are available:
- Increase the amount of light
- Increase the gain
- Increase shutter speed / exposure time
- Select a more light sensitive sensor
- Select a more light sensitive lens Compared to security cameras and webcams, an industrial color camera has larger and more light sensitive pixels. Providing you with an excellent image quality.
MTBF, Warranty & Product Life Cycle
Each year, Daheng Imaging produces more than 100.000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is available for at least 7 years. Most cameras have a much longer product life cycle. For more information about our product life cycle management, check this article.
Lens mount
The camera will default be delivered as M58x1 mount and an additional adapter from M58 to F-mount, so that both lenses can be used on this camera.
| Part number | MARS-6502-71X2C-NF |
| Interface | CXP |
| Resolution | 9344x7000 |
| Frame rate (fps) | 71 |
| Pixel size (um) | 3.2 |
| Color/Mono | Color |
| Sensor type | Gpixel GMAX3265 |
| Sensor size | 29.9mm × 22.4mm |
| Shutter Type | Global Shutter |
| Shutter time | 13μs~1s |
| ADC Bit Depth | 10 bit |
| Pixel bit depth | 8 bit, 10 bit |
| Digital Gain | 0dB ~ 16dB |
| Pixel data format | Bayer GB8 / Bayer GB10 |
| Synchronization | Hardware trigger, software trigger |

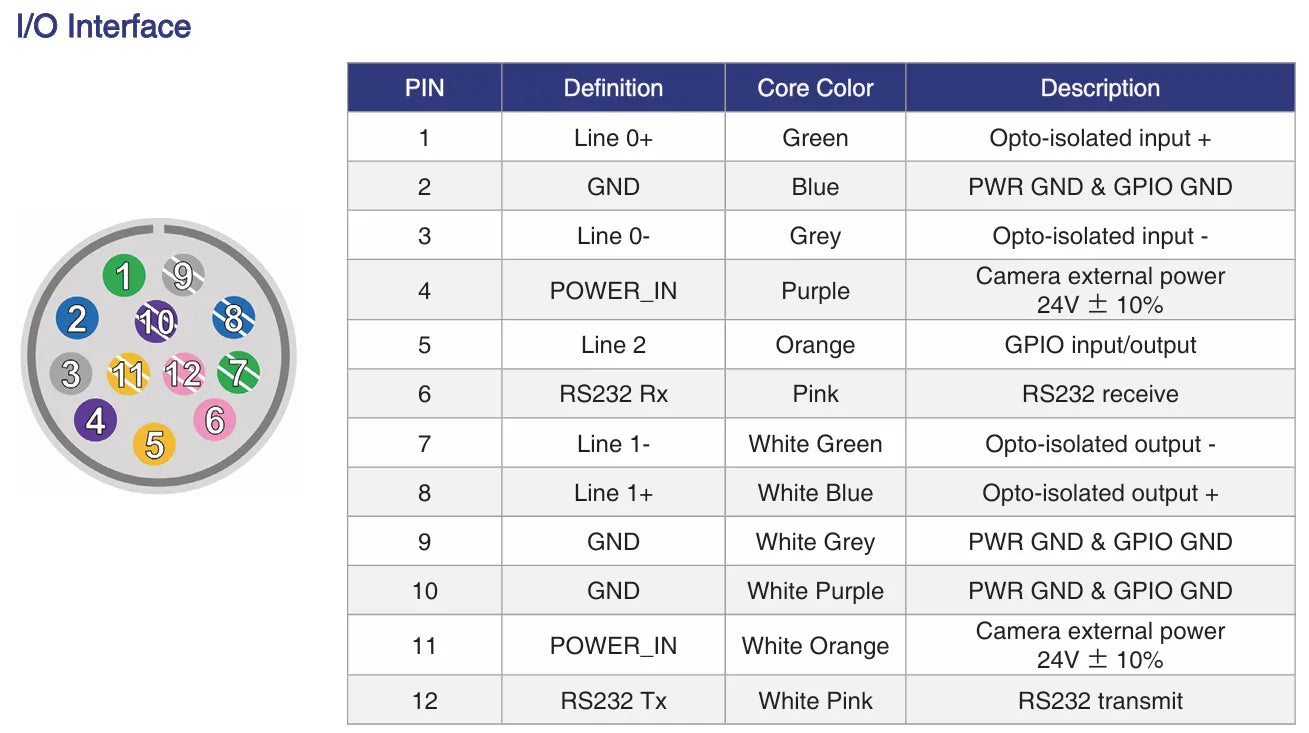

| I/O | 1 input and 1 output with opto-isolated, 1 bidirectional GPIO, 1 RS232 |
| Operating temp. | 0°C~45°C |
| Operating humidity | 10%~80% |
| Mount | M58 |

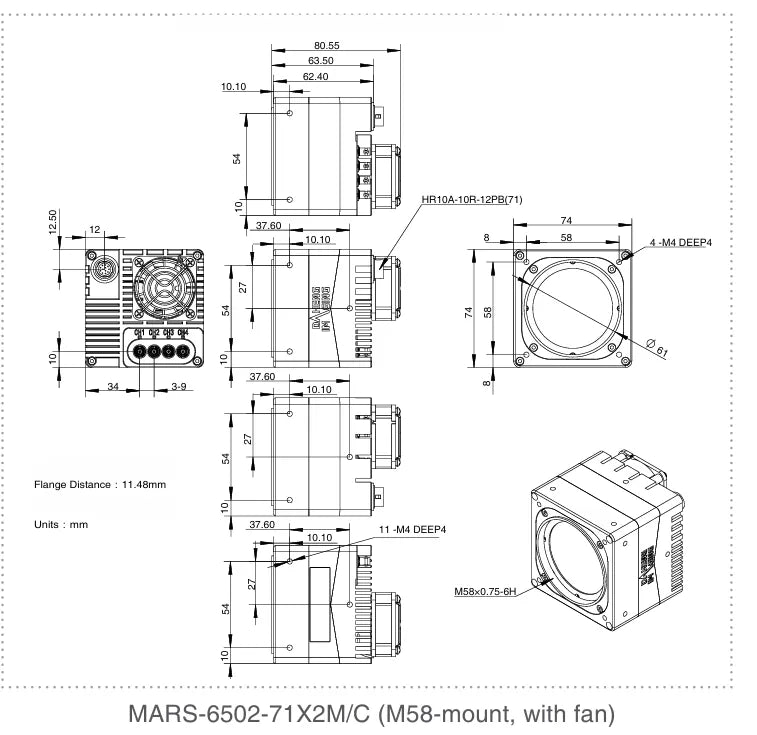

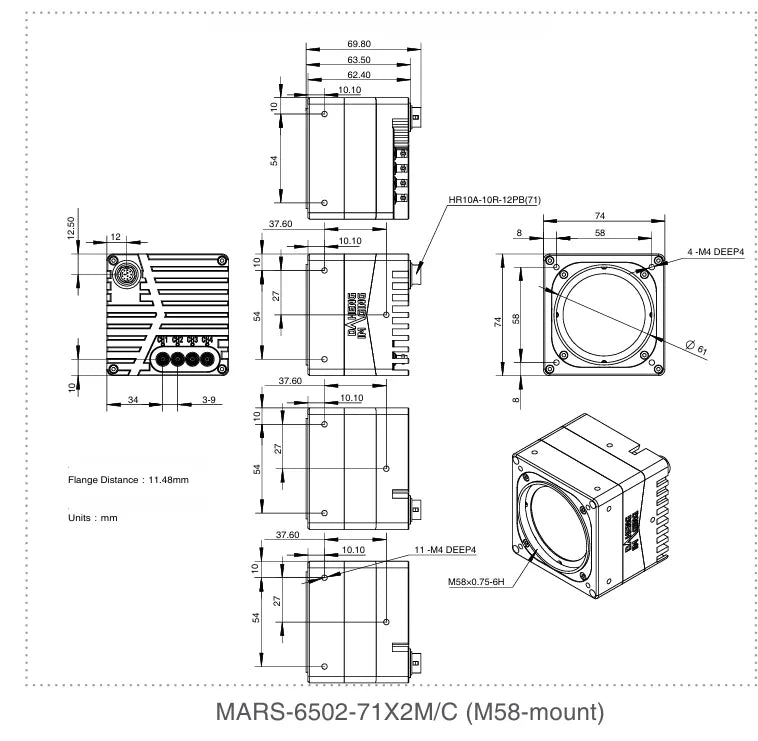

| Dimensions | 74(W) × 74(H) × 69.8(L) mm, 74(W) × 74(H) × 80.55(L) mm（-NF: Fan cooling） |
| SDK Software | DAHENG IMAGING or third-party frame grabbers supporting software |
| Power consumption | Typ.: 16W@24V, ambient temp. 25°C, FAN (ON) 14W@24V, ambient temp. 25°C, FAN (OFF) |
| Weight (g) | 521 |
| Conformity | CE, RoHS, CoaXPress2.0, GenICam |
| Megapixel | 65 |
| Partnumber old | MARS-6502-71X2C-NF |
| SDK Software | DAHENG IMAGING or third-party frame grabbers supporting software |
