VA-LCS-12MP-1050MM-F1.4-017-AFZ, AFZ Lens CS-mount 12MP 10MM-50MM F1.4 1/1.7 inch
- AFZ Lens CS-mount 12MP 10MM-50MM F1.4 1/1.7 inch
Description
The 12MP 10MM-50MM AFZ Motorized focus CS-mount lens is part of the 12MP 1/1.7” lens series. This VA-LCS-12MP-1050MM-F1.4-017-AFZ varifocal lens has a 10MM-50MM focal length and F-number of 1.4.

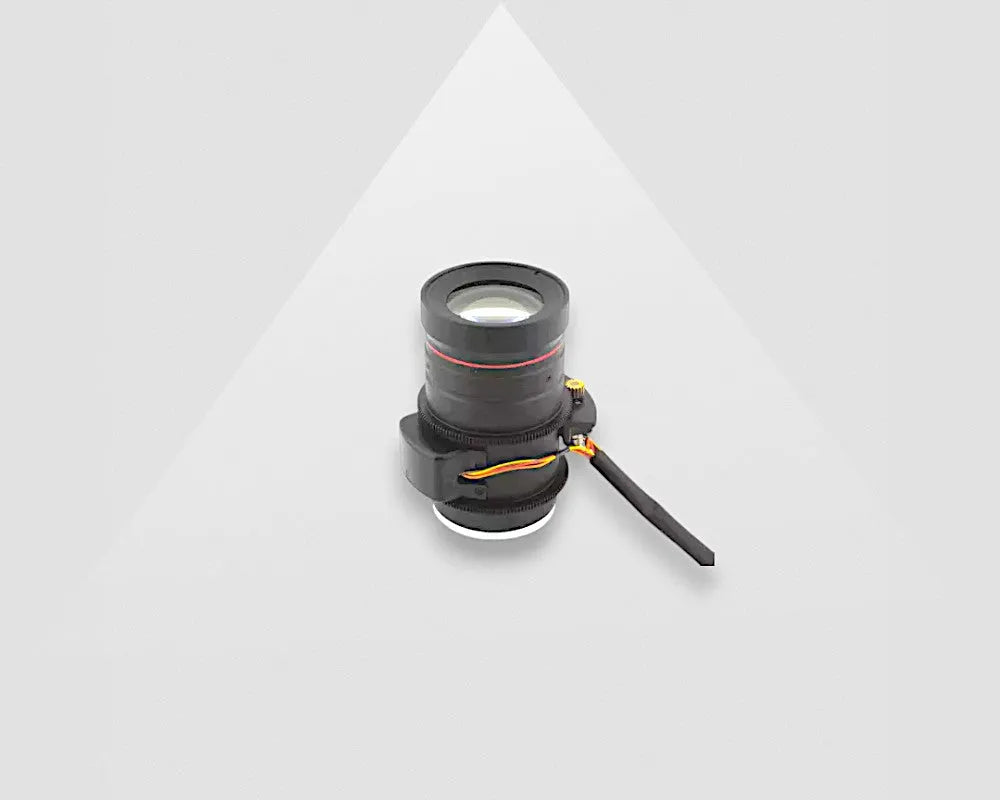

12MP 10MM-50MM AFZ Motorized focus CS-mount lens

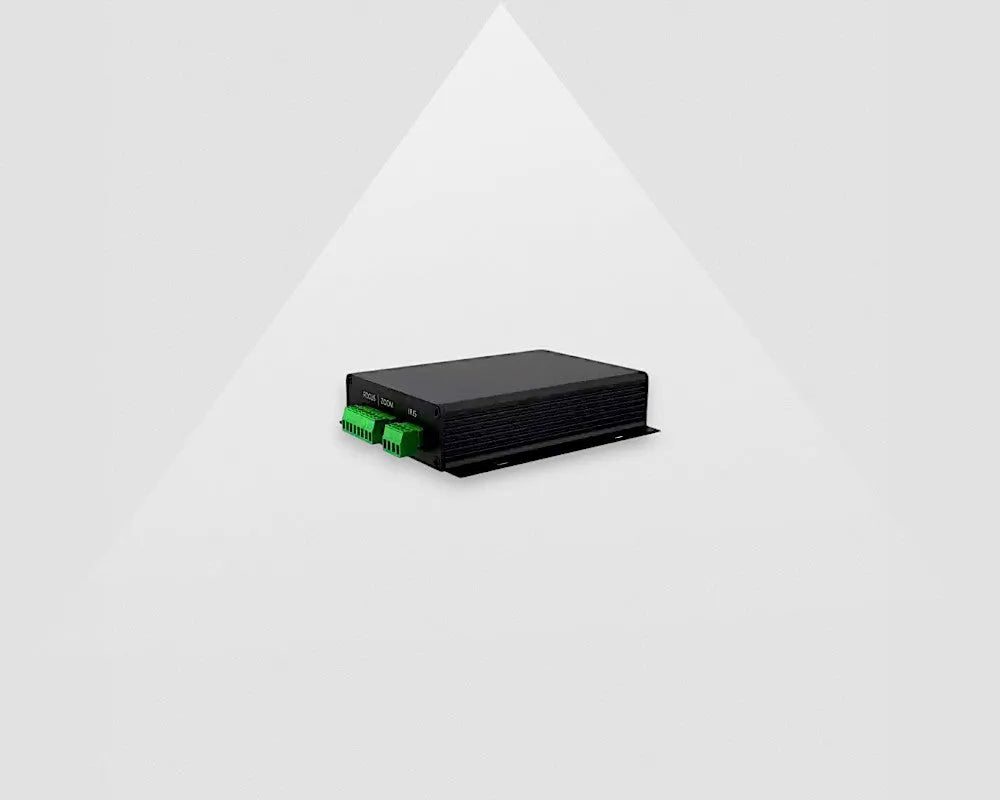

The AFZ Lens controller Unit provides precise control over zoom, focus and iris settings for compatible lenses. This unit simplifies lens operation through a user-friendly interface and eliminates the need for manual adjustments. The AFZ also offers advanced features, such as programmable presets and seamless integration with external applications via a dedicated API. For more information, the datasheet can be consulted.
More infoSpecifications
| Part number | VA-LCS-12MP-1050MM-F1.4-017-AFZ |
| Product remark | 10mm-50mm |
| Lens resolution (megapixel) | 12 |
| Lens Image format / circle | 1/1.7" |
| Lens IR corrected | true |
| Lens focal length (mm) | 10 |
| Lens aperture (min) | F1.4 |
| Lens minimum object distance (MOD) - Max | 1.5m - Infinity |
| Lens mount | CS |
| Lens dimensions | 50x87.4mm |
| Lens distortion | -10.7% ~ 0.07% |
Downloads
Need the VA-LCS-12MP-1050MM-F1.4-017-AFZ 3D stepfiles, MTF chart or lens manual ?
Do you have a question about the VA-LCS-12MP-1050MM-F1.4-017-AFZ?
Ask us your question via
Autofocus lens x Motorized focus lens in Machine vision
Machine vision applications often require precise control over what's in sharp focus. While autofocus offers convenience by automatically adjusting the lens, this relinquishes control from the user. Motorized focus systems are the preferred choice in machine vision for this very reason. They allow for deliberate selection of what needs to be focused on, ensuring a sharp image with the flexibility of remote adjustment.
When to use Motorized zoom & focus lenses
Motorized zoom focus lenses offer convenience and precision compared to traditional lenses in dynamic scenes. They allow you to control zoom, focus, and iris settings remotely, making them ideal for security systems where cameras can zoom in on suspicious activity or adjust focus for clear license plate recognition. These lenses also make multiple FOV and WD setups possible in your machine vision application. Product specific focus and zoom position can be easily configured and stored in the controller and loaded via external inputs connected to a PLC. The addition of the Python API allows you to program specific zoom, focus, and iris settings directly from your own program. Using external sensors or image processing logic, the position can be calculated and then be used to control the lens precisely. The controllers also uses the industry-standard Pelco-D commands and allows for seamless integration into your existing security systems, robotics projects, or automated workflows. The Pelco-D standard is a popular protocol for controlling PTZ (Pan/Tilt/Zoom) cameras, making it a versatile choice for various applications.
What's included
When ordering the 12MP 1050MM AFZ Motorized zoom & focus CS-mount lens, the following items will be included:
- VA-LCS-12MP-1050MM-F1.4-017-AFZ varifocal lens
- 5 Meter lens connection cable
- VA-LC-AFZ1 Lens Controller
*This is a CS-mount lens, can only be used with CS-mount camera.
| Part number | VA-LCS-12MP-1050MM-F1.4-017-AFZ |
| Product remark | 10mm-50mm |
| Lens resolution (megapixel) | 12 |
| Lens Image format / circle | 1/1.7" |
| Lens IR corrected | true |
| Lens focal length (mm) | 10 |
| Lens aperture (min) | F1.4 |
| Lens minimum object distance (MOD) - Max | 1.5m - Infinity |
| Lens mount | CS |
| Lens dimensions | 50x87.4mm |
| Lens distortion | -10.7% ~ 0.07% |
| Lens weight (g) | 265 |
| Partnumber old | VA7-LCS-12MP-1050MM-F1.4-017-AFZ |
