MARS-6502-71X2M-NF, GMAX3265, 9344x7000, 71fps, 29.9mm × 22.4mm, Global shutter, CMOS, Mono
- GMAX3265
- 9344x7000
- 71fps
- 29.9mm × 22.4mm
- Global shutter
- CMOS
- Mono
CoaXPress Vision Camera GMAX3265

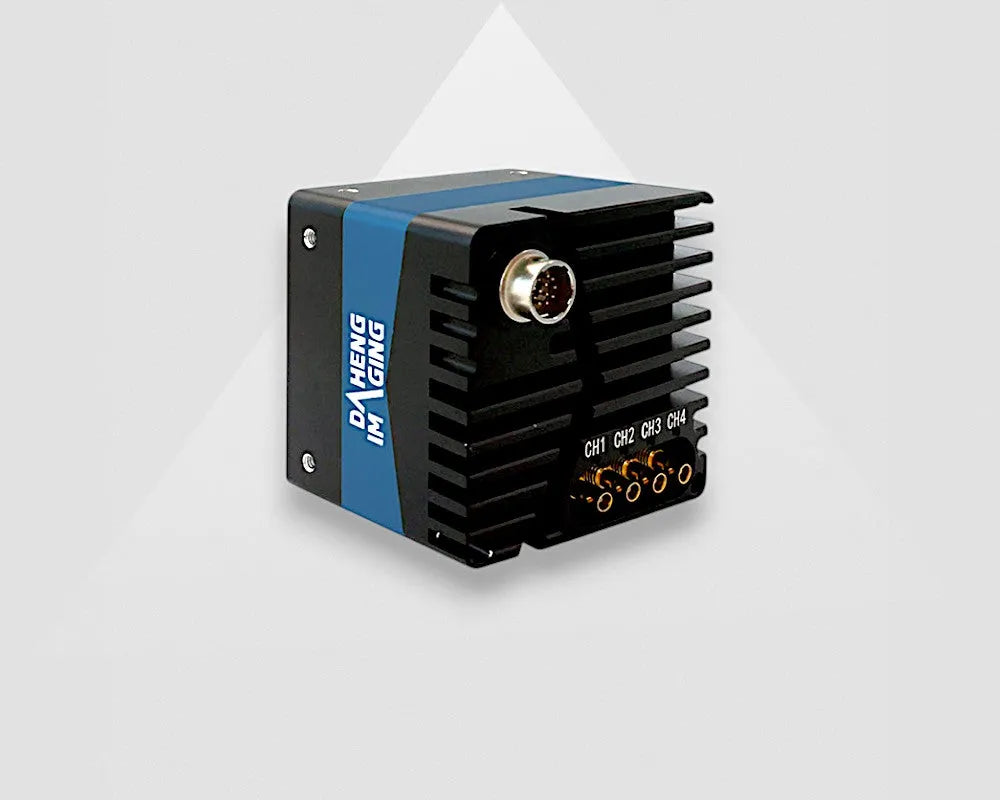

The MARS-6502-71X2M-NF is a high-performance 65 megapixel CoaXPress industrial camera designed for advanced machine vision applications. This camera offers exceptional image quality and high-speed data transmission, making it ideal for demanding industrial inspection, scientific research, and medical imaging tasks. By use of a CoaXPress interface we are able to deliver very high-resolution images at high framerates. The interface is designed to provide a stable and fast connection between the camera and the frame grabber. To fully give you the best experience the camera comes with a frame grabber and cable set included. To make full use of the Gpixel GMAX3265 sensor, the camera comes with an M58 mount, see our recommended lens here. This CoaXPress model is interesting for you when your application complies with the following conditions:
- An industrial CoaXPress camera

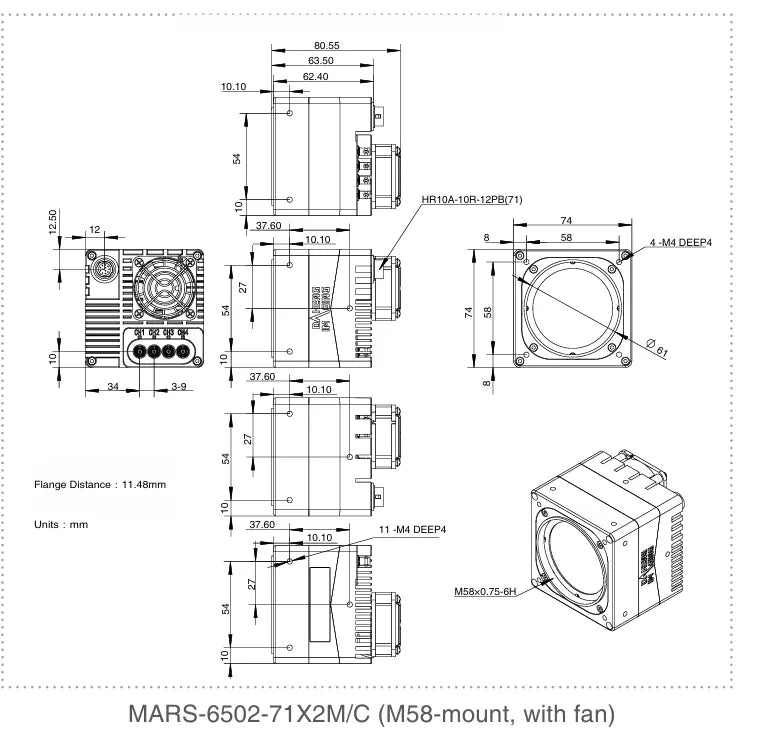

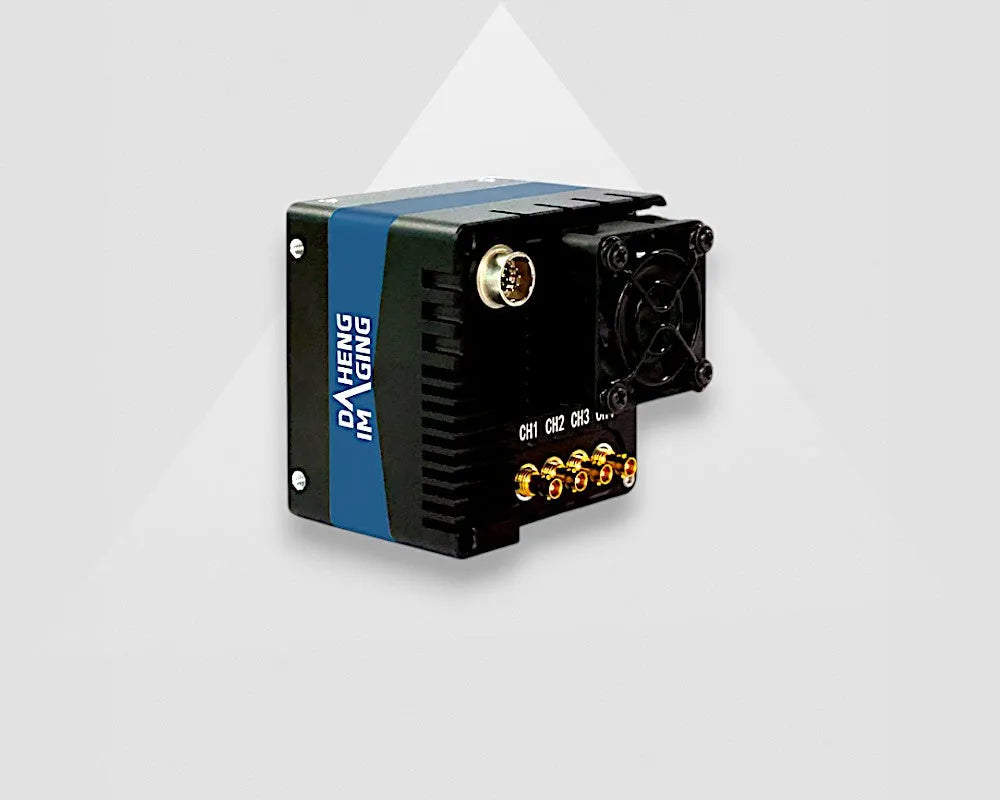

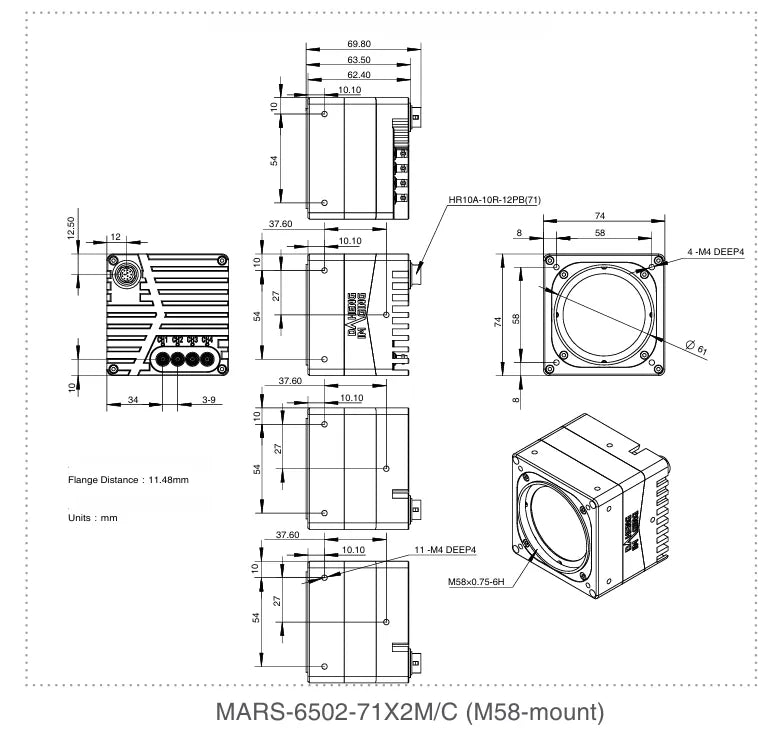

- Dimensions are: 74(W) × 74(H) × 69.8(L) mm, 74(W) × 74(H) × 80.55(L) mm（-NF: Fan cooling）

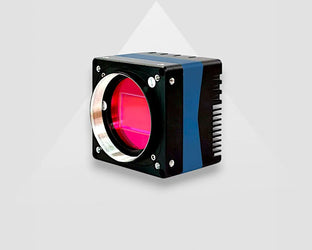

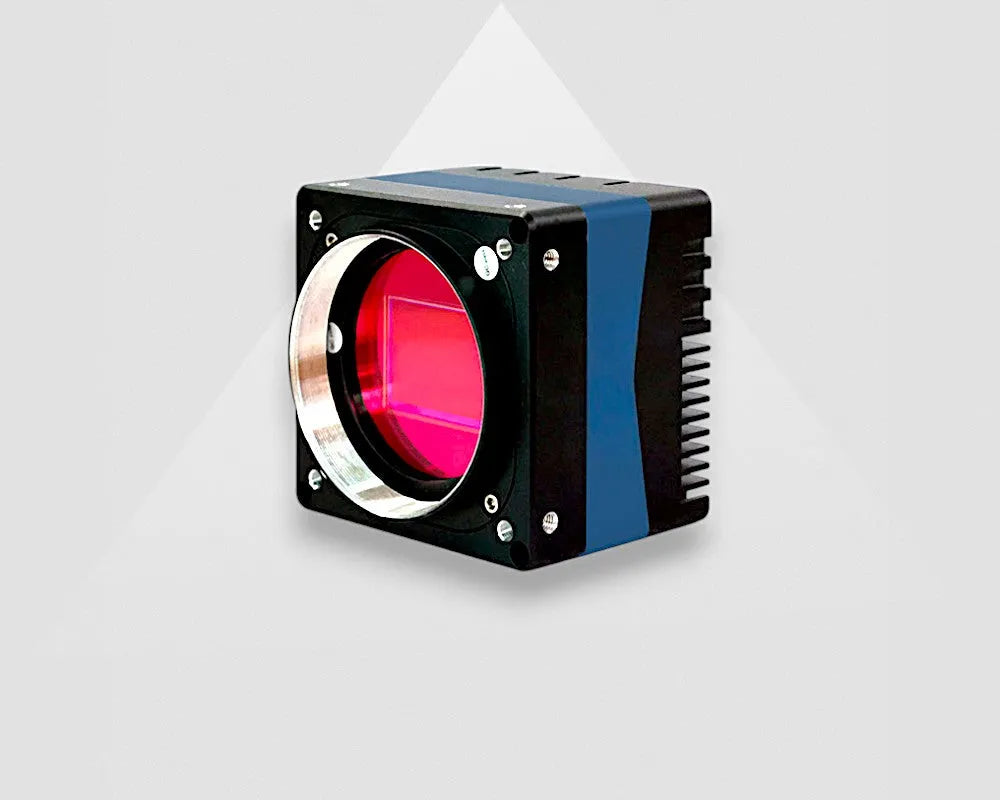

- M58 mount
If more details are required, the manual can be consulted.
More infoSpecifications
| Part number | MARS-6502-71X2M-NF |
| Interface | CXP |
| Resolution | 9344x7000 |
| Frame rate (fps) | 71 |
| Pixel size (um) | 3.2 |
| Color/Mono | Mono |
| Sensor type | Gpixel GMAX3265 |
| Sensor size | 29.9mm × 22.4mm |
| Shutter Type | Global Shutter |
| Shutter time | 13μs~1s |
| ADC Bit Depth | 10 bit |
Monochrome Industrial Camera
A black and white camera, also known as a monochrome camera, offers advantages in a variety of applications. While the market for security and telephony focuses on color cameras, the industrial market utilizes the advantages of black and white cameras. Black and white cameras are very light sensitive, provide sharp images and reduces data compared to color. This makes it ideal for the processing of images. By selecting the optimal lighting color and lens filter, product characteristics can be highlighted. Enabling the creation of high-resolution images with high contrast using a monochrome cameras.
MTBF, Warranty & Product Life Cycle
Each year, Daheng Imaging produces more than 100.000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is available for at least 7 years. Most cameras have a much longer product life cycle. For more information about our product life cycle management, check this article.
Lens mount
The camera will default be delivered as M58x1 mount and an additional adapter from M58 to F-mount, so that both lenses can be used on this camera.
| Part number | MARS-6502-71X2M-NF |
| Interface | CXP |
| Resolution | 9344x7000 |
| Frame rate (fps) | 71 |
| Pixel size (um) | 3.2 |
| Color/Mono | Mono |
| Sensor type | Gpixel GMAX3265 |
| Sensor size | 29.9mm × 22.4mm |
| Shutter Type | Global Shutter |
| Shutter time | 13μs~1s |
| ADC Bit Depth | 10 bit |
| Pixel bit depth | 8 bit, 10 bit |
| Digital Gain | 0dB ~ 16dB |
| Pixel data format | Mono8 / Mono10 |
| Synchronization | Hardware trigger, software trigger |

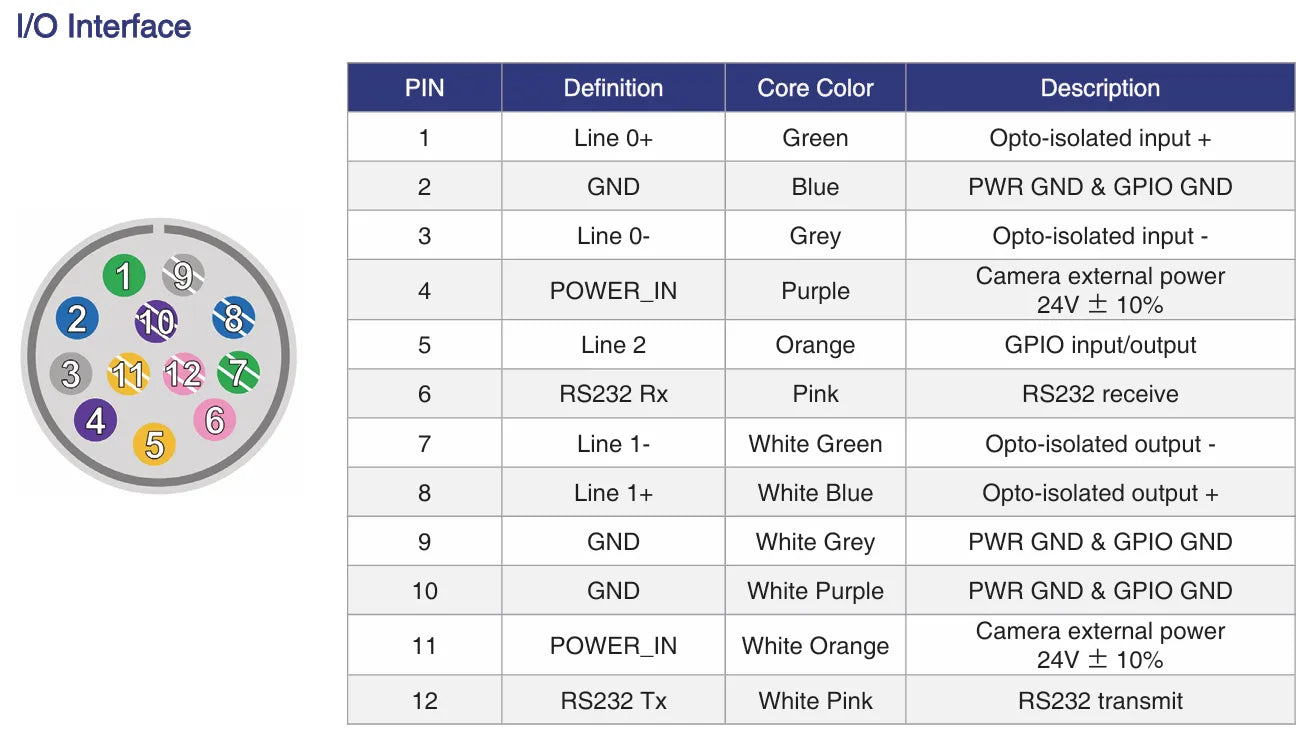

| I/O | 1 input and 1 output with opto-isolated, 1 bidirectional GPIO, 1 RS232 |
| Operating temp. | 0°C~45°C |
| Operating humidity | 10%~80% |
| Mount | M58 |
| Dimensions | 74(W) × 74(H) × 69.8(L) mm, 74(W) × 74(H) × 80.55(L) mm（-NF: Fan cooling） |
| SDK Software | DAHENG IMAGING or third-party frame grabbers supporting software |
| Power consumption | Typ.: 16W@24V, ambient temp. 25°C, FAN (ON) 14W@24V, ambient temp. 25°C, FAN (OFF) |
| Weight (g) | 521 |
| Conformity | CE, RoHS, CoaXPress2.0, GenICam |
| Megapixel | 65 |
| Partnumber old | MARS-6502-71X2M-NF |
| SDK Software | DAHENG IMAGING or third-party frame grabbers supporting software |
