ME2P-171-66GM-P, IMX432, 1608x1104, 66fps, 1.1 inch, Global shutter, CMOS, Mono
- IMX432
- 1608x1104
- 66fps
- 1.1 inch
- Global shutter
- CMOS
- Mono
Description

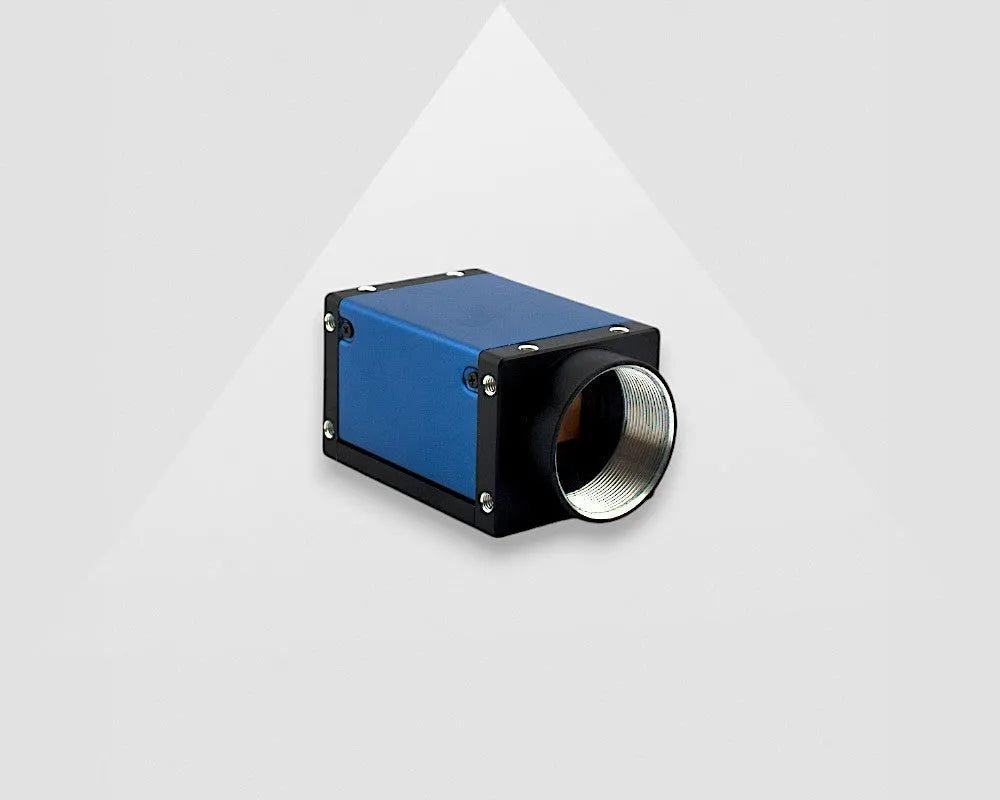

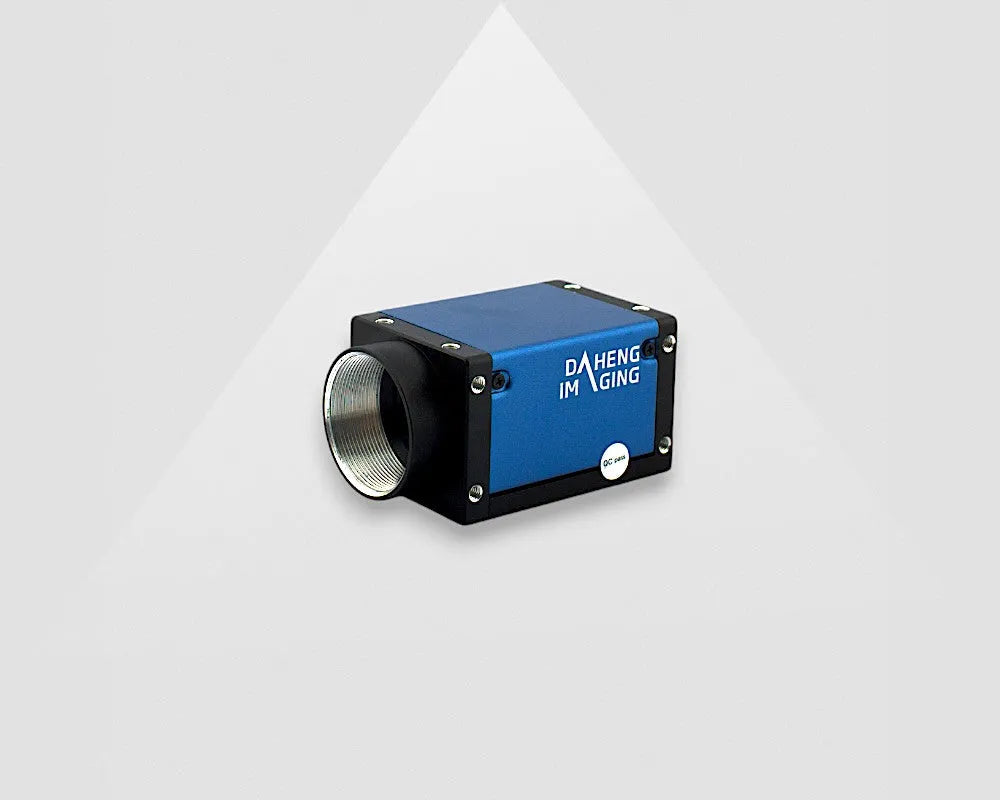

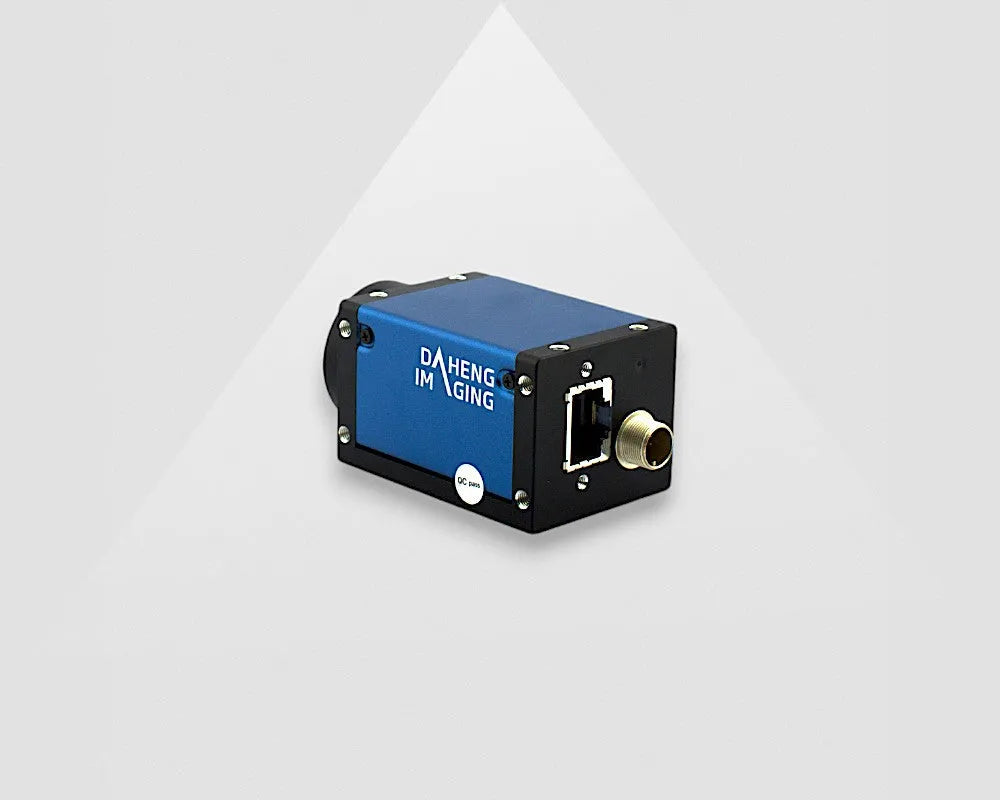

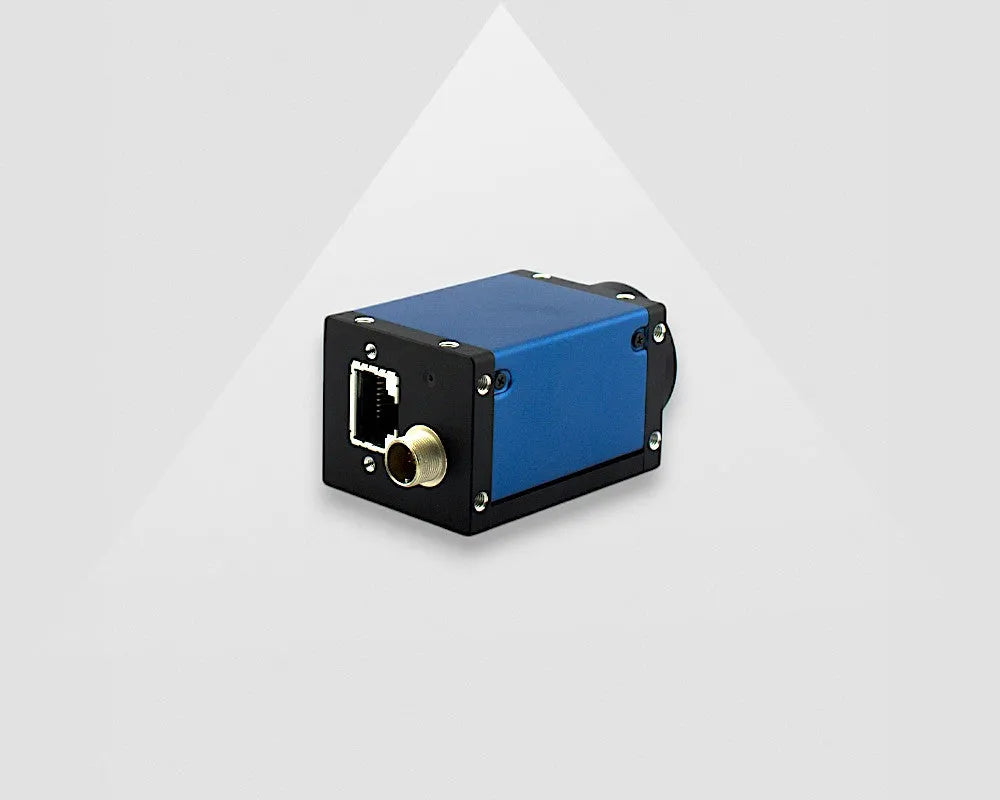

GigE Vision Camera
The Mercury 2 Pro GigE Vision Camera series is an industrial vision camera, with a GigE Vision interface. This industrial vision camera series feature high resolution, low noise global shutter sensors in a compact housing. GigE is the most common interface for camera’s in traditional machine vision applications. ME2P series have advanced features. If you are using advanced features, please contact us, so we can double check if the specific feature is present or can be implemented for you. It also support "remove parameter limit" to expand the range of exposure, gain, white balance etc. Exposure times up to 10 seconds are possible.
The GigE Vision Camera series is interesting for you when your application complies with the following conditions:
- A compact high resolution global shutter camera
- Maximum cable length of 100 meters
- Inexpensive and easy installation of cables
- Only one cable is required to connect the industrial camera
- advanced image processing features
If more details are required, the manual of the ME2P GigE Vision camera can be consulted.
Specifications
| Part number | ME2P-171-66GM-P |
| Camera interface | GigE Vision |
| Camera Resolution | 1608x1104 |
| Camera Frame rate (fps) | 66 |
| Camera pixel size (um) | 9.0 |
| Camera Color/Mono | Mono |
| Camera Sensor type | IMX432 |
| Camera sensor size | 1.1" |
| Camera Shutter Type | Global Shutter |
| Camera shutter time | 9us~1s |
| Camera ADC Bit Depth | 12bit |
MTBF, warranty & product life cycle
Each year, Daheng Imaging produces more than 100.000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is available for at least 7 years. Most cameras have a much longer product life cycle. For more information about our product life cycle management, check this article.
Monochrome Industrial Camera
A black and white camera, also known as a monochrome camera, offers advantages in a variety of applications. While the market for security and telephony focuses on color cameras, the industrial market utilizes the advantages of black and white cameras. Black and white cameras are very light sensitive, provide sharp images and reduces data compared to color. This makes it ideal for the processing of images. By selecting the right color as your light source and lens filter, a black and white camera can utilize the product its characteristics. Hereby men can create images with a large contrast and a high resolution.
Advanced vision camera features
The ME2P GigE vision camera serie has both standard and advanced features onboard, like:
- Programmable ROI, increased frame rate with partial scan
- Gain, exposure and white balance programmable (white balance only for color models)
- Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
- Four acquisition controls: Single frame acquisition / Continuous acquisition / Software trigger acquisition / External trigger acquisition
- Compatible with GenICam™and GigE Vision®, can be used in a wide range of 3rd-party software such as HALCON and LabVIEW directly
- Multiple samples and easy-to-integrate SDK for various programming tools
- Regulations: CE, RoHS, GenICam, GigE Vision
The complete set of features makes the ME2P GigE Vision camera serie a perfect choice for high performance image processing.
| Part number | ME2P-171-66GM-P |
| Camera interface | GigE Vision |
| Camera Resolution | 1608x1104 |
| Camera Frame rate (fps) | 66 |
| Camera pixel size (um) | 9.0 |
| Camera Color/Mono | Mono |
| Camera Sensor type | IMX432 |
| Camera sensor size | 1.1" |
| Camera Shutter Type | Global Shutter |
| Camera shutter time | 9us~1s |
| Camera ADC Bit Depth | 12bit |
| Camera pixel bit depth | 8bit, 12bit |
| Camera Digital Gain | 0dB ~ 24dB |
| Camera pixel data format | Mono8/Mono12/Mono12Packed |
| Camera synchronization | Hardware trigger, software trigger |
| Camera I/O | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Camera operating temp. | 0°C~45°C |
| Camera operating humidity | 10%~80% |
| Camera lens mount | C |

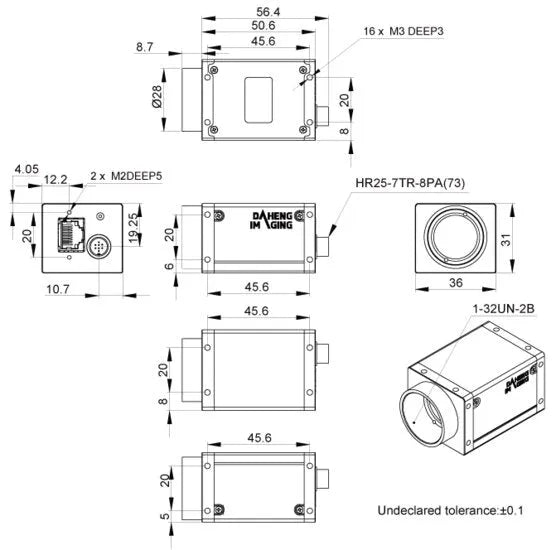

| Camera dimensions | 36x31x50.6mm |
| Camera SDK Software | 3rd-party software such as HALCON, VisionPro and LabVIEW |
| Camera power consumption | < 4.8 W @ 24 VDC; < 4.8 W @ PoE |
| Camera weight (g) | 75 |
| Camera Conformity | CE, RoHS, FCC, ICES, UKCA, GigE Vision®, GenICam® |
| Camera Megapixel | 2 |
| Partnumber old | ME2P-171-66GM-P |
