EOL | LAST TIME BUY 01-02-2022

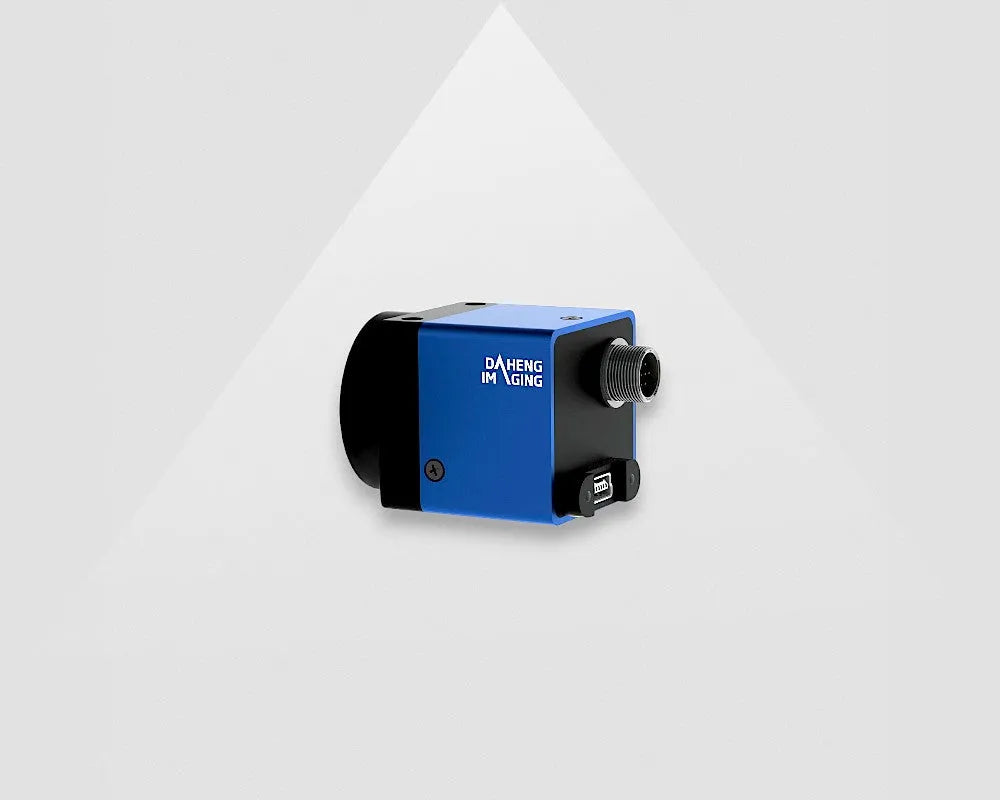

USB2 Vision Camera

The Mercury USB2.0 camera series is an industrial vision camera, with an USB2.0 interface. USB2.0 is the most price competitive interface regarding industrial machine vision cameras.
This model is interesting for you when your application complies with the following conditions:
-    An inexpensive industrial camera
-    Maximum cable length of 5 meters
-    Only one cable is required to connect the device

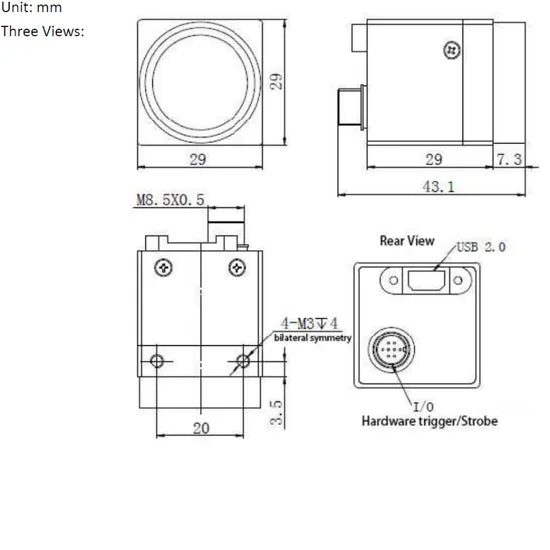

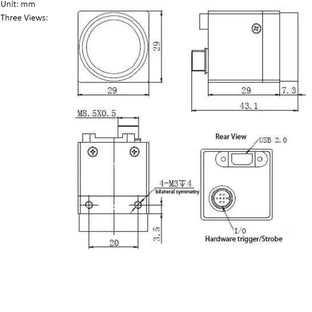

-    Dimensions are: 29x29x29mm
-    Optional hardware triggering

If more details are required, the manual can be consulted.

Monochrome Camera

A black and white camera, also known as a monochrome camera, offers advantages in a variety of applications. While the market for security and telephony focusses on color cameras, the industrial market utilizes the advantages of black and white cameras. Black and white cameras are very light sensitive, provide sharp images and reduces data compared to color. This makes it ideal for the processing of images. By selecting the right color as your light source and lens filter, a black and white camera can utilize the product its characteristics. Hereby men can create images with a large contrast and a high resolution.

With I/O

The I/O connector from a USB camera is an 8 pin HR25 Hirose connector, which is a standard in the industrial machine vision market. This camera has an input that can be used as a hardware trigger for the device. The output of the camera can be used to trigger a light source, for example: LED. Furthermore, the camera has two GPIO’s (General Purpose Input/ Output) which can be programmed by using our SDK. The electrical diagrams to use the I/O connector are provided in the manual.
