GigE Vision Camera | EOL | LAST TIME BUY 26-05-2022

We recommend the MER2-1220-9GC for new indesign

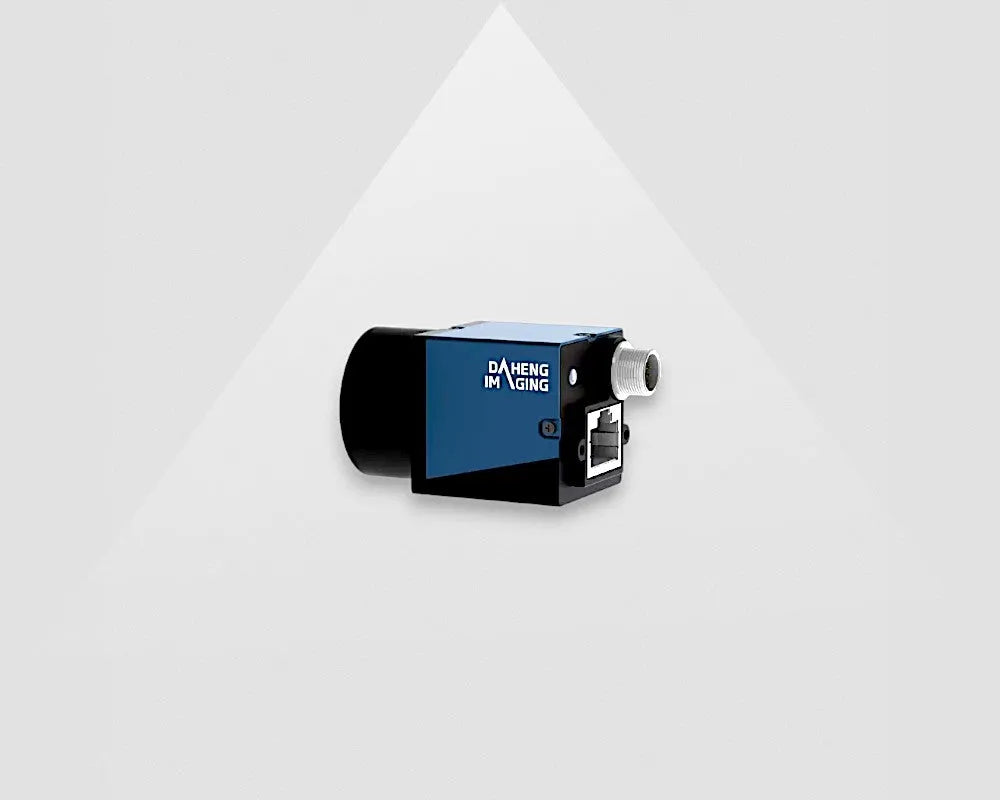

The Mercury GigE camera series is an industrial vision camera, with a GigE interface. GigE is the most common interface used for cameras in traditional machine vision applications. The camera is available with and without Power over Ethernet (PoE).
This model is interesting for you when your application complies with the following conditions:
-    An industrial camera
-    Maximum cable length of 100 meters
-    Inexpensive and easy installation of cables
-    Only one cable is required to connect the device (in case of PoE)
-    Dimensions are: 29x29x29mm (without PoE), 29x29x38 mm (with PoE)
-    Optional hardware triggering

If more details are required, the manual can be consulted.

Warranty & Product Life Cycle

Daheng Imaging produce yearly more than 100.000 industrial cameras according to the highest quality standards. The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is at least available for 7 years. Most cameras have even a much longer product life cycle. For more information about our product life cycle management, check this article.

Color Camera

A color camera makes use of a Bayer pattern to produce a colored image. The RGB value of every pixel is being calculated by taking the value of a pixel, in combination with all the values of neighboring pixels. This results into less sharp images than those of a monochrome camera.
Due to the RGB filter on the pixels, every single pixel, considering white light, on average has 66% less photons than a monochrome camera. Which makes a color camera less light sensitive than a monochrome one. To compensate this, the following options are available:
-    Increase the amount of light
-    Increase the gain
-    Increase shutter speed / exposure time
-    Select a more light sensitive sensor
-    Select a more light sensitive lens

Without PoE

For single application we always advice to buy a GigE camera with PoE. A PoE GigE camera is easier to connect so you can quickly acquire the first images, because only a single ethernet cable has to be connected to supply both power and data to the camera (when using a PoE ethernet switch or PoE inserter). However due to price difference, as soon as volume is expected, the standard GigE camera without PoE is a very interesting option. The power of the standard GigE camera is supplied by the I/O cable. The standard GigE camera is cheaper, it gets less warm and is more compacter because it requires less electronics. However, for a standard GigE camera you will always need an I/O cable.
