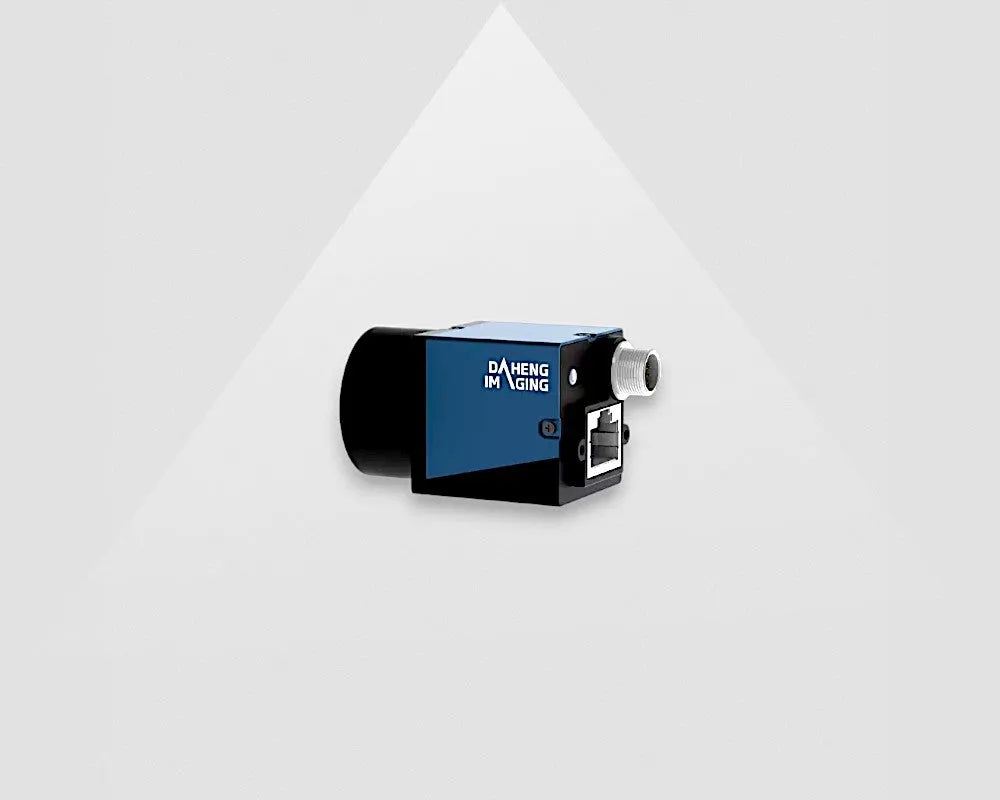

GigE Vision Camera

The Mercury GigE camera series is an industrial vision camera, with a GigE interface. GigE is the most common interface used for cameras in traditional machine vision applications. The camera is available with and without Power over Ethernet (PoE).
This model is interesting for you when your application complies with the following conditions:
-    An industrial camera
-    Maximum cable length of 100 meters
-    Inexpensive and easy installation of cables
-    Only one cable is required to connect the device (in case of PoE)

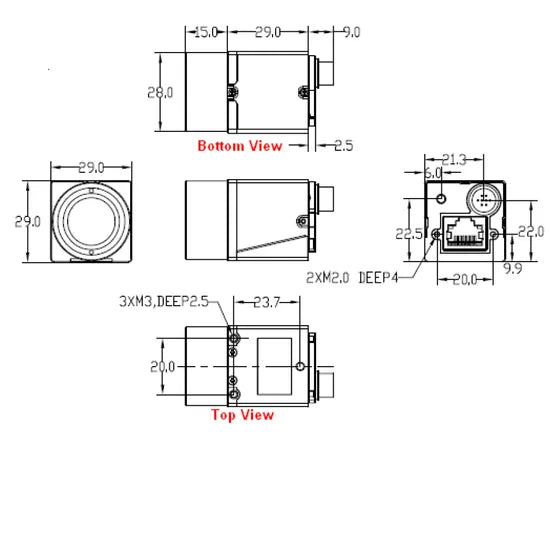

-    Dimensions are: 29x29x29mm (without PoE), 29x29x38 mm (with PoE)
-    Optional hardware triggering

If more details are required, the manual can be consulted.

Warranty & Product Life Cycle

Daheng Imaging produce yearly more than 100.000 industrial cameras according to the highest quality standards. The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is at least available for 7 years. Most cameras have even a much longer product life cycle. For more information about our product life cycle management, check this article.

Monochrome Camera

A black and white camera, also known as a monochrome camera, offers advantages in a variety of applications. While the market for security and telephony focusses on color cameras, the industrial market utilizes the advantages of black and white cameras. Black and white cameras are very light sensitive, provide sharp Images and reduces data compared to color. This makes it ideal for the processing of images. By selecting the right color as your light source and lens filter, a black and white camera can utilize the product its characteristics. Hereby men can create images with a large contrast and a high resolution.

Without PoE

A GigE camera without PoE is supplied via the I/O connector. The standard GigE camera is less expensive and generates less heat. The camera is more compact than the version with a PoE because less hardware is needed. Connecting a camera without using PoE always requires a I/O cable.
