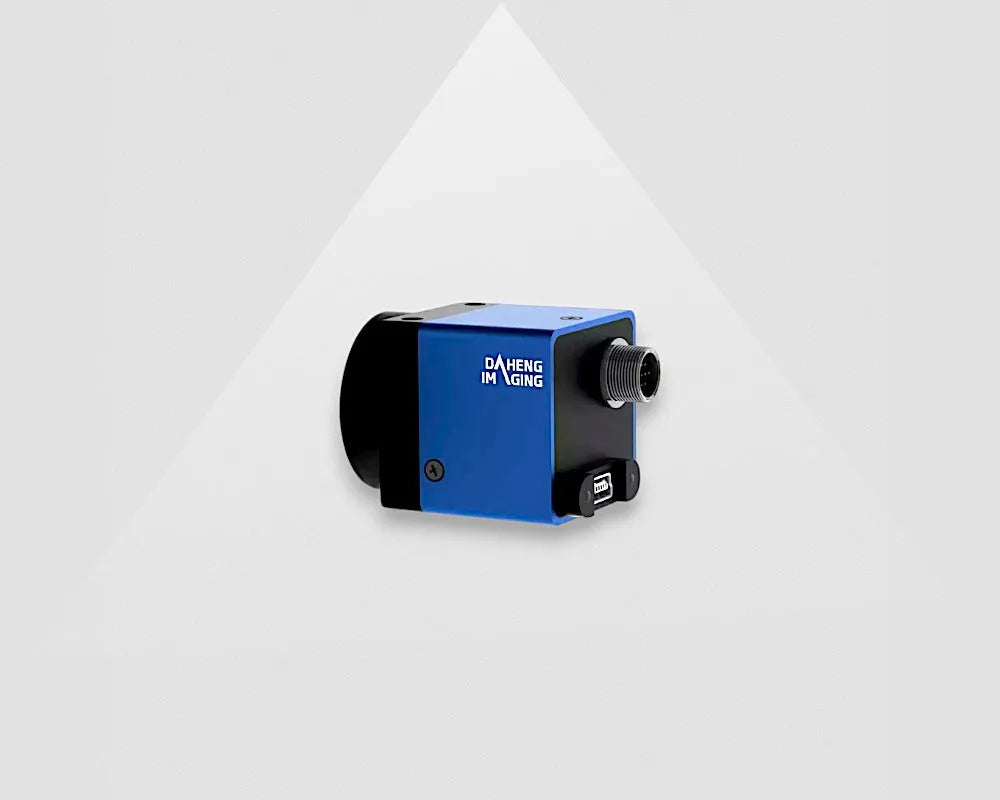

MER-500-7UC, EOL, Replacement is MER2-630-60U3C
MER-500-7UC
EOL
MER-500-7UC
- EOL
- Replacement is MER2-630-60U3C
Delivery time: Standard 3-6, Express 0-3 weeks
3 year warranty
Certified by TÜV Rheinland
Description
This model is interesting for you when your application complies with the following conditions:
- An inexpensive industrial camera
- Maximum cable length of 5 meters
- Only one cable is required to connect the device

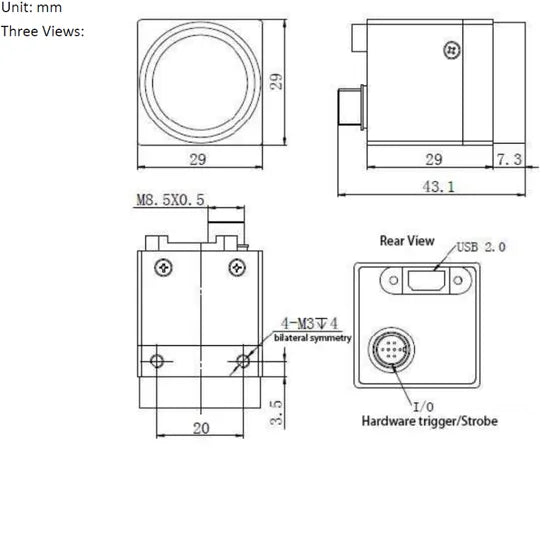

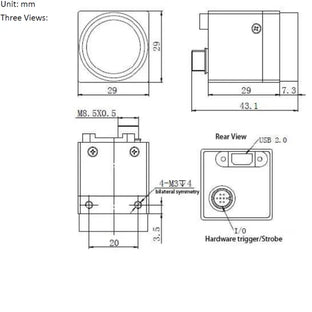

- Dimensions are: 29x29x29mm
- Optional hardware triggering
If more details are required, the manual can be consulted. More info
NOT RECOMMEND FOR NEW INDESIGN, Replacement is MER2-630-60U3C
USB2 Vision Camera
The Mercury USB2.0 camera series is an industrial vision camera, with an USB2.0 interface. USB2.0 is the most price competitive interface regarding industrial machine vision cameras.This model is interesting for you when your application complies with the following conditions:
- An inexpensive industrial camera
- Maximum cable length of 5 meters
- Only one cable is required to connect the device
- Dimensions are: 29x29x29mm
- Optional hardware triggering
If more details are required, the manual can be consulted. More info
Specifications
| Part number | MER-500-7UC |
| Camera interface | USB2 |
| Camera Resolution | 2592x1944 |
| Camera Frame rate (fps) | 7 |
| Camera pixel size (um) | 2.2 |
| Camera Color/Mono | Color |
| Camera Sensor type | Aptina MT9P031 |
| Camera sensor size | 1/2.5" |
| Camera Shutter Type | Rolling Shutter |
| Camera shutter time | 6us~1s |
| Camera ADC Bit Depth | 12bit |
Color Camera
A color camera makes use of a Bayer pattern to produce a colored image. The RGB value of every pixel is being calculated by taking the value of a pixel, in combination with all the values of neighboring pixels. This results into less sharp images than those of a monochrome camera.Due to the RGB filter on the pixels, every single pixel, considering white light, on average has 66% less photons than a monochrome camera. Which makes a color camera less light sensitive than a monochrome one. To compensate this, the following options are available:
- Increase the amount of light
- Increase the gain
- Increase shutter speed / exposure time
- Select a more light sensitive sensor
- Select a more light sensitive lens
With I/O
The I/O connector from a USB camera is an 8 pin HR25 Hirose connector, which is a standard in the industrial machine vision market. This camera has an input that can be used as a hardware trigger for the device. The output of the camera can be used to trigger a light source, for example: LED. Furthermore, the camera has two GPIO’s (General Purpose Input/ Output) which can be programmed by using our SDK. The electrical diagrams to use the I/O connector are provided in the manual.| Part number | MER-500-7UC |
| Camera interface | USB2 |
| Camera Resolution | 2592x1944 |
| Camera Frame rate (fps) | 7 |
| Camera pixel size (um) | 2.2 |
| Camera Color/Mono | Color |
| Camera Sensor type | Aptina MT9P031 |
| Camera sensor size | 1/2.5" |
| Camera Shutter Type | Rolling Shutter |
| Camera shutter time | 6us~1s |
| Camera ADC Bit Depth | 12bit |
| Camera pixel bit depth | 8bit, 12bit |
| Camera Digital Gain | TBD |
| Camera pixel data format | Bayer GR8/ Bayer GR10 |
| Camera synchronization | Hardware trigger, software trigger |
| Camera I/O | 1 opto-isolated input line and 1 opto isolated output line, 2 GPIO |
| Camera operating temp. | 0°C~45°C |
| Camera operating humidity | 10%~80% |
| Camera lens mount | C |
| Camera dimensions | 29x29x29mm |
| Camera SDK Software | Windows / Linux X86 (limited) |
| Camera power consumption | <1W |
| Camera weight (g) | 42 |
| Camera Conformity | RoHS, CE |
| Camera Megapixel | 5 |
| Partnumber old | MER-500-7UC |
