EOL | LAST TIME BUY 20-03-2021

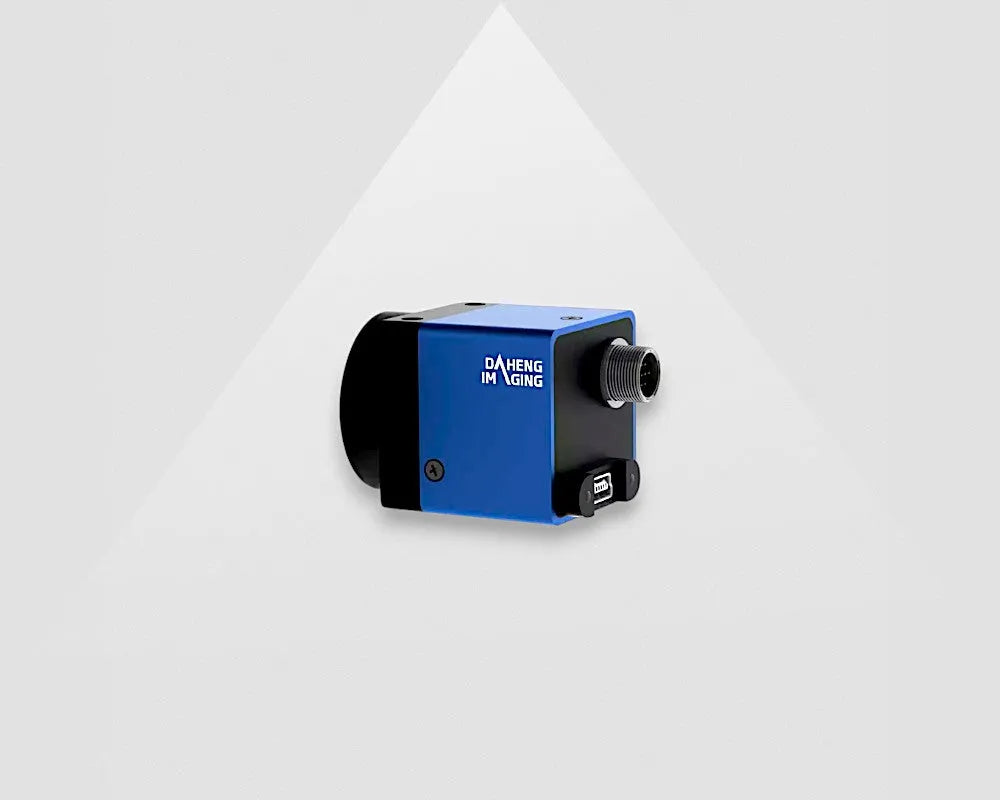

USB2 Vision Camera

The Mercury USB2.0 camera series is an industrial vision camera, with an USB2.0 interface. USB2.0 is the most price competitive interface regarding industrial machine vision cameras.
This model is interesting for you when your application complies with the following conditions:
-    An inexpensive industrial camera
-    Maximum cable length of 5 meters
-    Only one cable is required to connect the device
-    Dimensions are: 29x29x29mm
-    Optional hardware triggering

If more details are required, the manual can be consulted.

Color Camera

A color camera makes use of a Bayer pattern to produce a colored image. The RGB value of every pixel is being calculated by taking the value of a pixel, in combination with all the values of neighboring pixels. This results into less sharp images than those of a monochrome camera.
Due to the RGB filter on the pixels, every single pixel, considering white light, on average has 66% less photons than a monochrome camera. Which makes a color camera less light sensitive than a monochrome one. To compensate this, the following options are available:
-    Increase the amount of light
-    Increase the gain
-    Increase shutter speed / exposure time
-    Select a more light sensitive sensor
-    Select a more light sensitive lens

With I/O:

The I/O connector from a USB camera is an 8 pin HR25 Hirose connector, which is a standard in the industrial machine vision market. This camera has an input that can be used as a hardware trigger for the device. The output of the camera can be used to trigger a light source, for example: LED. Furthermore, the camera has two GPIO’s (General Purpose Input/ Output) which can be programmed by using our SDK. The electrical diagrams to use the I/O connector are provided in the manual.
