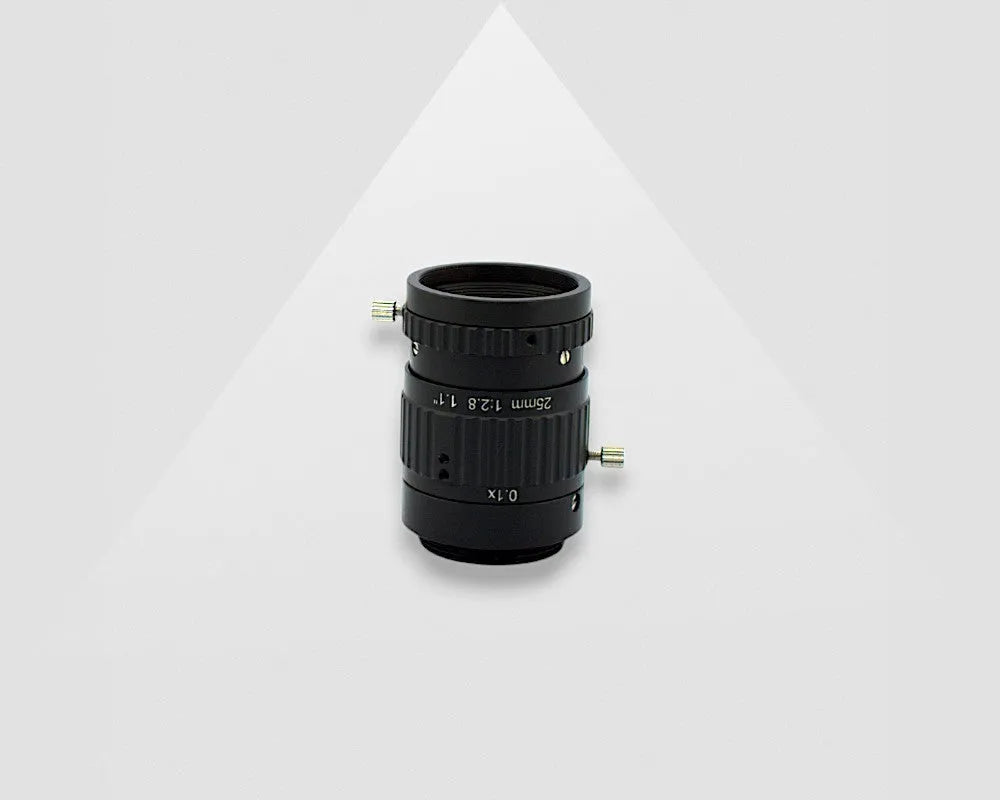

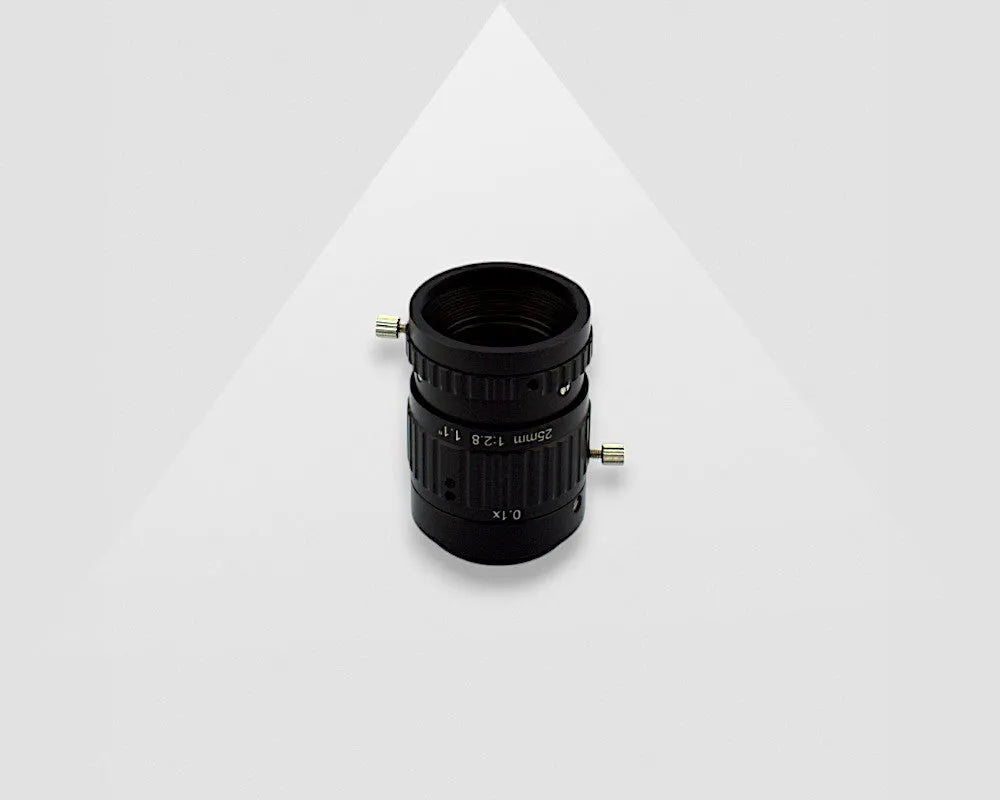

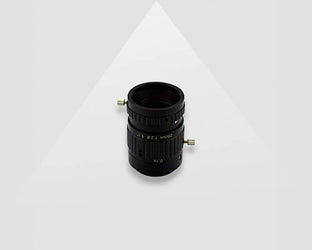

VA-LCM-12MP-25MM-F2.8-110-MACRO, LENS C-mount 12MP 25MM F2.8 1.1 inch NON DISTORTION

VA-LCM-12MP-25MM-F2.8-110-MACRO Lens C-mount
VA-LCM-12MP-25MM-F2.8-110-MACRO
  • LENS C-mount 12MP 25MM F2.8 1.1 inch NON DISTORTION
€395,00
Delivery time: Standard 3-6, Express 0-3 weeks
Industrial Quality
Machine Vision
Description


The VA-LCM-12MP Macro series are designed for high resolution applications where a short working distance is required. Please note these lenses can focus close by but can't focus on infinity! The 12MP lens is designed for cameras with a 1.1" sensor or smaller, to create sharp images. The VA-LCM-12MP Macro series has multiple focal lengths to assure the right working distance can be met for each application. The iris and focus are adjustable and can be fixed by a screw.

The following table show for the 25MM focal length lens the field of view, when making use of a close-up ring. For different close up rings it shows the field of view for the minimum working distance (WD) and the maximum working distance (WD) of this lens in combination with the close-up ring. Check out the tables to decide which focal length and close-up ring combination is the best for your application.

25MM Macro lens close-up ring table

More info

Specifications

Part number VA-LCM-12MP-25MM-F2.8-110-MACRO
Lens resolution (megapixel) 12
Lens Image format / circle 1.1"
Lens focal length (mm) 25
Lens aperture / iris Manual iris
Lens aperture (min) F2.8
Lens minimum object distance (MOD) - Max 65mm - 260.4mm
Lens mount C

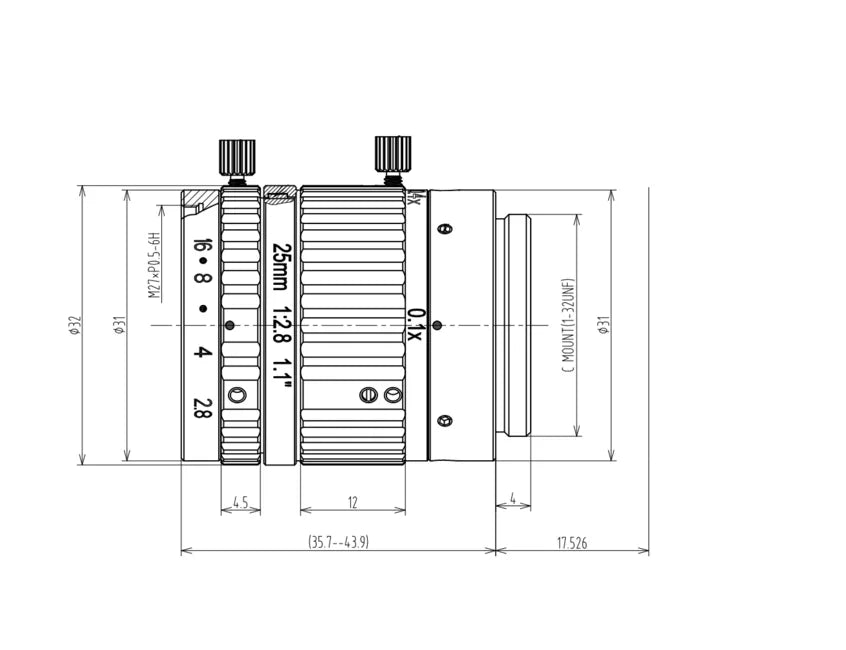

Lens dimensions 32x35.7 / 43.9mm
Lens distortion < 0.07%
Lens filter thread M27xP0.5
See all specs

Downloads

Need the VA-LCM-12MP-25MM-F2.8-110-MACRO 3D stepfiles, MTF chart or lens manual?

Do you have a question about the VA-LCM-12MP-25MM-F2.8-110-MACRO?

Ask us your question via

Part number VA-LCM-12MP-25MM-F2.8-110-MACRO
Lens resolution (megapixel) 12
Lens Image format / circle 1.1"
Lens focal length (mm) 25
Lens aperture / iris Manual iris
Lens aperture (min) F2.8
Lens minimum object distance (MOD) - Max 65mm - 260.4mm
Lens mount C
Lens dimensions 32x35.7 / 43.9mm
Lens distortion < 0.07%
Lens filter thread M27xP0.5
Lens weight (g) 56
Partnumber old LCM-12MP-25MM-F2.8-1.1-MACRO
€395,00
