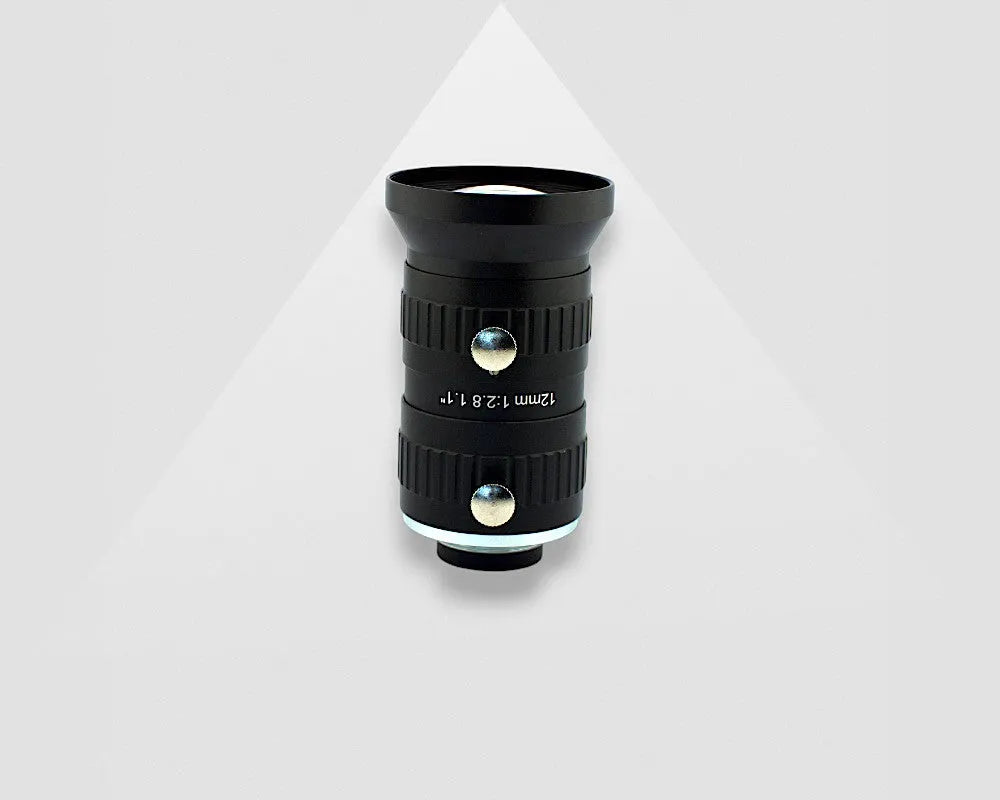

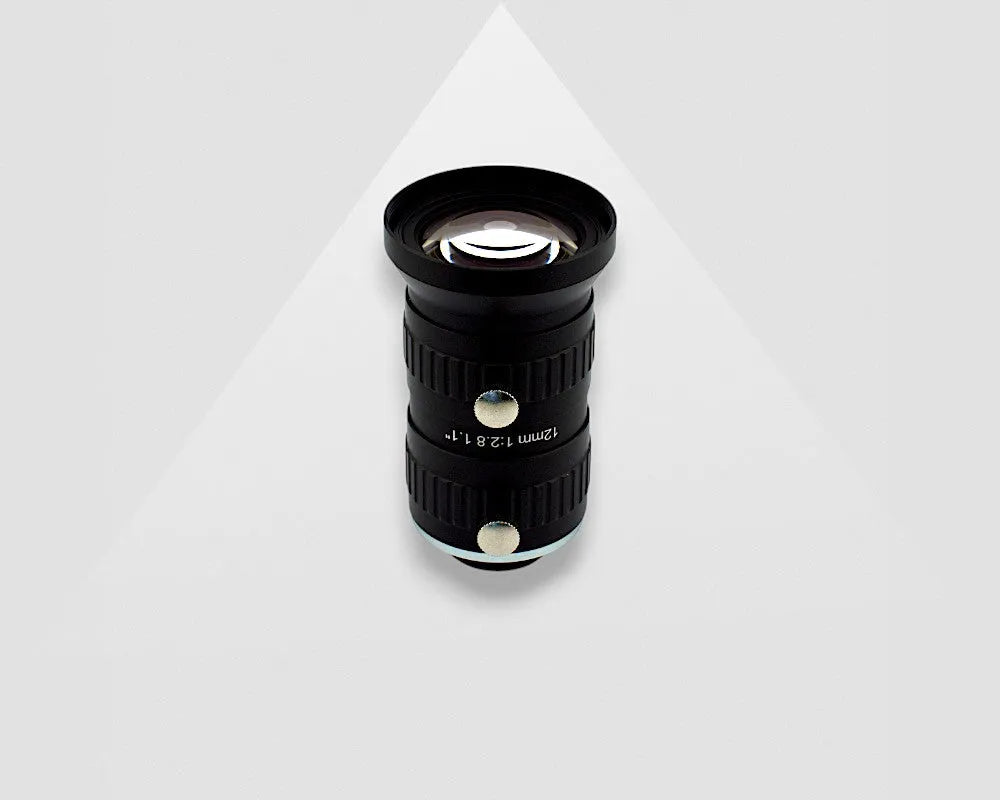

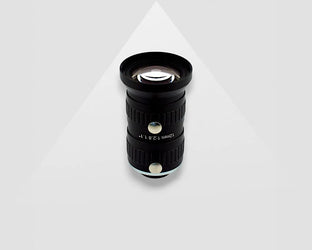

VA-LCM-25MP-12MM-F2.8-110, LENS C-mount 25MP 12MM F2.8 1.1 inch NON DISTORTION
- LENS C-mount 25MP 12MM F2.8 1.1 inch NON DISTORTION
The 25MP 12MM C-mount lens is part of the 25MP 1.1” lens series. To guarantee the right working distance for your application, a range of focal lengths are available in this lens series. This VA-LCM-25MP-12MM-F2.8-110 lens has a 12MM focal length and F-number of 2.8.
25MP 12MM C-mount lens
Both the iris and focus of this 25MP 12MM C-mount lens can be adjusted, screws can be used to fasten them. Additionally, the VA-LCM-25MP-12MM-F2.8-110 lens features a C-mount for easy mounting on your machine vision camera. Our C-mount lenses are designed to meet the durability and reliability requirements of industrial environments. They are built to withstand challenging industrial conditions. The 25MP 12MM C-mount lens is built completely from glass and metal elements.
More infoSpecifications
| Part number | VA-LCM-25MP-12MM-F2.8-110 |
| Lens resolution (megapixel) | 25 |
| Lens Image format / circle | 1.1" |
| Lens focal length (mm) | 12 |
| Lens aperture / iris | Manual iris |
| Lens aperture (min) | F2.8 |
| Lens minimum object distance (MOD) - Max | 100mm - Infinity |
| Lens mount | C |

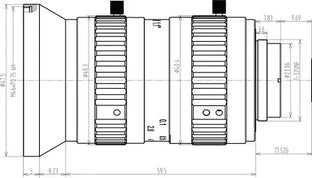

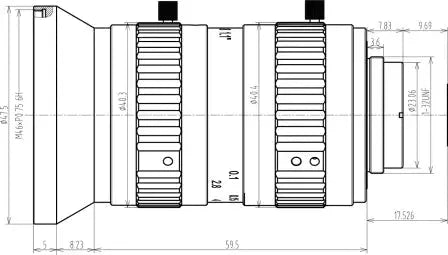

| Lens dimensions | 47.5x72.7mm |
| Lens distortion | < 0.3% |
| Lens filter thread | M46xP0.75 |
Do you have a question about the VA-LCM-25MP-12MM-F2.8-110?
Ask us your question via
Lens for Sony IMX sensors cameras
The 25MP 1.1” lens series is compatible with a variety of industrial cameras because of this standardized C-mount thread. This 25MP 12MM C-mount lens is often being used in combination with the following camera sensors:
• Sony IMX541
• Sony IMX542
You will notice that when you click on the links that the Sony IMX sensors are employed in USB3 and GigE cameras. The cameras are available in both color and mono version. The combination of our 25MP 12MM C-mount lens with these sensors are often used for quality control, automation, inspection and robotics.
Resolving power of the 25MP 1.1” lens series
To create sharp images, we advise to combine the 25MP 1.1” lens series with industrial cameras that have up to 25MP resolution. The recommended cameras pixel size for this 25MP 12MM C-mount lens is 2.5μm. It has a resolving power of 250 line pairs per mm (lp/mm). The resolving power is determined by the number of pairs of black and white lines that can be distinguished. This is measured per millimeter of image space. A higher number of line pairs per mm indicates a higher spatial resolution, therefor the camera or lens system can resolve finer details in the image. For a complete overview of all our other lenses and their lens resolution, visit our download page.
25MP 12MM C-mount Lens Product Life Cycle Management
The 25MP 12MM C-mount lens is sold in large numbers and will be produced for a long time. Nearly every lens model that has been introduced since our start still remains in stock. Additionally, if the VA-LCM-25MP-12MM-F2.8-110 lens approaches its End of Life (EOL), we are committed to keeping you informed. All of our customers will receive a final notification for an opportunity for a last-time buy. We also assure that after EOL that a new production run can always be initiated with a Minimum Order Quantity (MOQ) of 300 pieces of the 25MP 12MM C-mount lens.
Quality control & warranty of 25MP 12MM C-mount lens
The lens production quality control process is built on several methodical steps. The process for lenses such as the 25MP 12MM C-mount lens starts with a quality check of the incoming raw materials and the production line preparation. This preparation includes a check of workers PPE (Personal protective equipment) and the cleaning of equipment. During production, each step follows a strict process controlled by visual or tool aided inspections. Each product finishes production with a final inspection, confirming that optical and mechanical requirements are met. In addition, sample control inspections are performed before shipping.
This process generates comprehensive reports that covers all aspects of production. If at any time, the 25MP 12MM C-mount lens doesn’t comply with the given quality standards then it will be classified as abnormal. Action will be taken to guarantee the quality of the batch and the procedure. Consistent monitoring ensures that quality is maintained from the raw materials to the finished product.
| Part number | VA-LCM-25MP-12MM-F2.8-110 |
| Lens resolution (megapixel) | 25 |
| Lens Image format / circle | 1.1" |
| Lens focal length (mm) | 12 |
| Lens aperture / iris | Manual iris |
| Lens aperture (min) | F2.8 |
| Lens minimum object distance (MOD) - Max | 100mm - Infinity |
| Lens mount | C |
| Lens dimensions | 47.5x72.7mm |
| Lens distortion | < 0.3% |
| Lens filter thread | M46xP0.75 |
| Lens weight (g) | 230 |
| Partnumber old | LCM-25MP-12MM-F2.8-1.1-ND1 |
