VA-LFM-29MP-35MM-F2.8-45C, LENS F-mount 29MP 35MM F2.8 ImageCircle=45mm NON DISTORTION

VA-LFM-29MP-35MM-F2.8-45C Lens F-mount
VA-LFM-29MP-35MM-F2.8-45C
  • LENS F-mount 29MP 35MM F2.8 ImageCircle=45mm NON DISTORTION
€564,00
Delivery time: Standard 3-6, Express 0-3 weeks
Industrial Quality
Machine Vision

Description

The VA-LFM-29MP is a high resolution (29MP) lens serie designed for industrial cameras and 4K linescan cameras. The F-mount lens series have an image circle between 43 and 64mm. The VA-LFM-29MP serie has multiple focal lengths to assure the right working distance can be met for each application. The iris and focus are adjustable and can be fixed by a screw.

More info

Specifications

Part number VA-LFM-29MP-35MM-F2.8-43C
Lens resolution (megapixel) 29
Lens Image format / circle 45mm
Lens focal length (mm) 35
Lens aperture / iris Manual iris
Lens aperture (min) F2.8
Lens minimum object distance (MOD) - Max 160mm - 730mm
Lens mount F-mount

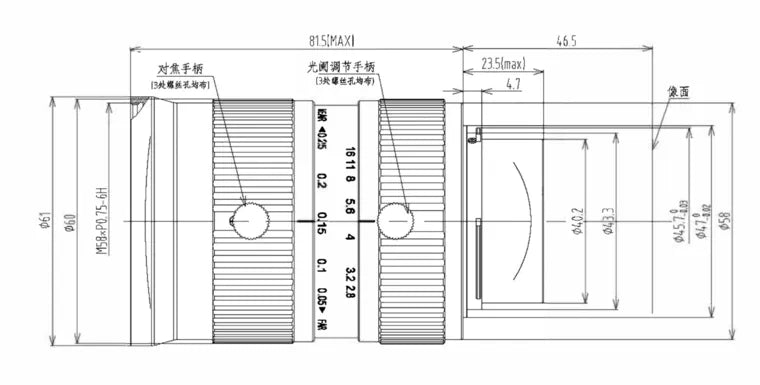

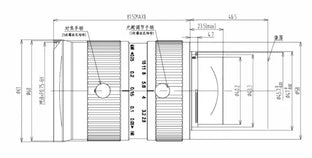

Lens dimensions 61x81.5mm
Lens distortion < 0.4%
Lens filter thread M58xP0.75
See all specs

Downloads

Need the VA-LFM-29MP-35MM-F2.8-45C 3D stepfiles, MTF chart or lens manual?

Do you have a question about the VA-LFM-29MP-35MM-F2.8-45C?

Ask us your question via

Part number VA-LFM-29MP-35MM-F2.8-43C
Lens resolution (megapixel) 29
Lens Image format / circle 45mm
Lens focal length (mm) 35
Lens aperture / iris Manual iris
Lens aperture (min) F2.8
Lens minimum object distance (MOD) - Max 160mm - 730mm
Lens mount F-mount
Lens dimensions 61x81.5mm
Lens distortion < 0.4%
Lens filter thread M58xP0.75
Partnumber old LFM-29MP-35MM-F2.8-45-ND1
