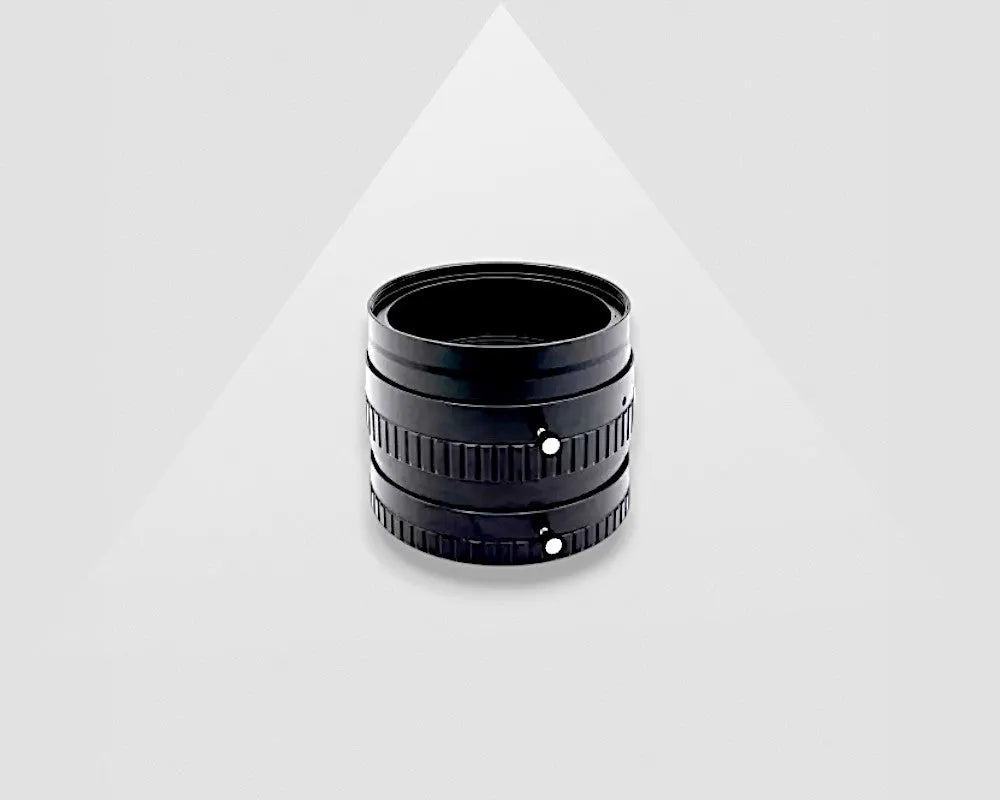

VA-LFM-29MP-60MM-F4-64C, LENS F-mount 29MP 60MM F4 ImageCircle=64mm NON DISTORTION

VA-LFM-29MP-60MM-F4-64C Lens F-mount
VA-LFM-29MP-60MM-F4-64C
  • LENS F-mount 29MP 60MM F4 ImageCircle=64mm NON DISTORTION
€564,00
Delivery time: Standard 3-6, Express 0-3 weeks
Industrial Quality
Machine Vision
Description

The VA-LFM-29MP is a high resolution (29MP) lens serie designed for industrial cameras and 4K linescan cameras. The F-mount lens series have an image circle between 43 and 64mm. The VA-LFM-29MP serie has multiple focal lengths to assure the right working distance can be met for each application. The iris and focus are adjustable and can be fixed by a screw.

More info

Specifications

Part number VA-LFM-29MP-60MM-F4-64C
Resolution (megapixel) 29
Image format / circle 64mm
Focal length (mm) 60
Aperture / iris Manual iris
Aperture (min) F4.0
Minimum object distance (MOD) - Max 200mm - 1538mm
Mount F-mount

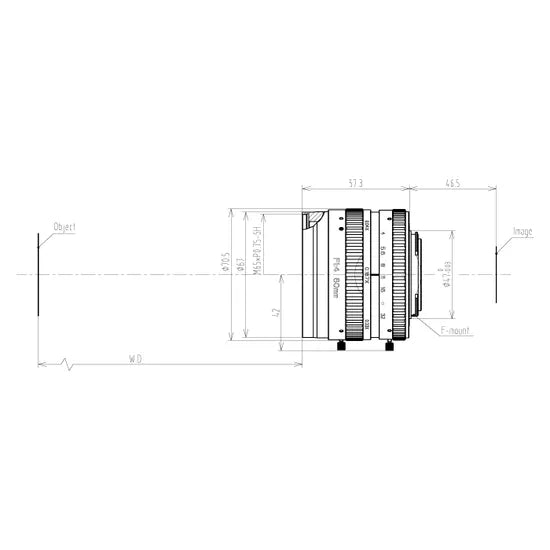

Dimensions 70.5x57.3mm
Distortion < 0.2%
Filter thread M65xP0.75
See all specs

Download manual

Need the VA-LFM-29MP-60MM-F4-64C 3D stepfiles, MTF chart or lens manual?

Do you have a question about the VA-LFM-29MP-60MM-F4-64C?

Ask us your question via

Part number VA-LFM-29MP-60MM-F4-64C
Resolution (megapixel) 29
Image format / circle 64mm
Focal length (mm) 60
Aperture / iris Manual iris
Aperture (min) F4.0
Minimum object distance (MOD) - Max 200mm - 1538mm
Mount F-mount
Dimensions 70.5x57.3mm
Distortion < 0.2%
Filter thread M65xP0.75
Partnumber old LFM-29MP-60MM-F4-64-ND1
