VA-LFM-65MP-35MM-F4-38C, LENS F-mount 65MP 35MM F4 ImageCircle=38mm NON DISTORTION

VA-LFM-65MP-35MM-F4-38C Lens F-mount
VA-LFM-65MP-35MM-F4-38C
  • LENS F-mount 65MP 35MM F4 ImageCircle=38mm NON DISTORTION
€1.104,00
Delivery time: Standard 3-6, Express 0-3 weeks
Industrial Quality
Machine Vision
Description

The VA-LFM-65MP is a 65MP industrial F-mount lens serie designed for industrial cameras with a pixel size of 3.2um or bigger. Standard this serie has a F-mount, however starting at 20 pieces, this lens can also be delivered as M58 mount. The VA-LFM-65MP serie has multiple focal lengths to assure the right working distance can be met for each application. The aperture and focus are adjustable and can be fixed by a screw. These lenses are a perfect fit for the GPIXEL GMAX3249, GMAX3265, GSPRINT4521 and for the Sony IMX342 sensors that are used in industrial F-mount cameras.

More info

Specifications

Part number VA-LFM-65MP-80MM-F4-38C
Resolution (megapixel) 65
Image format / circle 38mm
Focal length (mm) 35
Aperture / iris Manual iris
Aperture (min) F4.0
Minimum object distance (MOD) - Max 100mm - Infinity
Mount F-mount

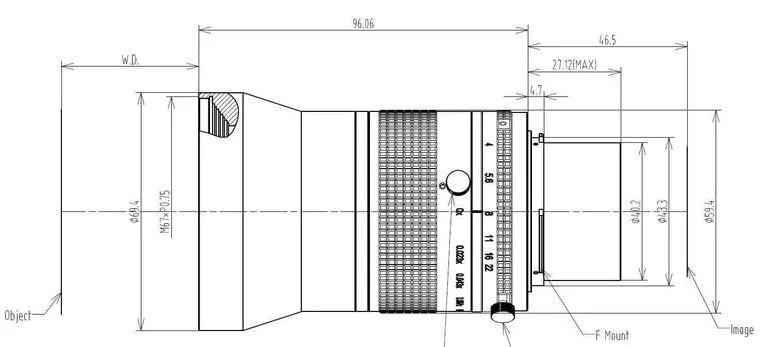

Dimensions 69.4x96.06mm
Distortion < 0.7%
Filter thread M67xP0.75
See all specs

Download manual

Need the VA-LFM-65MP-35MM-F4-38C 3D stepfiles, MTF chart or lens manual?

Do you have a question about the VA-LFM-65MP-35MM-F4-38C?

Ask us your question via

Part number VA-LFM-65MP-80MM-F4-38C
Resolution (megapixel) 65
Image format / circle 38mm
Focal length (mm) 35
Aperture / iris Manual iris
Aperture (min) F4.0
Minimum object distance (MOD) - Max 100mm - Infinity
Mount F-mount
Dimensions 69.4x96.06mm
Distortion < 0.7%
Filter thread M67xP0.75
Partnumber old LFM-65MP-35MM-F4-38-ND1
€1.104,00
