VA-LM42-29MP-20MM-F4.5-30C, LENS M42 29MP 20MM F4.5 ImageCircle=30mm NON DISTORTION

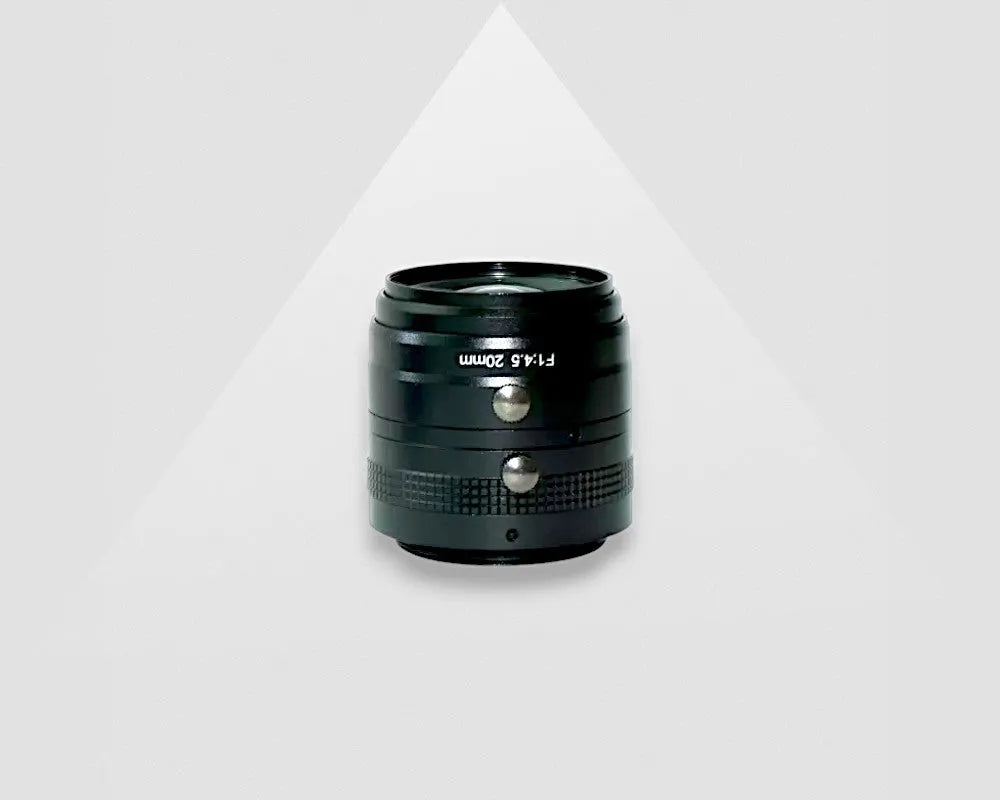

VA-LM42-29MP-20MM-F4.5-30C Lens M42-mount
VA-LM42-29MP-20MM-F4.5-30C
  • LENS M42 29MP 20MM F4.5 ImageCircle=30mm NON DISTORTION
€560,00
Delivery time: Standard 3-6, Express 0-3 weeks
Industrial Quality
Machine Vision
Description

The VA-LM42-29MP is a high resolution (29MP) lens serie designed for industrial cameras and 4K linescan cameras. The M42 mount lens series have an image circle of 30mm. The VA-LM42-29MP serie has multiple focal lengths to assure the right working distance can be met for each application. The iris and focus are adjustable and can be fixed by a screw.

More info

Specifications

Part number VA-LM42-29MP-20MM-F4.5-30C
Resolution (megapixel) 29
Image format / circle 30mm
Focal length (mm) 20
Aperture / iris Manual iris
Aperture (min) F4.5
Minimum object distance (MOD) - Max 500mm - Infinity
Mount M42
Dimensions 52x47.4mm
Distortion < 0.2%
Filter thread M43xP0.75
See all specs

Download manual

Need the VA-LM42-29MP-20MM-F4.5-30C 3D stepfiles, MTF chart or lens manual?

Do you have a question about the VA-LM42-29MP-20MM-F4.5-30C?

Ask us your question via

Part number VA-LM42-29MP-20MM-F4.5-30C
Resolution (megapixel) 29
Image format / circle 30mm
Focal length (mm) 20
Aperture / iris Manual iris
Aperture (min) F4.5
Minimum object distance (MOD) - Max 500mm - Infinity
Mount M42
Dimensions 52x47.4mm
Distortion < 0.2%
Filter thread M43xP0.75
Partnumber old LM42-29MP-20MM-F4.5-30-ND1
€560,00
