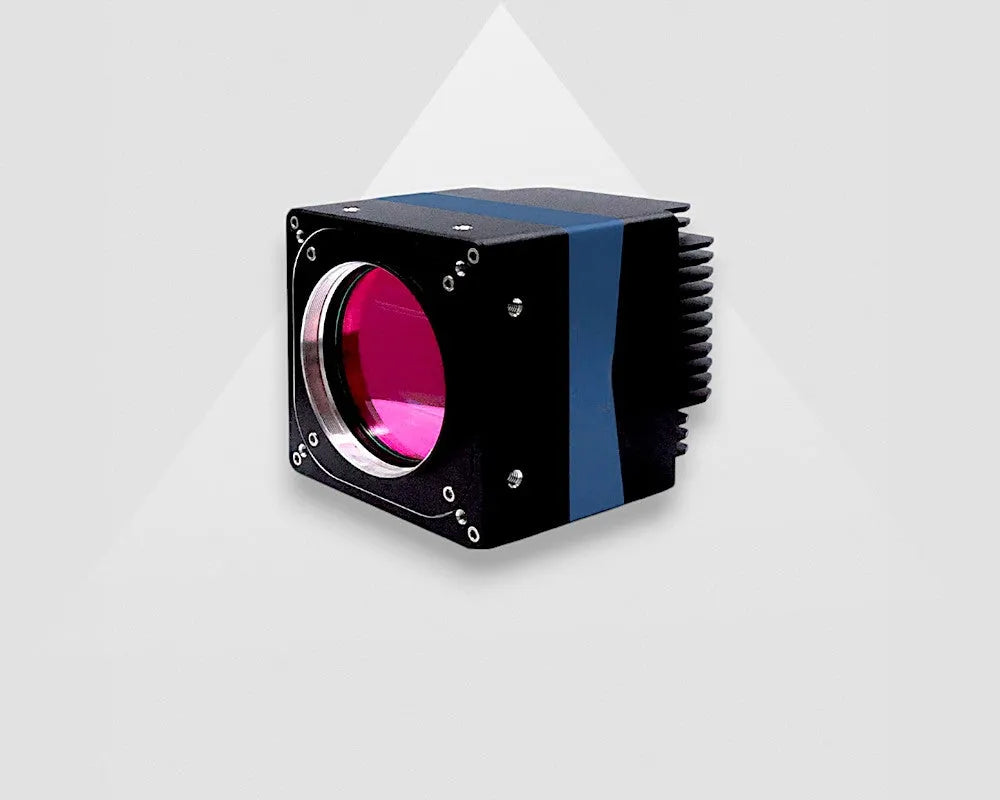

CoaXPress Vision Camera

The MARS-10300-24X2M-TF is a high-performance 103 megapixel CoaXPress industrial camera designed for advanced machine vision applications. This camera offers exceptional image quality and high-speed data transmission, making it ideal for demanding industrial inspection, scientific research, and medical imaging tasks. By use of a CoaXPress interface we are able to deliver very high-resolution images at high framerates. The interface is designed to provide a stable and fast connection between the camera and the frame grabber. To fully give you the best experience the camera comes with a frame grabber and cable set included. To make full use of the GMAX32103 sensor, the camera comes with an M72 mount, see our recommended lens here. This CoaXPress model is interesting for you when your application complies with the following conditions:

An industrial CoaXPress camera

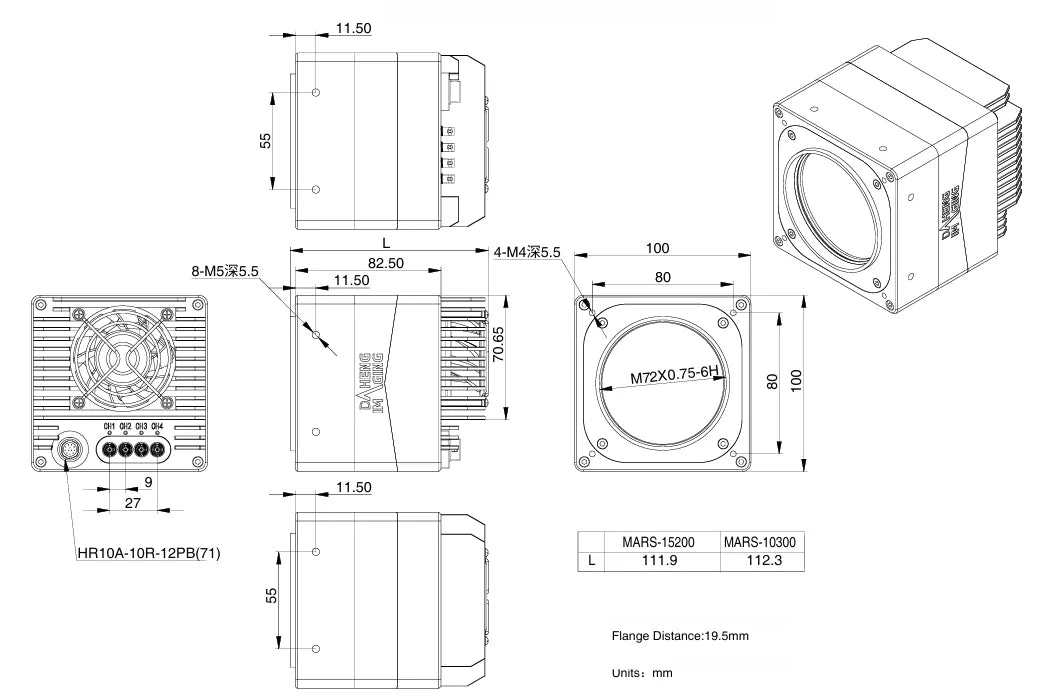

Dimensions are: 100x100x112.3mm
M72 mount

If more details are required, the manual can be consulted.

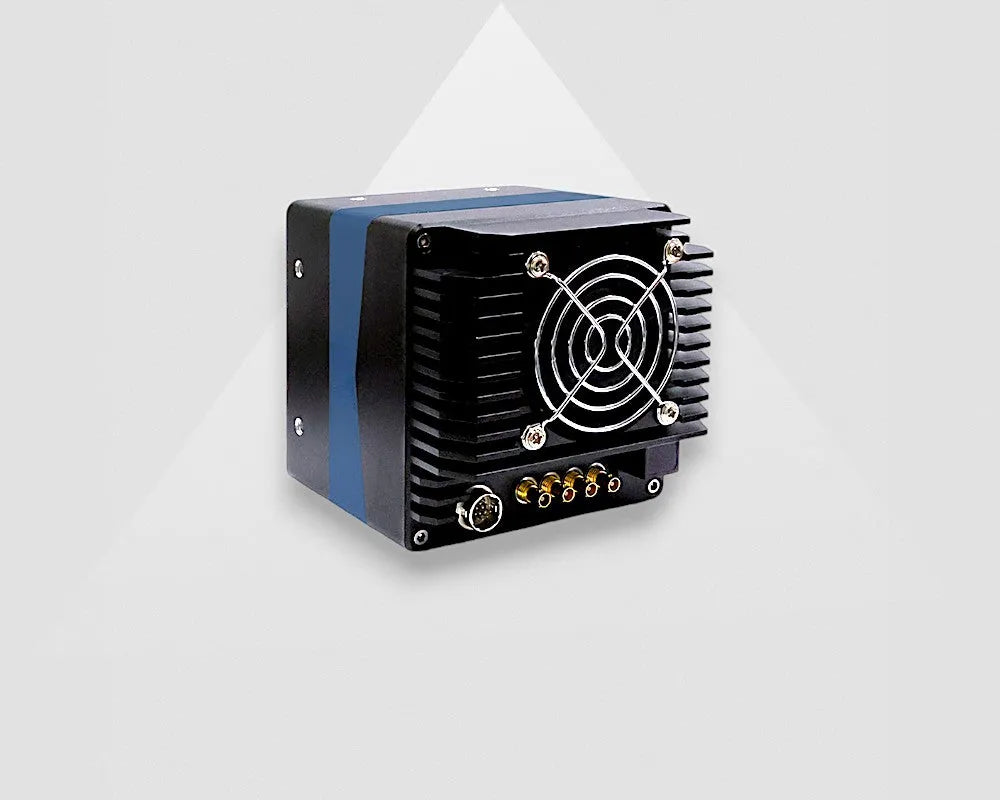

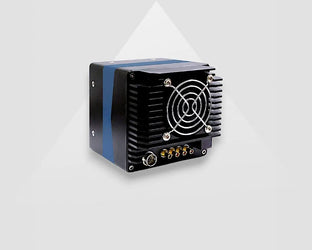

Thermoelectric cooling (TEC) with a fan

The camera is equipped with TEC and cooling fan, which can effectively reduce thermal noise and generate high-quality images.

Utilizing the Peltier effect, the thermoelectric cooling (TEC) technology ensures precise control, maintaining the COMS image sensors operating temperature at a constant value. The temperature of the sensor can be capped up to 15°C below ambient levels. This innovative cooling mechanism not only establishes a stable operating environment but also enables extended exposure times and significantly enhances the sensitivity of camera. Such features make it an ideal fit for rigorous requirements, for instance those found in the medical industry.

In addition to the standard thermoelectric cooling, the thermoelectric cooling with fan provides a more precise temperature control of the sensor. A lower sensor temperature, compared to the non-fan model, may be possible depending on the application and ambient conditions.

Monochrome Industrial Camera

A black and white camera, also known as a monochrome camera, offers advantages in a variety of applications. While the market for security and telephony focuses on color cameras, the industrial market utilizes the advantages of black and white cameras. Black and white cameras are very light sensitive, provide sharp images and reduces data compared to color. This makes it ideal for the processing of images. By selecting the optimal lighting color and lens filter, product characteristics can be highlighted. Enabling the creation of high-resolution images with high contrast using a monochrome cameras.

MTBF, Warranty & Product Life Cycle

Each year, Daheng Imaging produces more than 100.000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is available for at least 7 years. Most cameras have a much longer product life cycle. For more information about our product life cycle management, check this article.
