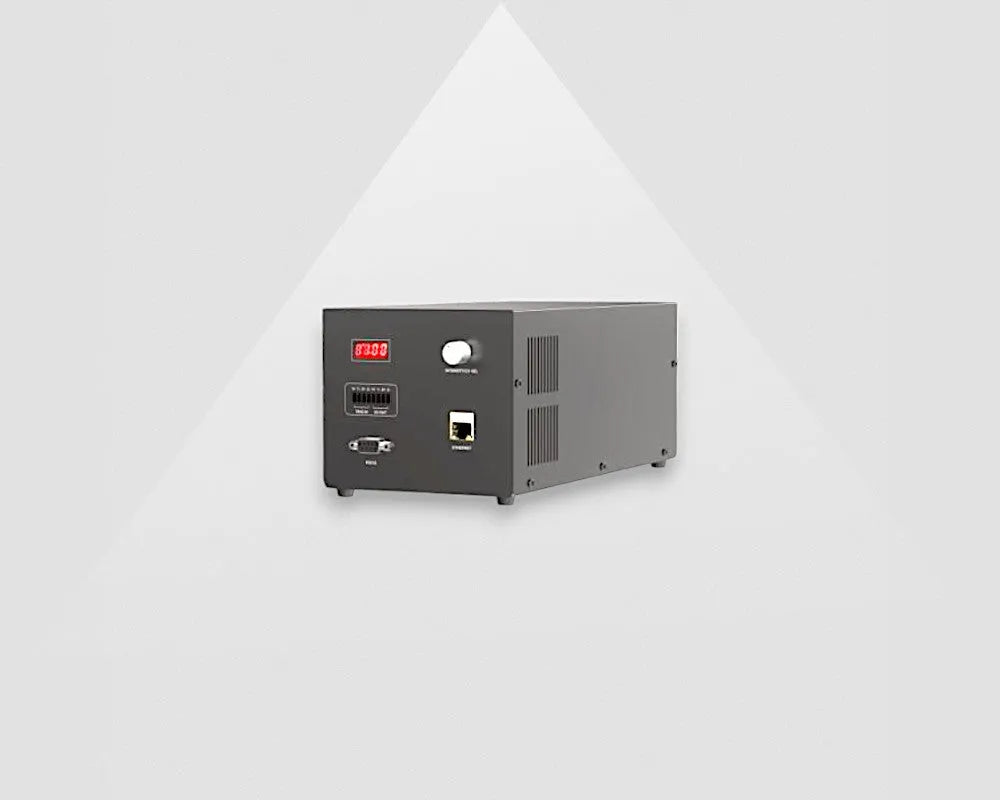

Industrial Machine Illumination Power Supply Digital Series 48V

Four channel powersupply / machine vision light controller, to independently control the

light intensity of 2 different machine vision lights. The powersupply has a 230V input and 2x 48V output channels. Max 6A per channel and it can deliver up to 550 Watt in total. Each channel can be triggered seperatly. This powersupply is ideal for adjusting the power of your industrial machine vision light. This machine vision lighting controller / powersupply includes a mount for Din Rail.

Characteristics

0 ~ 255 stepless light intensity control
External trigger input for strobe lighting
Mains powered
Built in over-current protection
DIN-rail or bottom screw mounting options
Configurable over RS232 or Ethernet

How To Trigger The Lights

The light can be triggered using the Triggering ports on the power supply. The wiring diagram for using our industrial cameras is shown below. Triggering the LED light instead of leaving it continuously on will increase the life span of the LED light. Each light channel can be triggered separately. The intensity of the light can be controlled by the rotary knob.

Download Power Supply Datasheet

In our bar light datasheet you find the mechanical dimensions, wavelengths, operating temperature, compatible powersupplies and so on. Login using your email address and get instantly access to our bar light datasheets.
