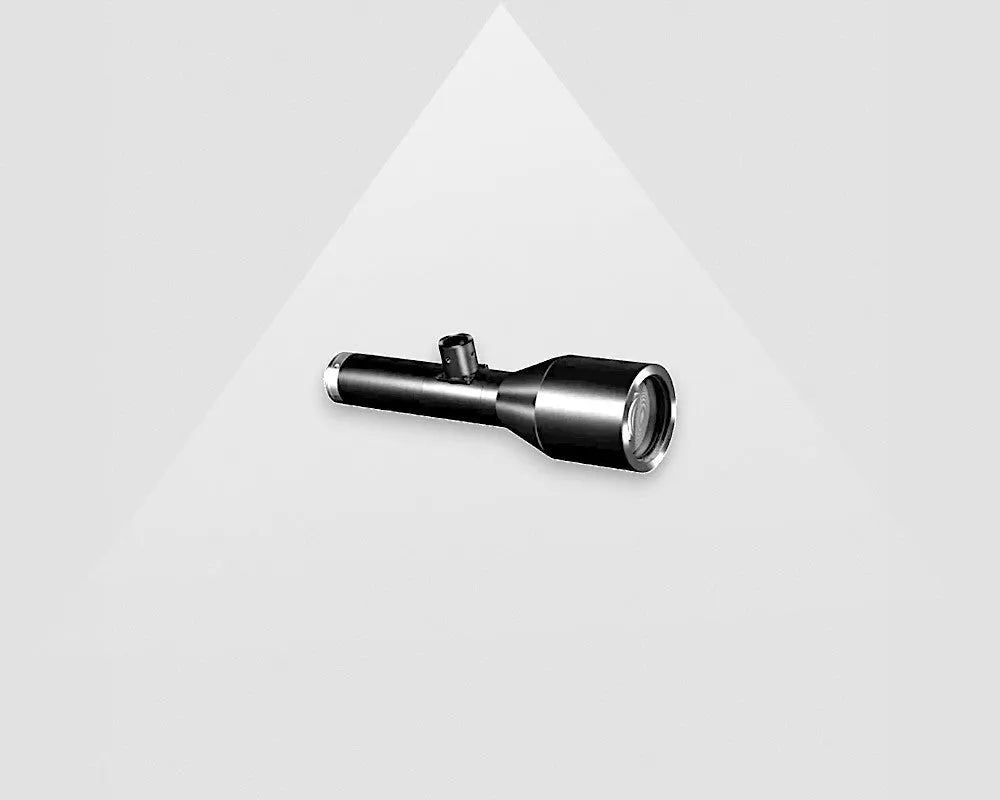

VA-LCM-TC-1-0.55X-WD220-110, Telecentric C-mount lens, Magnification 0.55x, Sensorsize 1.1”
- Telecentric C-mount lens
- Magnification 0.55x
- Sensorsize 1.1”
Description
Telecentric lens
The LCM-TELECENTRIC series for 1.1” sensors are object side Telecentric lenses that are designed for accurate measurement applications. The telecentric lens is designed for 5MP-20MP industrial c-mount cameras. The series has multiple magnifications and working distances to assure the right field of view can be met for each application.
More infoSpecifications
| Part number | VA-LCM-TC-1-0.55X-WD220-110 |
| Lens Image format / circle | 1.1" |
| Lens aperture / iris | Fixed iris |
| Lens aperture (min) | F10.1 |
| Lens minimum object distance (MOD) - Max | 220mm |
| Lens mount | C |

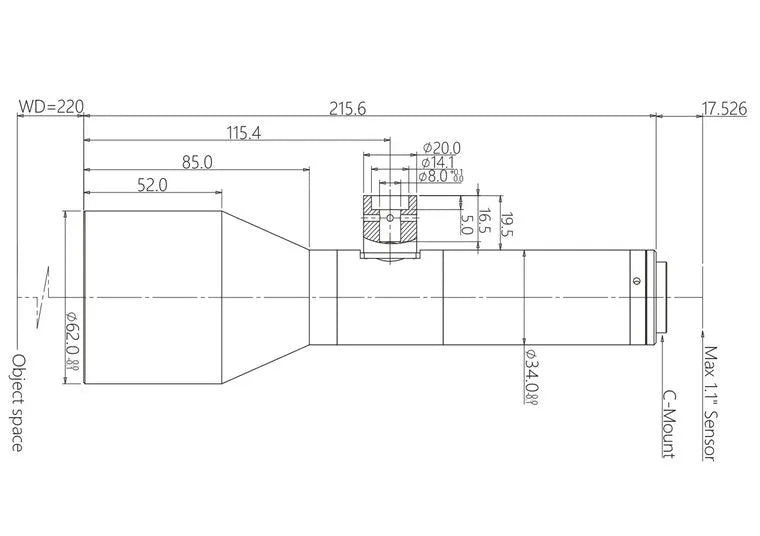

| Lens dimensions | 62x215.6mm |
| Lens distortion | < 0.1% |
| Lens coaxial light input | true |
| Lens magnification | 0.55 |
| Lens field of view (FOV) | 25.8x18.9mm |
Do you have a question about the VA-LCM-TC-1-0.55X-WD220-110?
Ask us your question via
Coaxial light input option
Most telecentric lenses, with a magnification of 0.5x or higher, have the option for a coaxial light input. If the part number starts with VA-LCM-TC-1, the lens has a coaxial light input, while if it starts with VA-LCM-TC-0, the lens has no coaxial light input.
The coaxial light input is ideal for illuminating flat shiny surfaces, like metal and printed circuit boards. To use the coaxial light input, we recommend our LED spot VA-SLC-8MM-W-12V.
Coaxial Light Input and Hotspots
Using a coaxial light input with this lens can potentially introduce a hotspot on the image. This hotspot is caused by the direct reflection of light from the lens's internal prism. The severity of the hotspot can vary depending on factors such as the lens design, the light source used, and the reflection on the application. While this may not be a significant issue for some applications, it could impact image quality in others, particularly those requiring high dynamic range or low-noise images.
| Part number | VA-LCM-TC-1-0.55X-WD220-110 |
| Lens Image format / circle | 1.1" |
| Lens aperture / iris | Fixed iris |
| Lens aperture (min) | F10.1 |
| Lens minimum object distance (MOD) - Max | 220mm |
| Lens mount | C |
| Lens dimensions | 62x215.6mm |
| Lens distortion | < 0.1% |
| Lens coaxial light input | true |
| Lens magnification | 0.55 |
| Lens field of view (FOV) | 25.8x18.9mm |
| Lens depth of field (DOF) | ±1.3@F10.1 |
| Partnumber old | LCM-TELECENTRIC-0.55X-WD220-1.1-CO |
