VEN-134-90U3M-D-NIR, Dual Head, 1280x1024, 90fps, 1/2", Global shutter, CMOS, NIR

VEN-134-90U3M-D-NIR Camera USB3 Vision
VEN-134-90U3M-D-NIR
  • Dual Head
  • 1280x1024
  • 90fps
  • 1/2"
  • Global shutter
  • CMOS
  • NIR
VEN-134-90U3M-D-NIR, Dual Head, 1280x1024, 90fps, 1/2", Global shutter, CMOS, NIR VEN-134-90U3M-D-NIR
€579,00
Delivery time: Standard 3-6, Express 0-3 weeks
3 year warranty
Certified by TÜV Rheinland

Description

  • Ultra small and flexible
  • 1/2" Global Shutter CMOS sensor
  • Compatible with GenICam™ and USB3.0 Vision®
  • USB3.0 Interface
  • 1.3 Megapixels

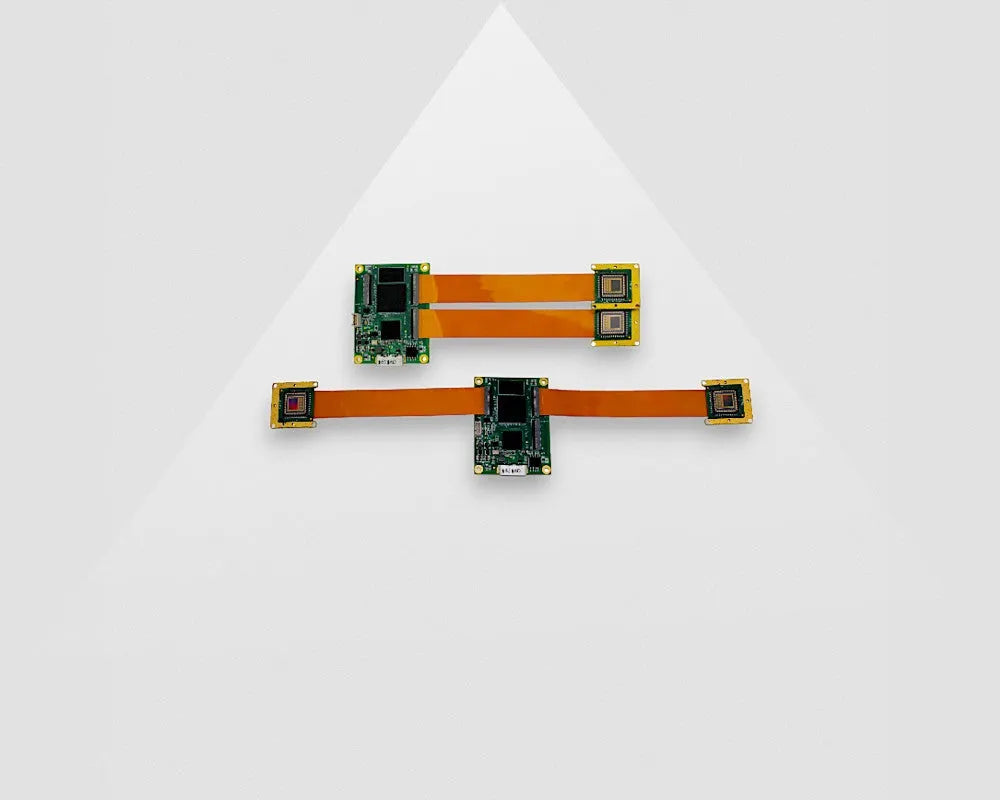

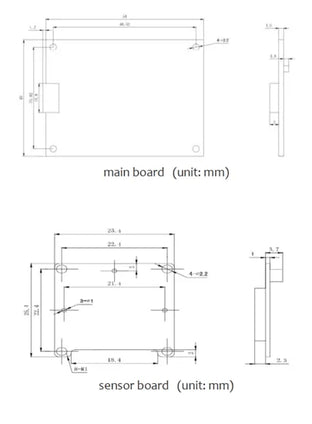

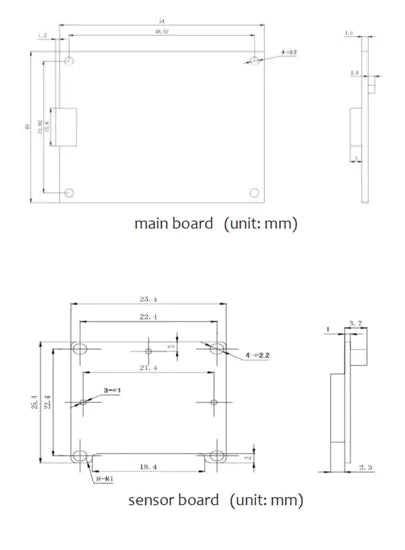

  • 2 sensor boards
  • Very attractive price

The VEN-134-90U3M-D camera is DAHENG's first board level camera and it is a monochrome USB3.0 Vision board level camera with two Onsemi PYTHON 1300 CMOS sensors. There are three connection ports in the main board and each sensor board can be freely connected to one of three ports by FPC cable, more flexible for instalment and suitable for more applications. Furthermore, the VEN-134-90U3M-D camera is powered over the USB3.0 interface. The camera has a good performance but with a competitive price.
The VEN-134-90U3M-D board level camera is especially designed for binocular vision applications such as handheld 3D scanner, desktop 3D scanner and so o
  • Mini USB3.0 interface with 10-bit or 8-bit Mono output
  • Programmable AOI, increased frame rate with partial scan
  • Gain and exposure programmable
  • Adjustable URB
  • Software reset function
  • Storable user sets
  • Hot plugging available
  • FPC cables extension can be put in both sides or the same side
  • Support embedded operating system Linux , Android and NVIDIA Jetson TX1
  • Support hardware trigger and software trigger
  • The length of FPC cable can be extended up to 460mm
  • Compatible with GenICam™  and USB3.0 Vision®, can be used in a wide range of 3rd-party software such as HALCON and LabVIEW
  • PC with Intel Core 2 Duo, 2.4GHz above and 2GB above memory is recommended
  • Free SDK and examples for various programming tools
  • Regulations: CE, RoHS, GenICam, USB3.0 Vision
Please note that this OEM product may have a longer deliverytime then our standard products. Therefore we advice to ask upfront the delivery time. More info

Specifications

Part number VEN-134-90U3M-D-NIR
Camera interface USB3 Vision
Camera Resolution 1280x1024
Camera Frame rate (fps) 90
Camera pixel size (um) 4.8
Camera Color/Mono Mono
Camera Sensor type OnSemi PYTHON 1300
Camera sensor size 1/2"
Camera Shutter Type Global Shutter
Camera shutter time TBD
Camera ADC Bit Depth TBD
See all specs

Downloads

Need the VEN-134-90U3M-D-NIR manual?

Do you have a question about the VEN-134-90U3M-D-NIR?

Ask us your question via

Part number VEN-134-90U3M-D-NIR
Camera interface USB3 Vision
Camera Resolution 1280x1024
Camera Frame rate (fps) 90
Camera pixel size (um) 4.8
Camera Color/Mono Mono
Camera Sensor type OnSemi PYTHON 1300
Camera sensor size 1/2"
Camera Shutter Type Global Shutter
Camera shutter time TBD
Camera ADC Bit Depth TBD
Camera pixel bith depth TBD
Camera Digital Gain TBD
Camera synchronization Hardware trigger, software trigger
Camera I/O N/A
Camera operating temp. 0°C~45°C
Camera operating humidity 10%~80%

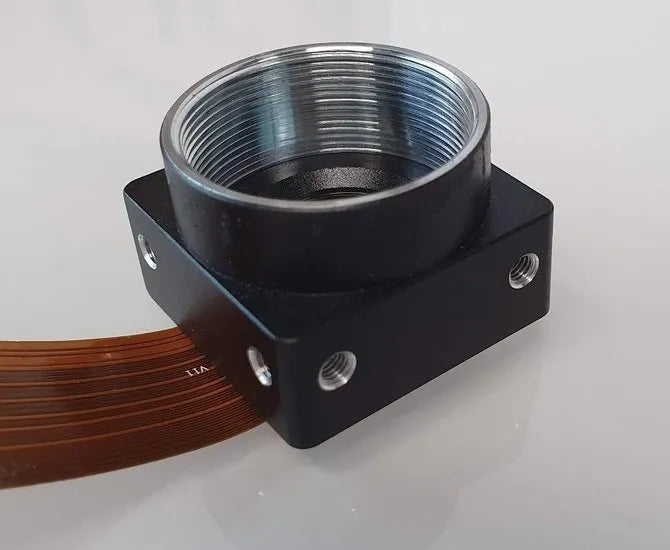

Camera lens mount S/C
Camera SDK Software Windows / Linux / Android
Camera power consumption <3.5W@5V
Camera Conformity RoHS, CE, FCC, USB3 Vision, Genicam
Camera Megapixel 1
Partnumber old VEN-134-90U3M-D-NIR
