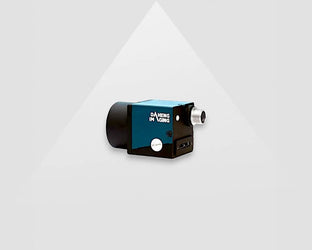

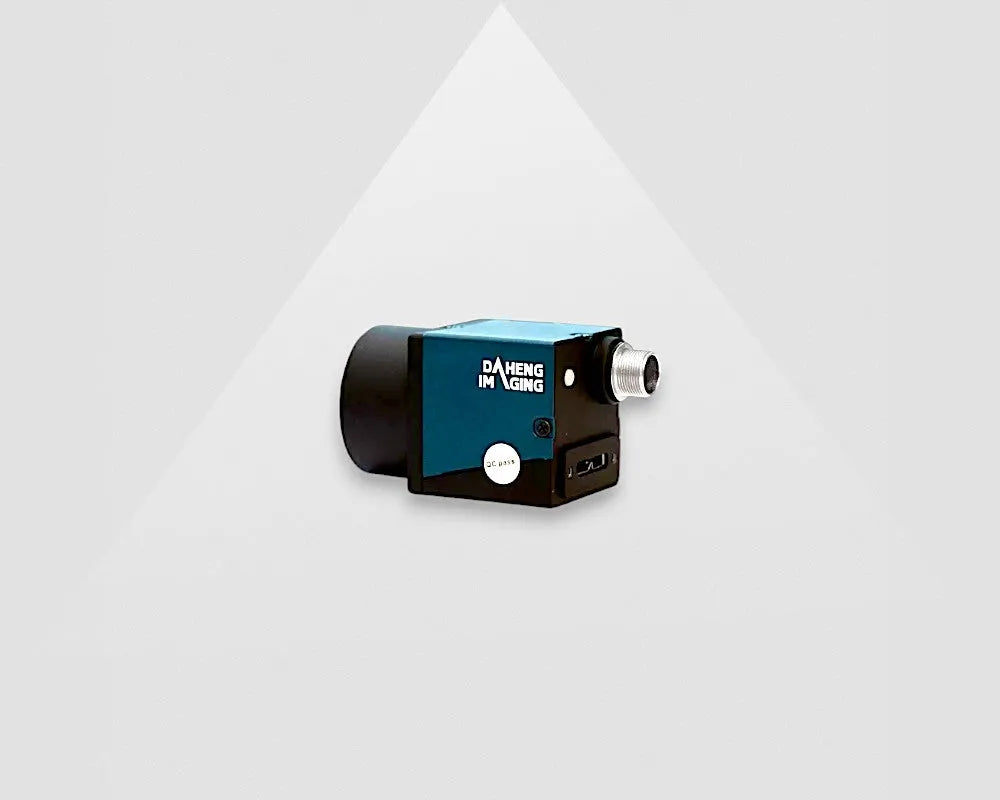

USB3 Vision Camera

The Mercury USB3.0 camera series is an industrial vision camera, with an USB3.0 interface. USB3.0 is an appropriate interface for high resolution and high-speed cameras. Furthermore, this interface is very suitable for embedded platforms such as the Raspberry Pi 3, NVIDIA Jetson TX1, TX2 and Tegra TK1.
This model is interesting for you when your application complies with the following conditions:
-    An industrial camera
-    Maximum cable length of 4.5 meters
-    Only one cable is required to connect the device
-    Dimensions are: 29x29x29mm
-    Suitable for PC’s and embedded platforms: ARM V7 & ARM V8
-    Optional hardware triggering

If more details are required, the manual can be consulted.

Warranty & Product Life Cycle

Daheng Imaging produce yearly more than 100.000 industrial cameras according to the highest quality standards. The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is at least available for 7 years. Most cameras have even a much longer product life cycle. For more information about our product life cycle management, check this article.

Monochrome Camera

Monochrome cameras, also known as black and white (B/W) cameras have still a lot of potential in many applications. While the security market and mobile market tend to focus on color imaging, the industrial, ITS, medical and life science market often uses the benefits of monochrome cameras. Monochrome cameras are very sensitive, deliver sharp images and reduce data compared to color, making it ideal for image processing. Using the right color light source and filters for the camera, a monochrome camera plus light system can use the characteristics of the product to create high contrast and high resolution images.

With I/O

The USB3 camera I/O, uses and 8 pin HR25 hirose connector, that is standard used in the industrial machine vision market. It has 1 input that can be used to hardware trigger the camera. The output of the camera can be used to trigger the light source, for example an LED. Additional, the camera has 2 GPIO, general purpose input / outputs that can be programmed using the SDK. The electrical schemes to operate the I/O of the camera can be found in the manual.
