USB3 Vision Camera

The Venus USB3.0 camera series is an industrial board level camera, with an USB3.0 interface. USB3.0 is an appropriate interface for high resolution and high-speed cameras. Furthermore, this interface is very suitable for embedded platforms such as the Raspberry Pi (4 or higher), NVIDIA family.

This model is interesting for you when your application complies with the following conditions:
-    An industrial board level camera
-    Maximum cable length of 4.5 meters
-    Only one cable is required to connect the device
-    Suitable for PC’s and embedded platforms: ARM V7 & ARM V8
-    Hardware triggering

If more details are required, the manual can be consulted.

Flexible housing options

You can select the housing that fits your requirements. The Venus USB3.0 cameras is available in the following form factors:
VEN-505-36U3M-M06 - No housing: 32.5x32.5x8.1mm | 7 grams
VEN-505-36U3M-M05 - M12: 35x35x15.1mm | 32 grams

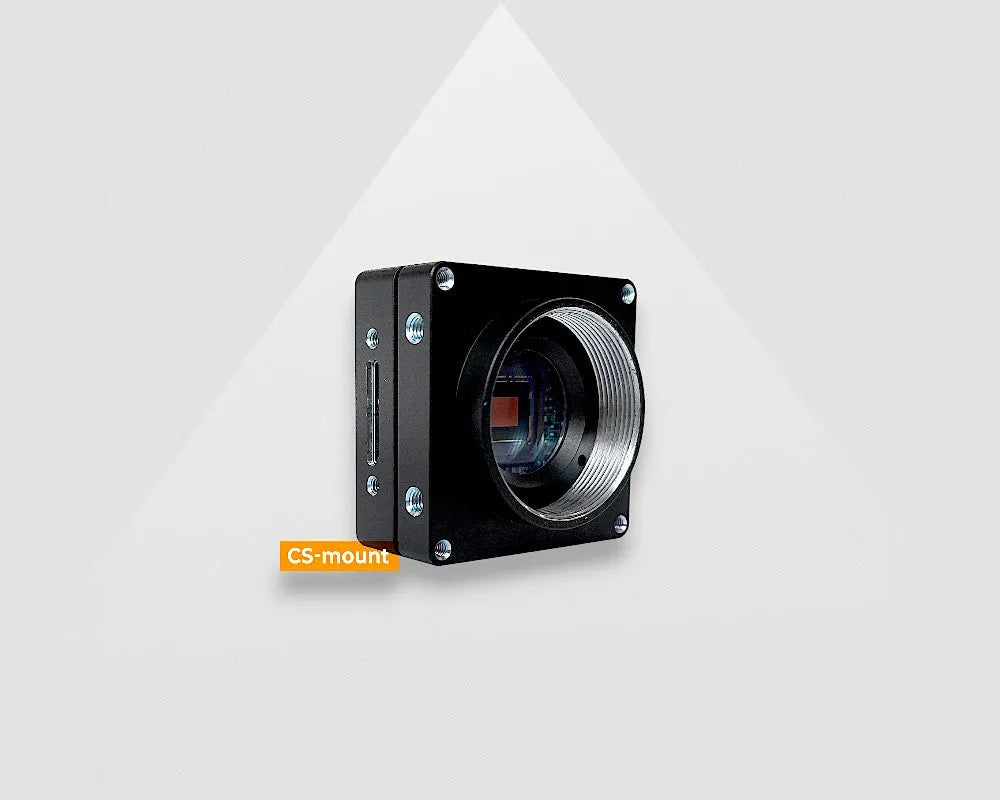

VEN-505-36U3M-M01 - CS-mount: 35x35x15.8mm | 31 grams
VEN-505-36U3M-M01 + 5mm extension ring - C-Mount: 35x35x20.8mm | 34 grams

When using a M12 lens, you can select the M12 mount or you can select the CS-mount option together with our C-to-M12 adapter.

Warranty & Product Life Cycle

Daheng Imaging produce yearly more than 100.000 industrial cameras according to the highest quality standards. The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is at least available for 7 years. Most cameras have even a much longer product life cycle. For more information about our product life cycle management, check this article.

Monochrome Camera

A black and white camera, also known as a monochrome camera, offers advantages in a variety of applications. While the market for security and telephony focuses on color cameras, the industrial market utilizes the advantages of black and white cameras. Black and white cameras are very light sensitive, provide sharp images and reduces data compared to color. This makes it ideal for the processing of images. By selecting the right color as your light source and lens filter, a black and white camera can utilize the product its characteristics. Hereby men can create images with a large contrast and a high resolution.
