ME2P-2621-15U3M-NIR, GMAX0505, 5120x5120, 15fps, 1.1 inch, Global shutter, CMOS, Mono
- GMAX0505
- 5120x5120
- 15fps
- 1.1 inch
- Global shutter
- CMOS
- Mono

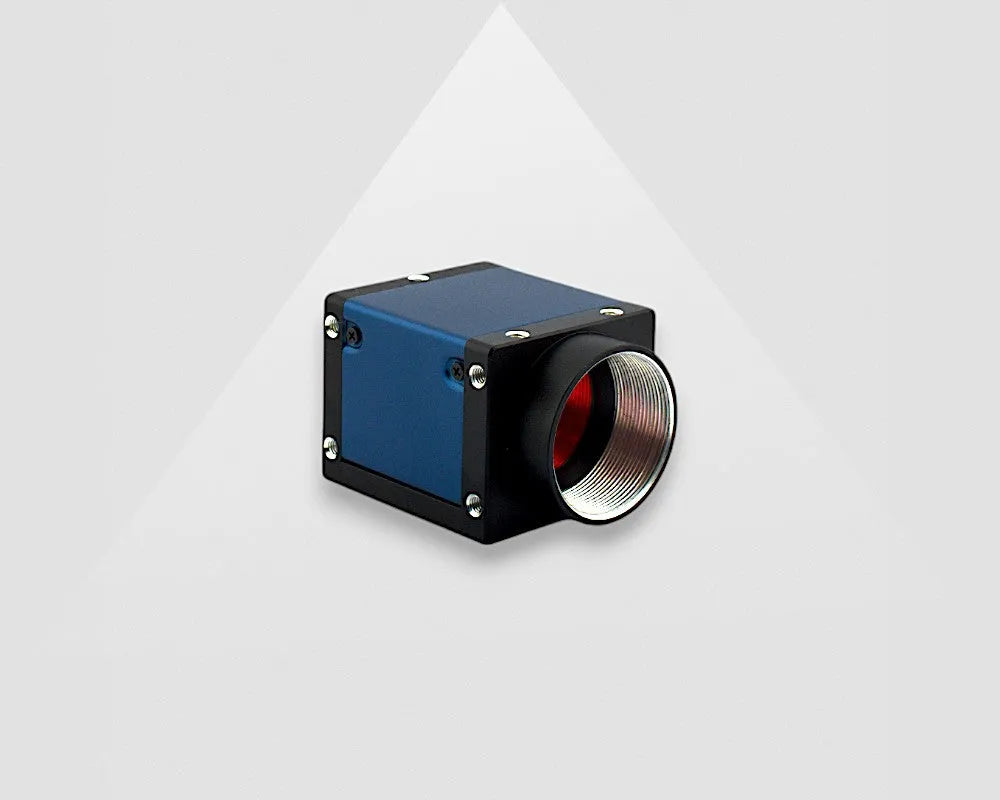

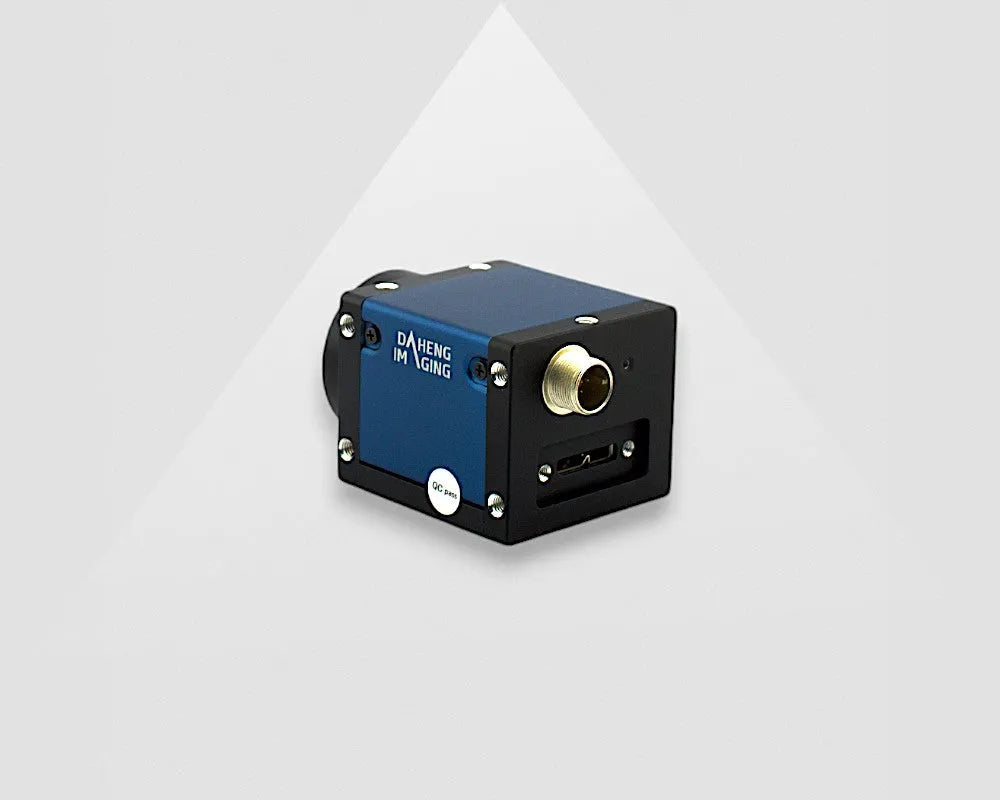

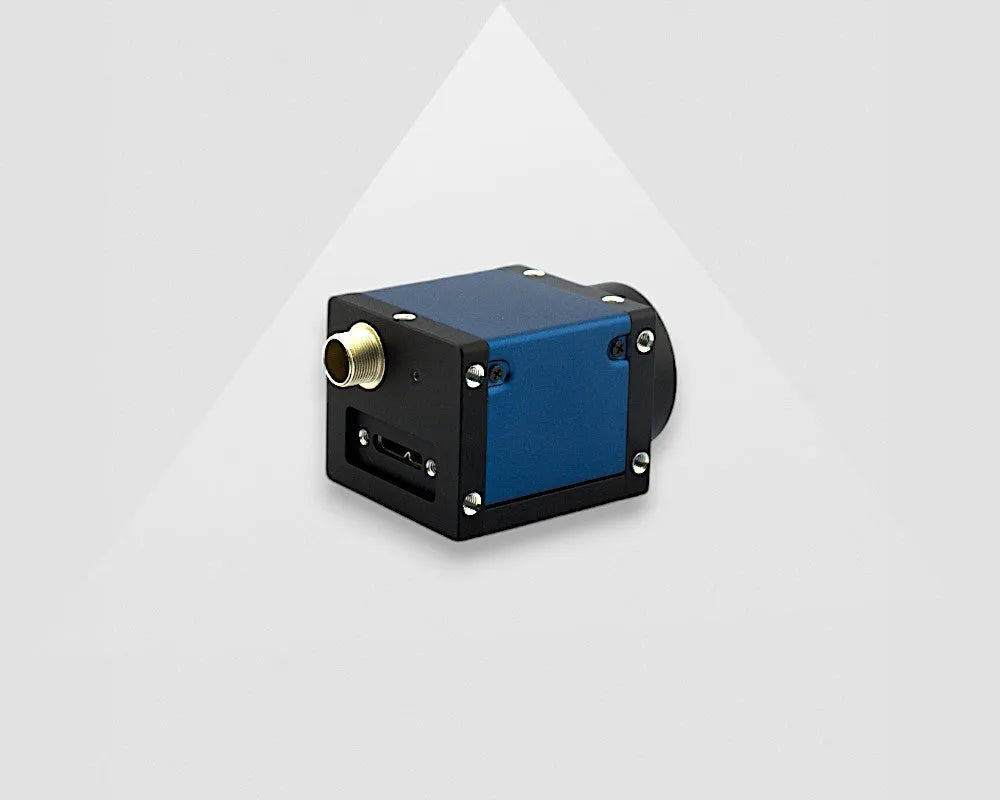

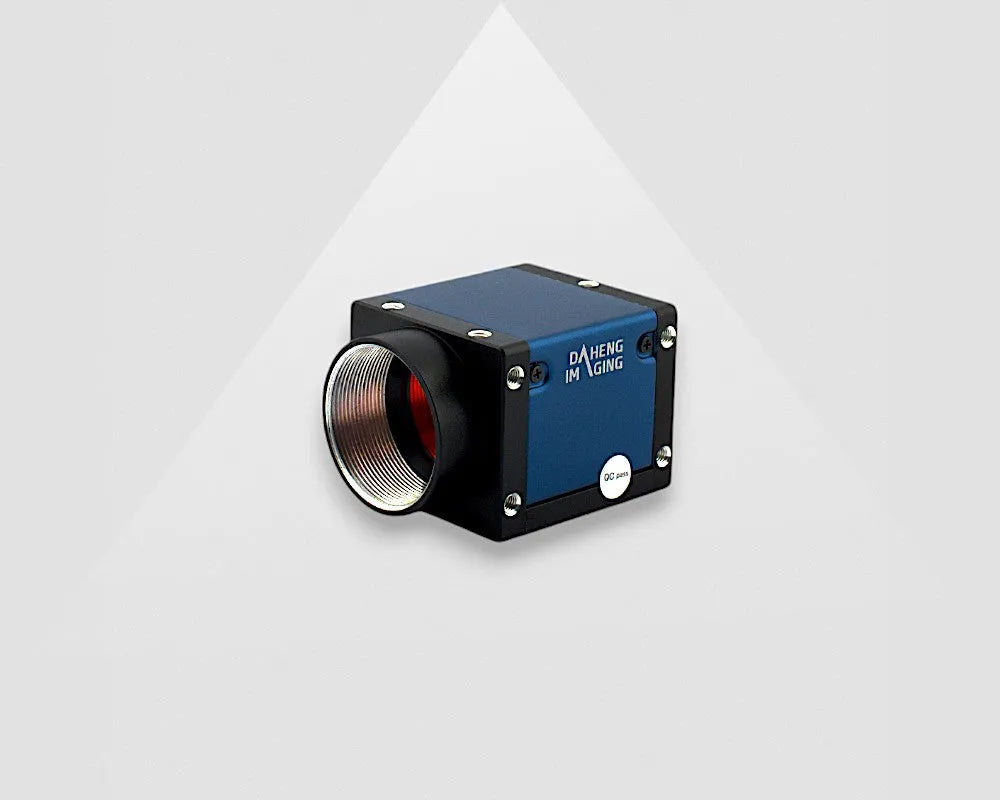

USB3 Vision Camera GMAX0505
The Mercury 2 Pro USB3 Vision Camera series is an industrial vision camera, with a USB3 Vision interface. This industrial vision camera series feature high resolution, low noise global shutter sensors in a compact housing. USB3 is the high speed interface for industrial vision cameras, making it ideal for high resolution, highspeed image capturing. ME2P series have advanced features. If you are using advanced features, please contact us, so we can double check if the specific feature is present or can be implemented for you. The ME2P USB3 Vision Color cameras supports color correction for improving the image quality.
the USB3 Vision Camera ME2P series is interesting for you when your application complies with the following conditions:
- A compact industrial camera
- Maximum cable length of 4,6 meters
- Inexpensive and easy installation of cables
- Only one cable is required to connect the device
- Hardware triggering / Digital I/O
- advanced image processing features
If more details are required, the manual of the ME2P USB3 Vision camera can be consulted.
Specifications
| Part number | ME2P-2621-15U3M-NIR |
| Interface | USB3 Vision |
| Resolution | 5120x5120 |
| Frame rate (fps) | 15 |
| Pixel size (um) | 2.5 |
| Color/Mono | Mono |
| Sensor type | GMAX0505 |
| Sensor size | 1.1" |
| Shutter Type | Global Shutter |
| Shutter time | 11us~1s |
| ADC Bit Depth | 12bit |
MTBF, warranty & product life cycle
Each year, Daheng Imaging produces more than 100.000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is available for at least 7 years. Most cameras have a much longer product life cycle. For more information about our product life cycle management, check this article.
Monochrome Industrial Camera
A black and white camera, also known as a monochrome camera, offers advantages in a variety of applications. While the market for security and telephony focuses on color cameras, the industrial market utilizes the advantages of black and white cameras. Black and white cameras are very light sensitive, provide sharp images and reduces data compared to color. This makes it ideal for the processing of images. By selecting the right color as your light source and lens filter, a black and white camera can utilize the product its characteristics. Hereby men can create images with a large contrast and a high resolution.
NIR

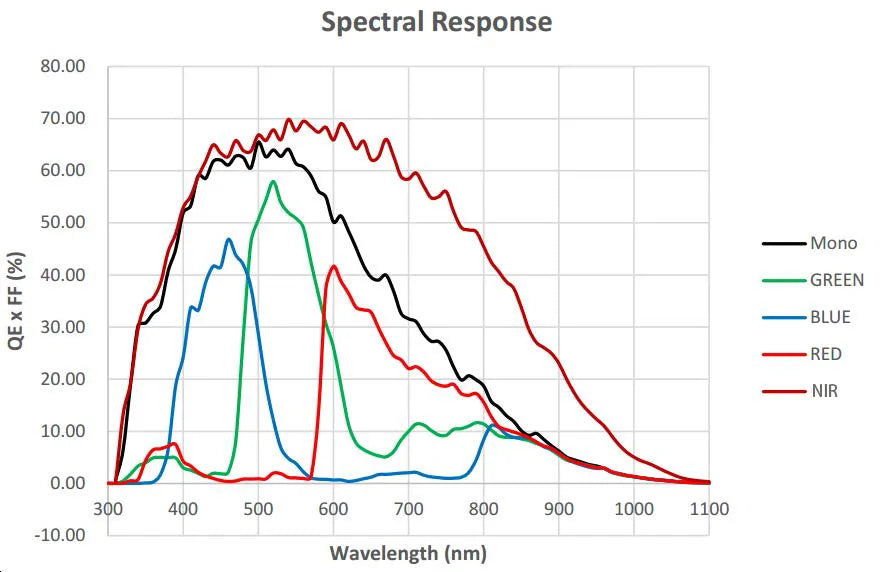

NIR cameras are monochrome sensors that are specially developed for the Near Infrared Region. These are the wavelengths from 800-1000nM. Normal IR leds operate at 850nM or 930nM. The photon sensitive parts of the pixel of a NIR camera are deeper then of the standard monochrome camera, therefore they are better able to catch the photons of the higher wave lengths (800-1000nM). NIR sensors are more expensive then standard monochrome camera’s. These camera’s are ideal for low light applications, like intelligent transport systems (ITS) and medical imaging.
Advanced vision camera features
The ME2P USB3 vision camera serie has both standard and advanced features onboard, like:
- Programmable ROI, increased frame rate with partial scan
- Gain, exposure and white balance programmable (white balance only for color models)
- Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
- Four acquisition controls: Single frame acquisition/Continuous acquisition/Software trigger acquisition/External trigger acquisition
- Trigger mode: Frame Start /Frame Burst Start
- Support color correction for improving image quality (only for color models)
- Exposure delay effectively reduces the effect of the strobe delay
- Compatible with GenICam™and GigE Vision®, can be used in a wide range of 3rd-party software such as HALCON and LabVIEW directly
- Optimized software package for lower CPU loads in host running 32/64bit Windows
- Multiple samples and easy-to-integrate SDK for various programming tools
- Regulations: CE, RoHS, GenICam, USB3 Vision
The complete set of features makes the ME2P USB3 Vision camera serie a perfect choice for high performance image processing.
| Part number | ME2P-2621-15U3M-NIR |
| Interface | USB3 Vision |
| Resolution | 5120x5120 |
| Frame rate (fps) | 15 |
| Pixel size (um) | 2.5 |
| Color/Mono | Mono |
| Sensor type | GMAX0505 |
| Sensor size | 1.1" |
| Shutter Type | Global Shutter |
| Shutter time | 11us~1s |
| ADC Bit Depth | 12bit |
| Pixel bit depth | 8bit, 12bit |
| Digital Gain | 0dB ~ 16dB |
| Pixel data format | Mono8 / Mono12 |
| Synchronization | Hardware trigger, software trigger |
| I/O | 1 opto-isolated input line and 1 opto isolated output line, 2 GPIO |
| Operating temp. | 0°C~45°C |
| Operating humidity | 10%~80% |
| Mount | C |

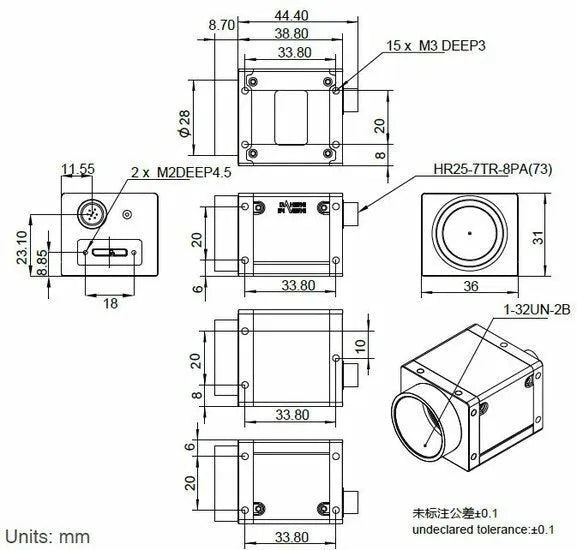

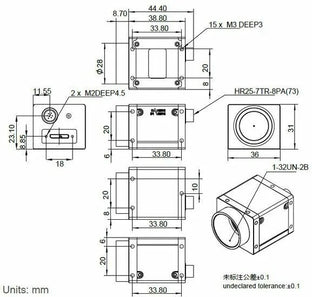

| Dimensions | 36x31x38.8mm |
| SDK Software | Windows / Linux / Android |
| Power consumption | <3.5W@5V |
| Conformity | RoHS, CE, FCC, USB3 Vision, Genicam |
| Megapixel | 26 |
| Partnumber old | ME2P-2621-15U3M-NIR |
| SDK Software | Windows / Linux / Android |
