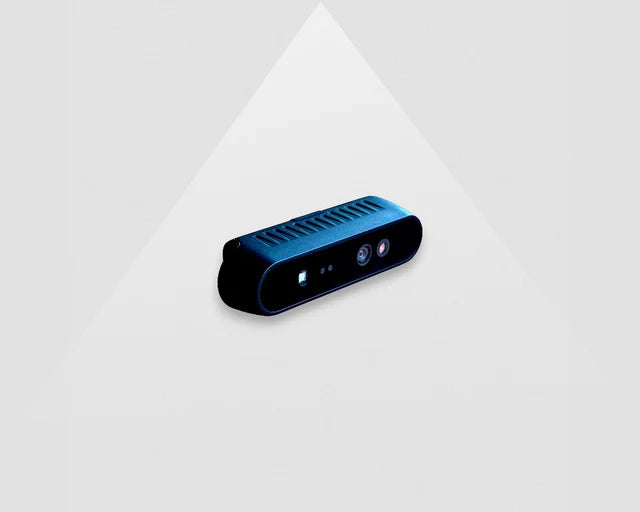

VA-3DC-P100R 3D Camera 3D camera
VA-3DC-P100R 3D Camera
- industrial intel real sense replacement
VA-3DC-P100R 3D camera, industrial intel realsense replacement camera
The VA-3DC-P100R is a 3D RGBD camera, using the same 3D technology as an Intel RealSense, but industrial and with polarized structured light to eliminate reflection issues. The 3D structured light camera is designed for environments where accuracy, reliability, and robust operation are critical. Featuring a new 940 nm single-polarization HCG VCSEL light source with an industry-leading 1000× polarization extinction ratio, it dramatically reduces glare and multipath interference caused by reflective surfaces (shiny floors), typically seen by devices such as the Intel RealSense.
The VA-3DC-P100R 3D camera delivers synchronous depth, color, and IR images (RGBD 3D camera) with high stability, making it an ideal sensor for robotics, logistics, industrial automation, and AIoT devices deployed both indoors and outdoors. The VA-3DC-P100R 3D camera is the ideal replacement for an Intel RealSense, making your solution more robust.
More infoSpecifications
| Part number | VA-3DC-P100R |
| Interface | USB2 UVC Type C |
| 3D Resolution | 1280x800 |
| 3D Shutter | Global |
| 3D Frame rate (fps) | 7@1.3MP / 30@VGA |
| 3D Accuracy | 1mm@60cm |
| 2D Color/ Mono | Color |
| 2D Resolution | 1920x1080 |
| 2D Shutter | Rolling |
| 2D Frame rate (fps) | 30 |
| 0.3-8.0m |
How does a Polarized Structured Light 3D camera work?
Structured light is a proven method for high-accuracy 3D camera measurement:
- The 3D camera projects a known polarized infrared dot pattern into the scene using its VCSEL polarized light source.
- Surfaces in the environment distort this light pattern based on their depth and geometry.
- The onboard sensor captures these distortions and calculates precise depth maps through triangulation.
- Due to the polarization, all direct reflections from reflective surfaces can be filtered out, as these are still polarized.
Because the VA-3DC-P100R 3D camera combines this structured light approach with single-polarization optics, it delivers cleaner depth images in environments where conventional structured light or stereo depth 3D cameras fail — such as glossy plastics, glass, water, and metallic objects.
Why a polarized 3D camera and not an Intel RealSense?
Depth sensing accuracy often suffers when shiny or glossy surfaces cause multipath interference, where light bounces multiple times before reaching the sensor. This typically occurs with an Intel RealSense 3D camera.
The VA-3DC-P100R solves this with single-polarization VCSEL technology:
- Emitted light is strictly polarized in one orientation.
- Direct reflections from matte surfaces maintain this orientation and are detected as valid signals.
- Secondary reflections from glass, metal, or glossy plastic typically change polarization.
- The sensor rejects this misaligned light, filtering out false depth data.
Multipath reflection example
This means that our VA-3DC-P100R 3D camera creates cleaner depth maps, sharper object edges, and reliable detection in industrial environments compared to an Intel RealSense 3D camera.
Why Choose VA-3DC-P100R Over Intel RealSense D435/D455 3D camera?
- Superior Reflection Handling: RealSense models like the D435/D455 often struggle with shiny or transparent materials. The VA-3DC-P100R’s polarization filtering minimizes multipath noise, delivering consistent and reliable depth maps.
- Greater Depth Accuracy: ±1 mm at 60 cm — significantly tighter than the typical depth noise of RealSense 3D cameras in the same range.
- Optimized for Indoor & Outdoor: VA-3DC-P100R maintains stable performance even in bright sunlight or reflective indoor spaces, where RealSense 3D cameras often degrade.

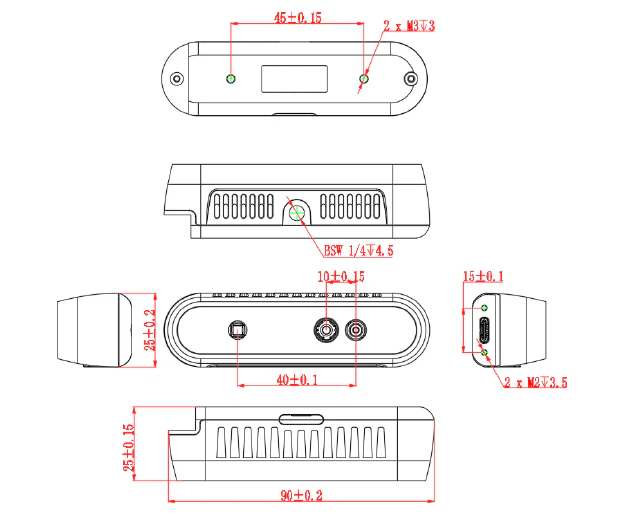

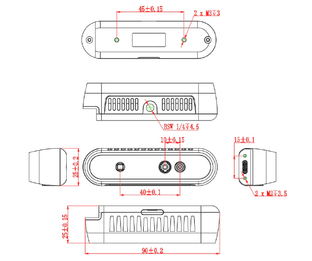

Footprint Compatibility with Intel RealSense 3D camera
The VA-3DC-P100R 3D camera is designed with a 90×25×25 mm housing, closely matching the footprint of several popular Intel RealSense modules:
- Intel RealSense D435 (90 mm × 25 mm × 25 mm)
- Intel RealSense D435i (same housing as D435, with integrated IMU)
- Intel RealSense D415 (similar length, slightly different FOV but same overall factor)
This makes the VA-3DC-P100R a drop-in mechanical replacement for systems already designed around the D400-series footprint — with the added benefits of polarization-enhanced optics, improved depth accuracy, and industrial quality.
Comparison: VA-3DC-P100R vs Intel RealSense D435 / D435i / D415
|
Specification |
VA-3DC-P100R |
Intel RealSense D435 / D435i |
Intel RealSense D415 |
|
Dimensions (L × W × H) |
90 × 25 × 25 mm |
90 × 25 × 25 mm |
99 × 23 × 20 mm |
|
|
|
|
|
|
Depth Accuracy / Error |
<1 mm @ 60 cm |
< 2.5mm @ 60cm |
<2mm @60cm |
|
|
|
|
|
|
FOV |
72x50 |
91x65 |
69x24 |
|
Distortion |
<1% |
<1.5% |
<1.5% |
|
Weight |
~ 72 g |
~ 72 g |
~ 72 g |
3D camera applications
Typical applications for 3D cameras using structured light such as the VA-3DC-P100R or Intel RealSense are:
- Robotics (service, logistics, industrial)
- AIoT and machine vision inspection systems
- Drones and AGVs for navigation & mapping
- Augmented & virtual reality systems
- Human–machine interaction and gesture control
Do you need support in selecting the best camera for your application? Please contact us
| Part number | VA-3DC-P100R |
| Interface | USB2 UVC Type C |
| 3D Resolution | 1280x800 |
| 3D Shutter | Global |
| 3D Frame rate (fps) | 7@1.3MP / 30@VGA |
| 3D Accuracy | 1mm@60cm |
| 2D Color/ Mono | Color |
| 2D Resolution | 1920x1080 |
| 2D Shutter | Rolling |
| 2D Frame rate (fps) | 30 |
| 0.3-8.0m | |
| Operating temp. | -10°C~60°C |
| Dimensions | 90x25x25 mm |
| SDK Software | Windows / Linux / Android |
| Power consumption | < 2.5W@5V |
| Weight (g) | 72 |
| Conformity | RoHS, CE, FCC |
| Distortion | < 1% |
| Field of view (FOV) | 72x50 |
