EOL | LAST TIME BUY 20-03-2021

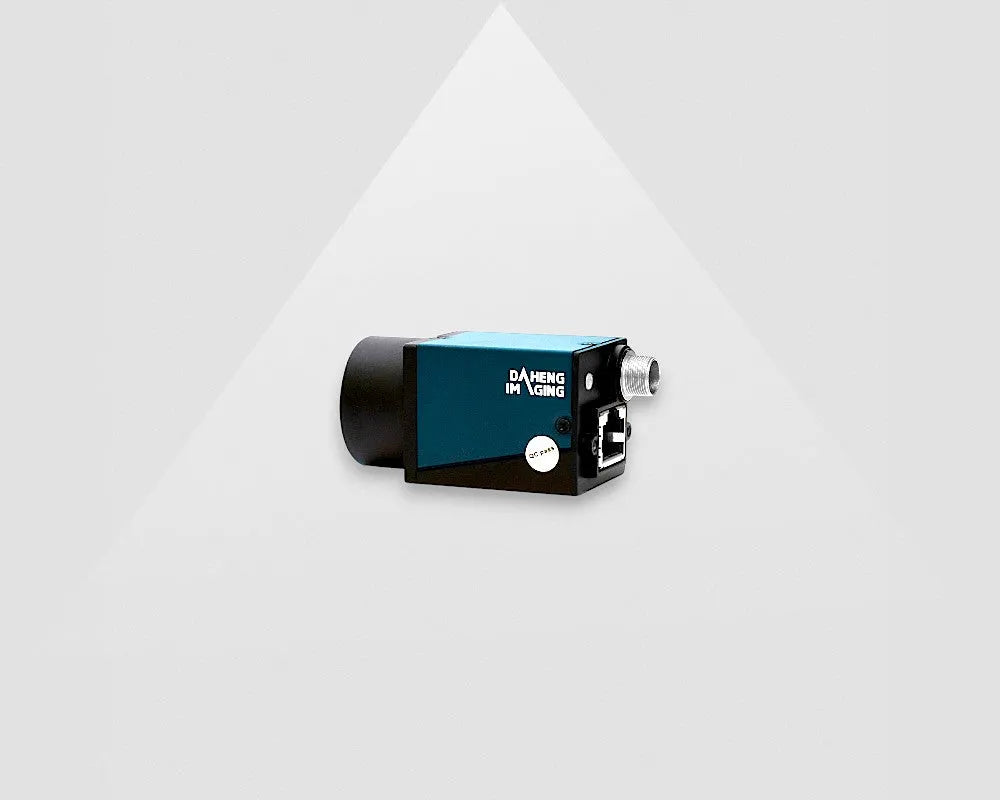

GigE Vision Camera

The Mercury GigE camera series is an industrial vision camera, with a GigE interface. GigE is the most common interface used for cameras in traditional machine vision applications. The camera is available with and without Power over Ethernet (PoE).
This model is interesting for you when your application complies with the following conditions:
-    An industrial camera
-    Maximum cable length of 100 meters
-    Inexpensive and easy installation of cables
-    Only one cable is required to connect the device (in case of PoE)
-    Dimensions are: 29x29x29mm (without PoE), 29x29x38 mm (with PoE)
-    Optional hardware triggering

If more details are required, the manual can be consulted.

Monochrome Camera

Monochrome cameras, also known as black and white (B/W) cameras have still a lot of potential in many applications. While the security market and mobile market tend to focus on color imaging, the industrial, ITS, medical and life science market often uses the benefits of monochrome cameras. Monochrome cameras are very sensitive, deliver sharp images and reduce data compared to color, making it ideal for image processing. Using the right color light source and filters for the camera, a monochrome camera plus light system can use the characteristics of the product to create high contrast and high resolution images.

PoE

Power over Ethernet (PoE) for GigE is designed to provide both power and data communication over a standard Ethernet cable. This reduces the amount of cables and installation time, in applications that do not require a hardware trigger or I/O. When I/O is required in an application we advise to supply the camera via a I/O connector. The camera’s power usage is larger when using Power over Ethernet than via the I/O connector. The camera will generate extra heat when using PoE. A PoE GigE camera is larger than the version without PoE. An extra PCB is needed to separate the power of the Ethernet signal, and to convert the voltage to a lower voltage. Extra hardware is needed, which makes it more expensive than the version without PoE. The advantage of PoE is that installation is easier because less cables are required.
