Cameras with Sony IMX546 Sensor: Specs, Prices & Life Cycle
Gaspar van Elmbt
This article outlines the key specifications of Sony IMX546 image sensor. It also discusses how the sensor can be integrated into various camera interfaces like GigE and USB3, based on the specific features included. Additionally, the article provides a brief guide on choosing compatible industrial lenses to optimize the performance of the IMX546.
You can download the machine vision camera manual here, which includes the specifications of our camera featuring the Sony IMX546, spectral response, and mechanical drawings.
Table of contents
Sony IMX546 image sensor specifications
The Sony IMX546 is a high-performance CMOS image sensor designed for industrial and machine vision applications. It features a resolution of 8 megapixels (2840x2840), a pixel size of 2.74μm, and a global shutter type. The IMX546 can achieve a maximum frame rate of 36fps at full resolution for GigE interface. The Sony IMX546 image sensor belongs to the Sony Pregius 4th Generation. On the same generation you can find models with resolutions 5MP (IMX547), 12.21MP (IMX545), 16.1MP (IMX542), 20.2MP (IMX541), and 24.4MP (IMX 540).
2nd generation Pregius sensors vs 4th generation Pregius S sensors
Sony’s 2nd and 4th generation IMX sensors demonstrate significant technological advancements. The IMX546 belongs to the 2nd generation, featuring 3.45 μm pixels and offering resolutions of up to 12MP. These sensors perform well in low-light conditions and can achieve high frame rates, particularly in their high-speed variants.
In contrast, the 4th generation Pregius S sensors use smaller 2.74μm pixels, enabling higher resolutions of up to 24.5 MP. Despite the smaller pixel size, they retain excellent sensitivity thanks to an enhanced design. These newer sensors also introduce advanced features such as dual ADCs and exposure time monitoring. They incorporate stacked CMOS technology, which helps maintain high performance despite the reduced pixel size.
In summary, while the 2nd generation sensors remain highly capable, the 4th generation sensors provide higher resolution, advanced features and improved efficiency, making them more suitable
for advanced imaging applications.
The 2nd generation Sony Pregius is still among the most light-sensitive solutions available for standard machine vision cameras. A comparison between the 2nd and 4th generations is available in this article.
Machine vision camera prices of Sony IMX546
At VA Imaging, we have developed a series of industrial cameras featuring the Sony IMX546 sensor, offering outstanding image quality, high frame rates, and dependable performance in challenging environments. We take pride in delivering excellent value to our customers. Thanks to our streamlined operations and focus on maintaining low margins, our IMX546-equipped cameras are competitively priced.
We also back the quality of our products with a robust 3-year warranty on all industrial cameras, including those with the IMX546 sensor. In addition to this, our customers benefit from top-tier technical support, a broad range of products, and fast delivery times. These, advantages, along with our affordable pricing, make VA Imaging the ideal choice for businesses looking for high-performance, cost-effective machine vision solutions.
Sony IMX546 sensor for GigE vision camera

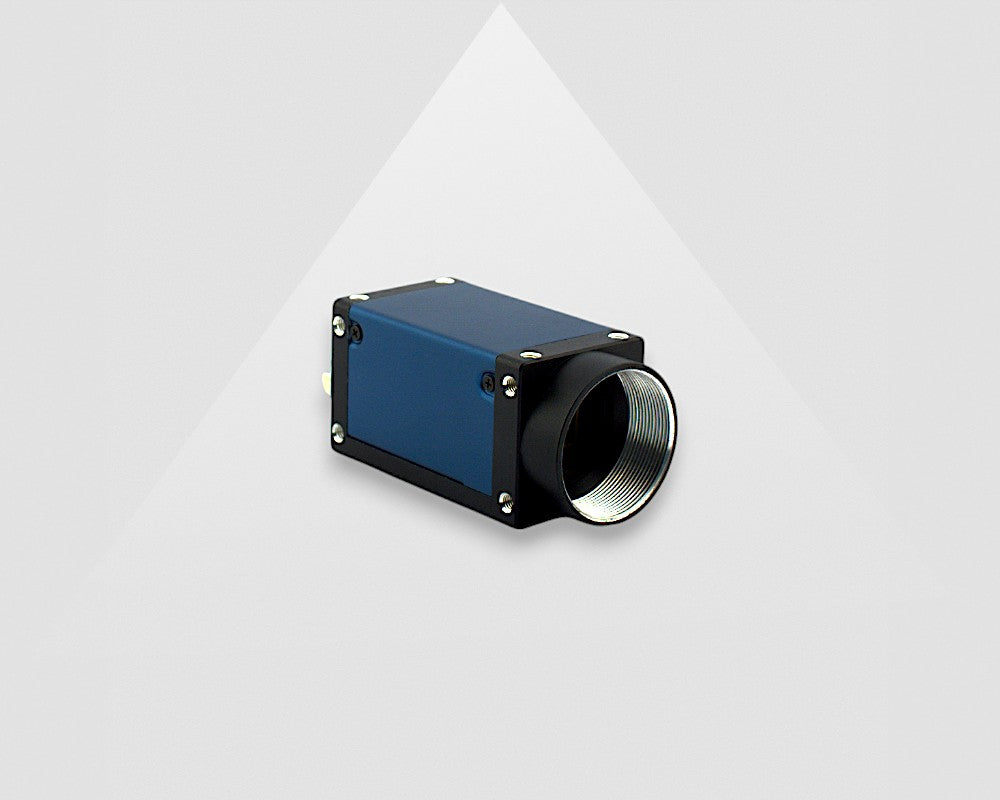

The IMX546 sensor is well-suited for GigE cameras, which provide a robust and reliable interface for industrial applications. GigE cameras offer long cable lengths, up to 100 meters, making them ideal for distributed systems and applications where the camera needs to be located away from the host computer. Our GigE cameras models with IMX546 are MER3-800-36G3M-P and MER3-800-36G3C-P. For our GigE cameras, you can download the camera manual, free SDK and 3D files in our Download page. This 8MP camera offers 36 frames per second.
Industrial lens for Sony IMX546 camera
When selecting an industrial lens for the IMX546 sensor, it is important to consider factors such as the sensor size, resolution, and the specific application requirements. High-quality lenses designed for machine vision applications can help maximize the performance of the IMX546 sensor and ensure optimal image quality. With a pixel size of 2μm and resolving power of 250 lp/mm our industrial C-mount lenses from 2/3” 10MP series are ideal to combine with IMX546.
Do you need help choosing the right lens? You can use our Lens calculator tool. Additionally, feel free to fill out the short form below, and our experts will be happy to recommend the most suitable
camera-lens setup for your specific needs!
Spectral response of IMX546 monochrome and color sensors
Product life cycle of Sony IMX546
The IMX546 sensor is a mature sensor with a proven track record in the machine vision market. This means it has been around for a significant amount of time and has a well-established reputation for performance and reliability. Because of this maturity, you can be confident that the IMX546 sensor will deliver consistent image quality and operate reliably for years to come.
Here at VA Imaging, we understand the importance of choosing the right sensor for your machine vision application. That's why we are proud to offer a wide range of cameras that utilize the IMX546 sensor. In fact, we produce tens of thousands of cameras per year that use sensors up to 6 megapixels, with the IMX546 being a popular choice. This high production volume speaks to the versatility and effectiveness of this sensor in a wide variety of machine vision tasks.
In conclusion, the IMX546 sensor's maturity, proven track record, and high production volume make it a reliable and cost-effective option for many machine vision applications. If you are considering a camera with the IMX546 sensor, you can be assured that you are making a solid investment.
