VA-LM12-10MP-4.5MM-F4.5-023, LENS M12 10MP 4.5MM F4.5 1/2.3 inch NON DISTORTION

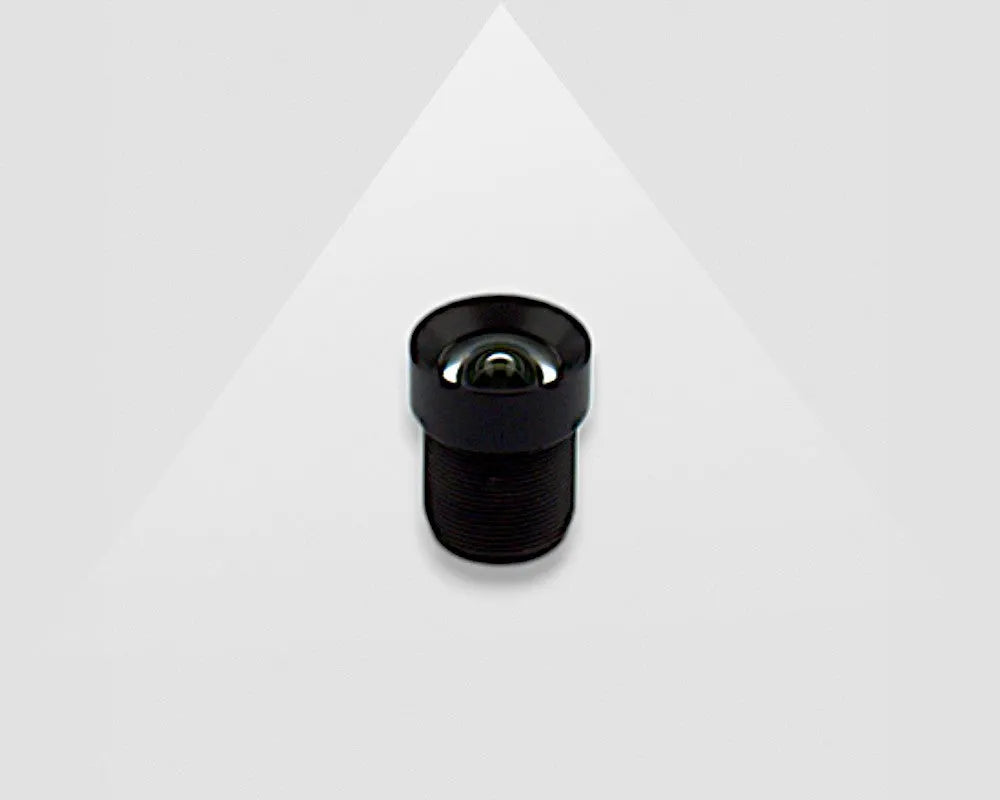

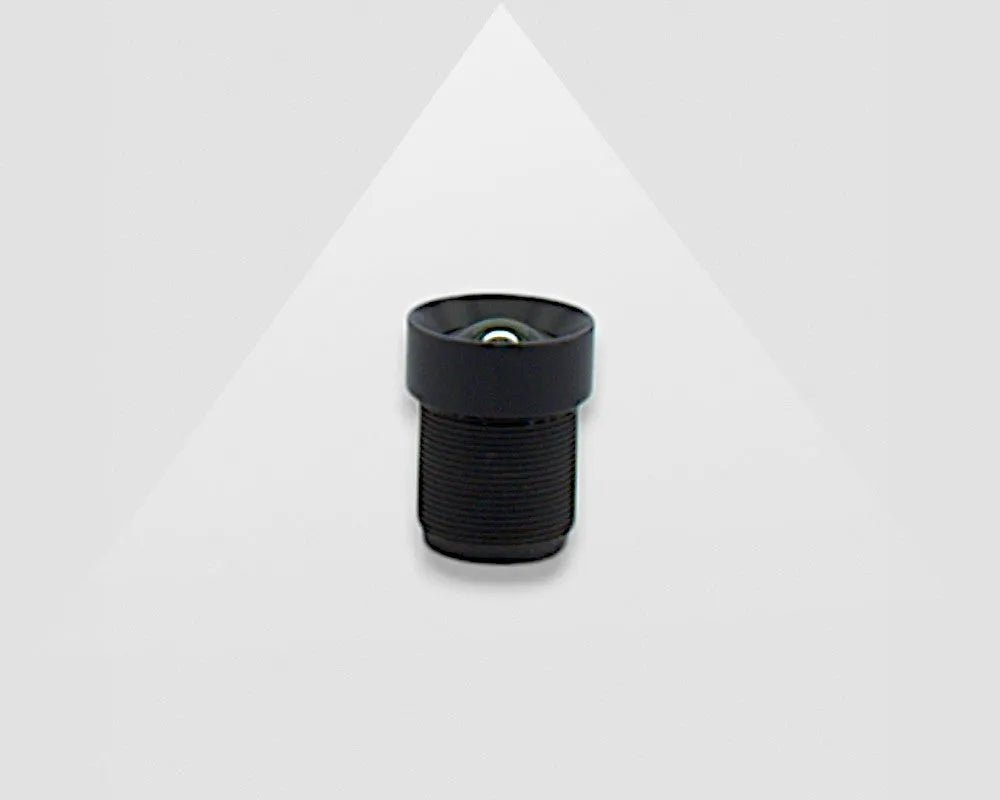

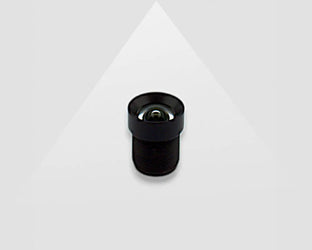

VA-LM12-10MP-4.5MM-F4.5-023 Lens M12-mount
VA-LM12-10MP-4.5MM-F4.5-023
  • LENS M12 10MP 4.5MM F4.5 1/2.3 inch NON DISTORTION
€59,00
Delivery time: Standard 3-6, Express 0-3 weeks
Qualidade Industrial
Machine Vision

Description

The VA-LM12-10MP NON DISTORTION series are high resolution (up to 10MP) lenses designed for board level cameras or cs-mount cameras in combination with a CS-mount to m12 adapter with a 1/2.3" sensor or smaller, to create sharp distortion free images. The non distortion in combination with the large opening angle makes this lens series, ideal for high quality imaging in for example medical and life science devices where a short working distance but large field of view is required. The serie has multiple focal lengths to assure the right working distance can be met for each application. The lens has a fixed iris and the focus is adjustable by turning the lens.
  More info

Specifications

Part number VA-LM12-10MP-4.5MM-F4.5-023
Observação 4.5mm focal length
Resolução (megapixel) 10
Formato da imagem / círculo 1/2.3"
Correção IR true
Distância focal (mm) 4
Abertura da lente / iris Fixed iris
Lens aperture (min) F4.5
Mínima distância do objeto (MOD) - Max 100mm - Infinity
Montagem M12

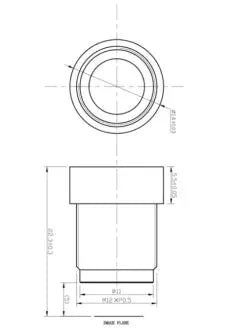

Dimensão 14x22.3mm
See all specs

Downloads

Need the VA-LM12-10MP-4.5MM-F4.5-023 3D stepfiles, MTF chart or lens manual?

Do you have a question about the VA-LM12-10MP-4.5MM-F4.5-023?

Ask us your question via

Part number VA-LM12-10MP-4.5MM-F4.5-023
Observação 4.5mm focal length
Resolução (megapixel) 10
Formato da imagem / círculo 1/2.3"
Correção IR true
Distância focal (mm) 4
Abertura da lente / iris Fixed iris
Lens aperture (min) F4.5
Mínima distância do objeto (MOD) - Max 100mm - Infinity
Montagem M12
Dimensão 14x22.3mm
Distorção < 2%
Rosca do filtro N/A
Peso (g) 8
Número antigo do produto LM12-10MP-4.5MM-F4.5-2.3-ND1
€59,00
