Line light high brightness series VA-LLHB2, Select your size, Industrial illumination

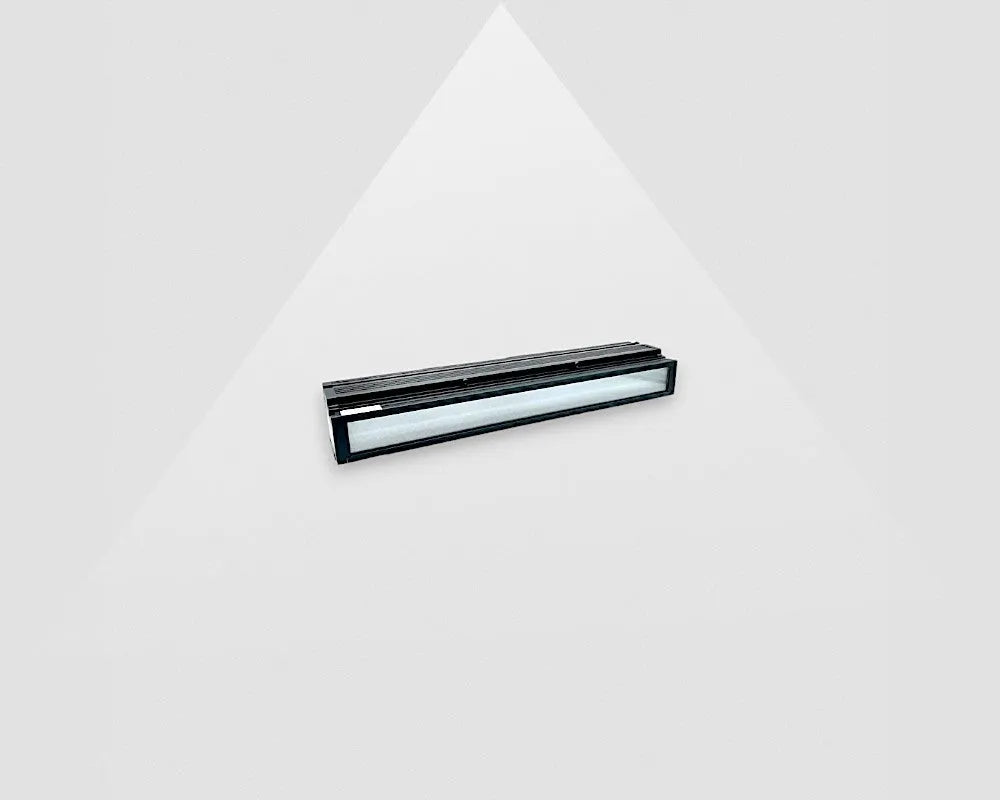

Line light high brightness series VA-LLHB2 Led linelight
Line light high brightness series VA-LLHB2
  • Select your size
  • Industrial illumination
€468,00
Delivery time: Standard 3-6, Express 0-3 weeks
Industrial Quality
Machine Vision

Description

Industrial Machine Vision Line Light High Brightness Series

Line light high brightness are industrial LED lights for illuminating products in machine

vision applications like surface defects on metal parts, character inspection on printed material, inspection of PCB components and positioning and recognition of large field objects. Our line light high brightness are available in different sizes. The standard color is White. On request also Red, Green or Blue, UV and IR line light high brightness are possible. If you can't find the right size, we can customize the light to fit your illumination request. Click here for the datasheets. Click here for the datasheets.

More info

Specifications

Part number VA-LLHB2-100W
Número antigo do produto VA1-LLHB2

Downloads

Need the Line light high brightness series VA-LLHB2 manual?

Do you have a question about the Line light high brightness series VA-LLHB2?

Ask us your question via

When to use line light high brightness in your machine vision application?

Line lights are the most commonly used lights in machine vision applications when using line scan cameras. They are very versatile. You can use them in applications when you are inspecting:

  • Objects on a conveyor belt
  • Endless production methods like, foil, glass inspection

How to use line light high brightness for illumination

Line light high brightness are commonly used together with line scan cameras. The light is focussed on a small, narrow section, making them very bright on the scan line.

Our Line lights are designed to operate with a stable current controlled 48V supply and don't have any built-in protection. To ensure a long and reliable operation, it is crucial to use our official  VA-PS4-CD 48V power supply series. Using an incompatible power supply may lead to product damage and void your warranty. Our power supply also has the advantage to power the light and the attached cooling fans with a single cable.

The cables for connecting the light are supplied when buying a compatible power supply. Based on the power of the light the cable with matching number of poles should be selected.

Overview of line lights high brightness

Model

Power*

Cable Poles

Emitting Area A (mm)

Dimensions

(mm)

Weight

(gram)

Express Stock



VA-LLHB2-100

52

4

100x25

110x50x98

500

No

VA-LLHB2-200

105

4

200x25

210x50x98

800

No

VA-LLHB2-300

158

4

300x25

310x50x98

1100

No

VA-LLHB2-400

210

4

400x25

410x50x98

1400

No

VA-LLHB2-500

264

4

500x25

510x50x98

1700

No

VA-LLHB2-600

316

6

600x25

610x50x98

2000

No

VA-LLHB2-700

370

6

700x25

710x50x98

3300

No

VA-LLHB2-800

410

6

800x25

810x50x98

3700

No

VA-LLHB2-900

450

6

900x25

910x50x98

4200

No

VA-LLHB2-1000

490

6

1000x25

1010x50x98

4600

No

VA-LLHB2-1100

530

6

1100x25

1110x50x98

5100

No

VA-LLHB2-1200

570

6

1200x25

1210x50x98

5500

No

VA-LLHB2-1300

650

6

1300x25

1310x50x98

6000

No

VA-LLHB2-1400

700

6

1400x25

1410x50x98

6400

No

VA-LLHB2-1500

750

6

1500x25

1510x50x98

6900

No

*Tolerance +/- 10%, Maximum output may be limited by power supply.

Delivery time
If the line light high brightness is not on express stock, it has to be custom produced and will be shipped after 4-6 weeks.

Download line light high brightness datasheet

In our line light high brightness datasheet you find the mechanical dimensions, wavelengths, operating temperature, compatible power supplies and so on. Login using your email address and get instantly access to our datasheets.

Production and quality control of line light high brightness

Our LED line lights high brightness are produced with a strict process of quality control, to ensure their reliability and consistency. Upon receiving a new batch of LEDs, the quality department completes a comprehensive check to test whether the wavelength falls within the specified tolerances. Approved LEDs are stored in a climate chamber, ready for use in production. The next stage of line light high brightness  production is automated and involves placing the LEDs on a PCB that fits the line light high brightness, which is then followed by an inspection and soldering. Moving along the production line, the LED boards are assembled into the mechanical housing of the line light high brightness. Post-assembly, the line light high brightness undergoes testing to ensure that performs according to its specification. This critical phase ensures that each line light high brightness unit meets our uncompromising quality standards.

The production process of the line light high brightness may also include the creation of a diffuser or polarizer. The diffuser is cut automatically, and every batch of diffuser plates undergoes transparency testing before they are cut into the correct shape. The final step involves a comprehensive quality check, where the intensity, voltage, and current of each line light high brightness are meticulously measured. This step guarantees that all machine vision lights that leave our facility meet the required specifications. To further ensure the long-term consistency of our line light high brightness, we have established a room dedicated to light-source age testing.

During the R&D phase of a new line light high brightness, it will be continuously on for 1 week, while the temperature is monitored. For every new production run, each line light high brightness  will be continuously powered for 12 hours, ensuring that the quality and output of our machine vision lights remain uniform over time.
