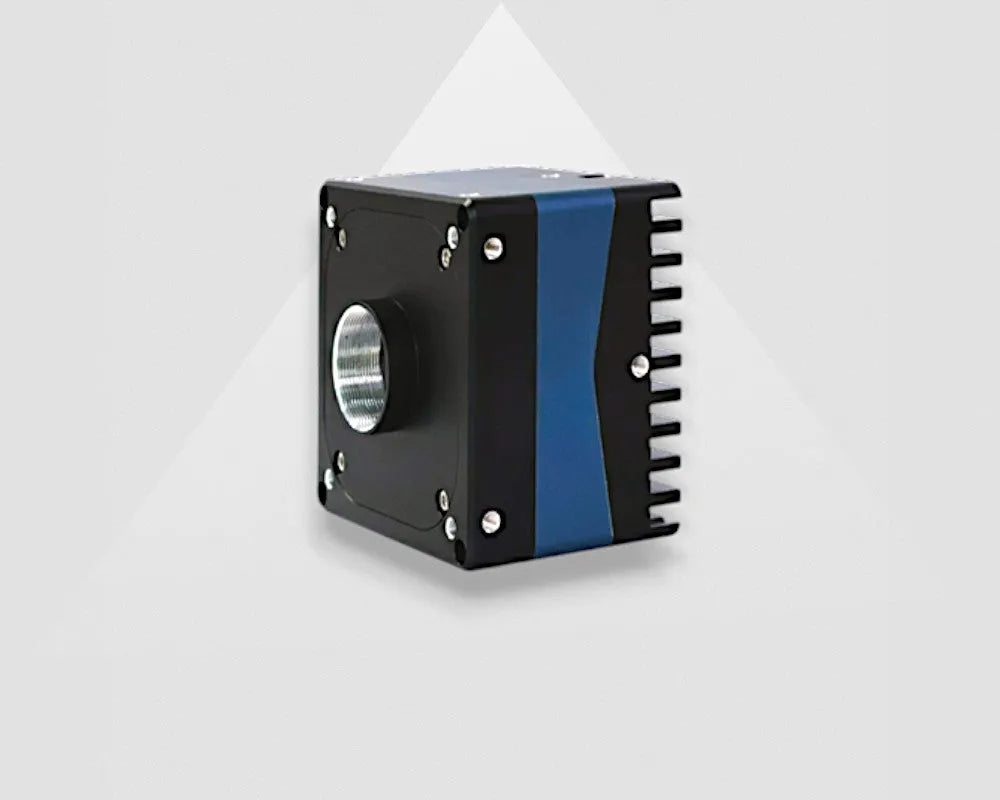

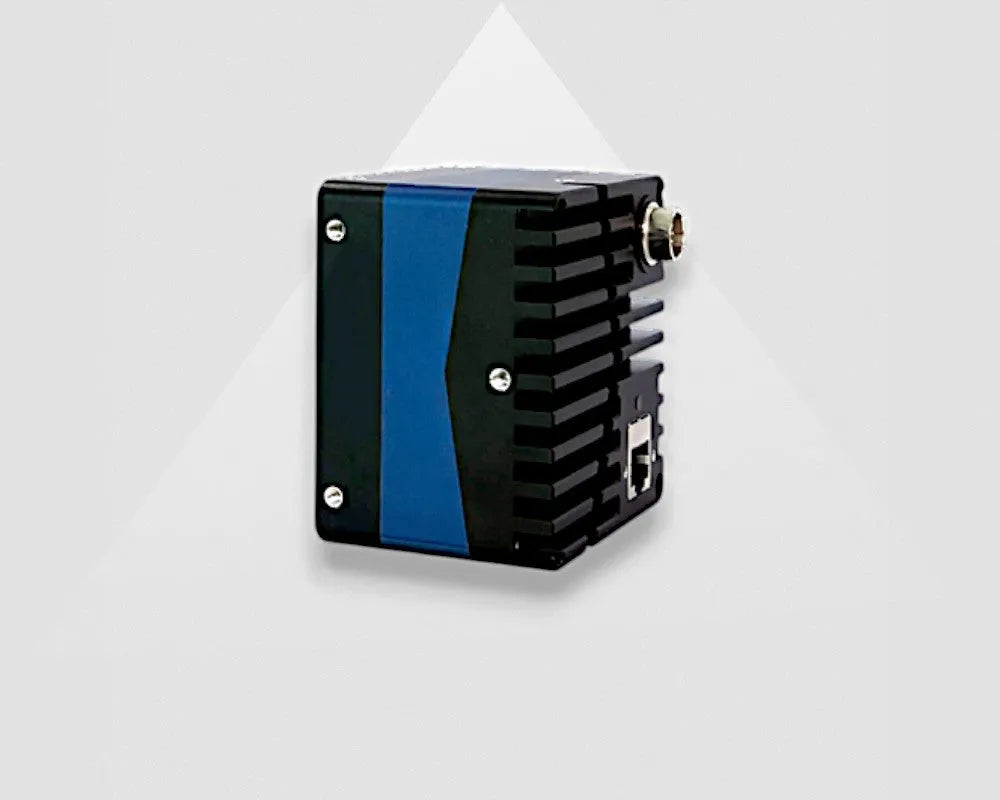

MARS-170-662GTM, IMX425, 1600x1104, 662fps, 1.1 inch, Global shutter, CMOS, Mono
- IMX425
- 1600x1104
- 662fps
- 1.1 inch
- Global shutter
- CMOS
- Mono
10GIGE VISION CAMERA IMX425
The Mars 10GigE series is an industrial 10GigE vision camera, with a 10GigE interface. This is the best interface for high resolution and / or, high speed imaging where cable length is more than 5 meters. 10GigE is 10x faster then a normal GigE ethernet camera and 2x faster than USB3.
This MARS-170-662GTM is interesting for you when your application complies with the following conditions:
- An industrial highspeed or high-resolution camera
- Maximum cable length of 100 meters using cat6a or higher cable
- Inexpensive and easy installation of cables.
- Dimensions are: 74x74x52mm
The camera requires a 10GigE framegrabber. If your computer does not have a 10GigE port, we recommend this framegrabber VA-PCIe4-10GP-1. If more details are required, the manual can be consulted.
More infoSpecifications
| Part number | MARS-170-662GTM |
| Interface | 10GigE Vision |
| Resolução | 1600X1104 |
| Frame rate (fps) | 662 |
| Tamanho do pixel (um) | 9.0 |
| Cor/Mono | Mono |
| Tipo do sensor | Sony IMX425 |
| Tamanho do sensor | 1.1" |
| Tipo de shutter | Global Shutter |
| Tempo de shutter | 1us~1s |
| Profundidade de Bits ADC | 12bit |
INDUSTRIAL 10GIGE CAMERA WITHOUT POE
The 10GigE camera series does NOT have Power over Ethernet (PoE). Make sure to order a I/O cable suitable for MARS cameras to power the camera.
Monochrome Industrial Camera
A black and white camera, also known as a monochrome camera, offers advantages in a variety of applications. While the market for security and telephony focusses on color cameras, the industrial market utilizes the advantages of black and white cameras. Black and white cameras are very light sensitive, provide sharp images and reduces data compared to color. This makes it ideal for the processing of images. By selecting the optimal lighting color and lens filter, product characteristics can be highlighted. Enabling the creation of high-resolution images with high contrast using a monochrome cameras.
Ultra High Speed
The MARS-170-662GTM is a high-speed machine vision camera capable of achieving up to 12500 fps at a 10-bit resolution when the sensor pixel height is configured to 8 lines. With this setting, the camera delivers a 10 bit image quality with minimal noise and makes it suitable for a wide range of applications. Especially in demanding high speed applications such as continuous inspections, 3D profiling, scientific imaging or motion analysis, the MARS-170-662GTM provides exceptional framerates in these otherwise challenging processes. Users can calculate the exact framerates for their configurations using the framerate calculator available on the download page.
MTBF, WARRANTY & PRODUCT LIFE CYCLE
Each year, Daheng Imaging produces more than 100.000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is available for at least 7 years. Most cameras have a much longer product life cycle. For more information about our product life cycle management, check this article.
| Part number | MARS-170-662GTM |
| Interface | 10GigE Vision |
| Resolução | 1600X1104 |
| Frame rate (fps) | 662 |
| Tamanho do pixel (um) | 9.0 |
| Cor/Mono | Mono |
| Tipo do sensor | Sony IMX425 |
| Tamanho do sensor | 1.1" |
| Tipo de shutter | Global Shutter |
| Tempo de shutter | 1us~1s |
| Profundidade de Bits ADC | 12bit |
| Profundidade de bits do pixel | 8bit, 10bit, 12bit |
| Digital Gain | 24dB~48dB |
| Formato de dados do pixel | Mono8 / Mono10 / Mono12 / Mono12 Packed |
| Sincronização | Hardware trigger, software trigger |
| I/O | 1 input and 1 output with opto-isolated, 1 bidirectional programmable GPIO |
| Temp. de operação | 0°C~50°C |
| Umidade de operação | 10%~80% |
| Montagem | C |
| Dimensão | 74x74x52.6mm |
| SDK Software | Win10 32bit, 64bit OS, 64bit OS is recommended |
| Consumo de energia | < 16 W @ 12 VDC |
| Peso (g) | 470 |
| Conformidade | CE, RoHS, ICES, UKCA, GigE Vision®, GenICam® |
| Megapixel | 2 |
| Número antigo do produto | MARS-170-662GTM |
| SDK Software | Win10 32bit, 64bit OS, 64bit OS is recommended |
