MER2-630-60U3M-W90, IMX178, 3088x2064, 60fps, 1/1.8 inch, Rolling shutter, right angle (90), Mono
- IMX178
- 3088x2064
- 60fps
- 1/1.8 inch
- Rolling shutter
- right angle (90)
- Mono
Description

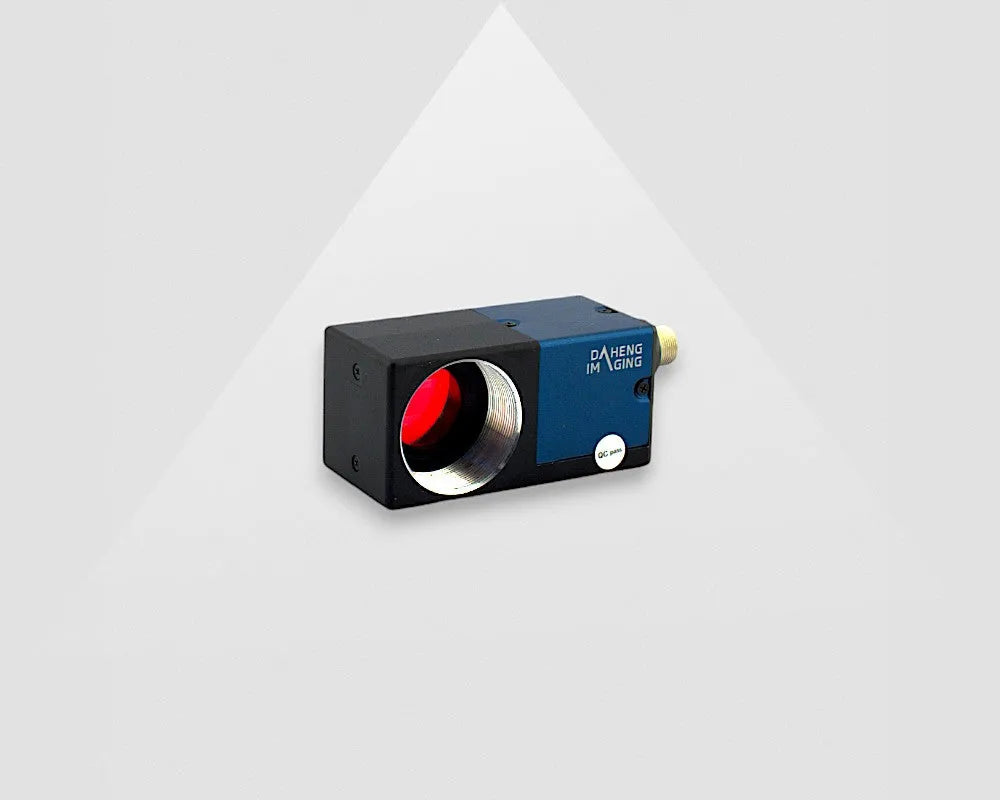

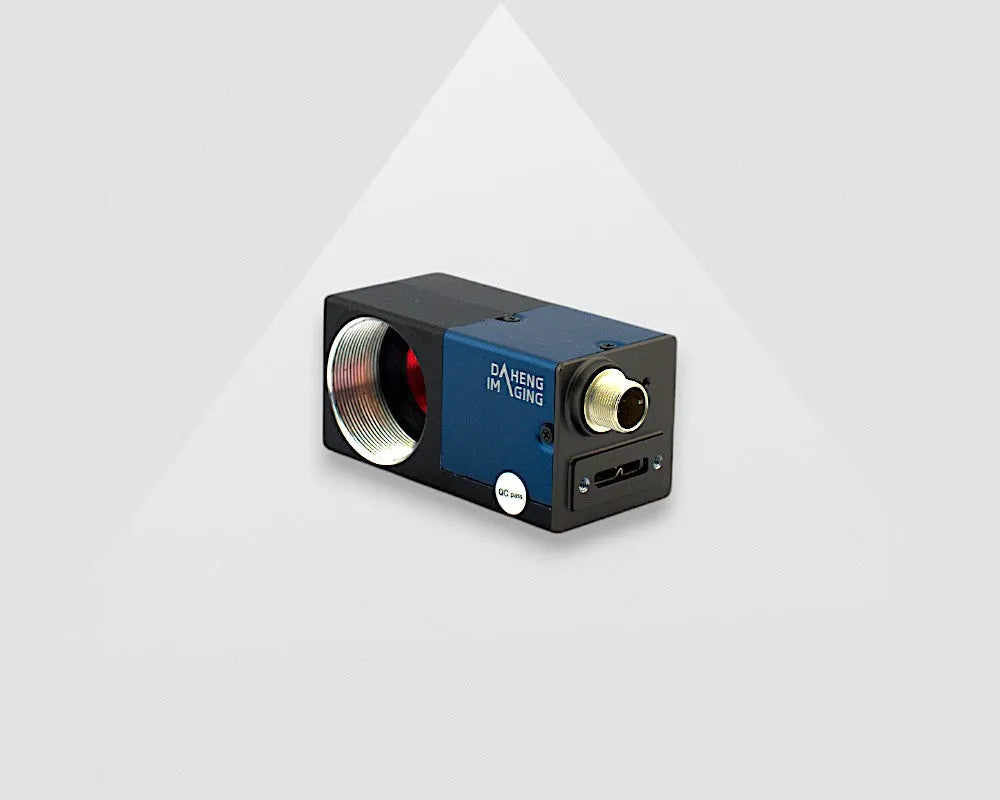

Industrial USB 3.0 Vision camera with 90 degree head
The Mercury2 USB3.0 camera is an industrial vision camera, with a USB 3.0 interface and a 90 degree camera head. USB 3.0 is an appropriate interface for high resolution and high-speed cameras. This interface is very suitable for embedded platforms such as the Raspberry Pi (4 or higher), NVIDIA family and for standard computers.
This industrial vision camera model is interesting for you when your application complies with the following conditions:
- An industrial camera
- Maximum cable length of 4.5 meters (or 10 meter using optical USB3 cable)
- Only one cable is required to connect the device

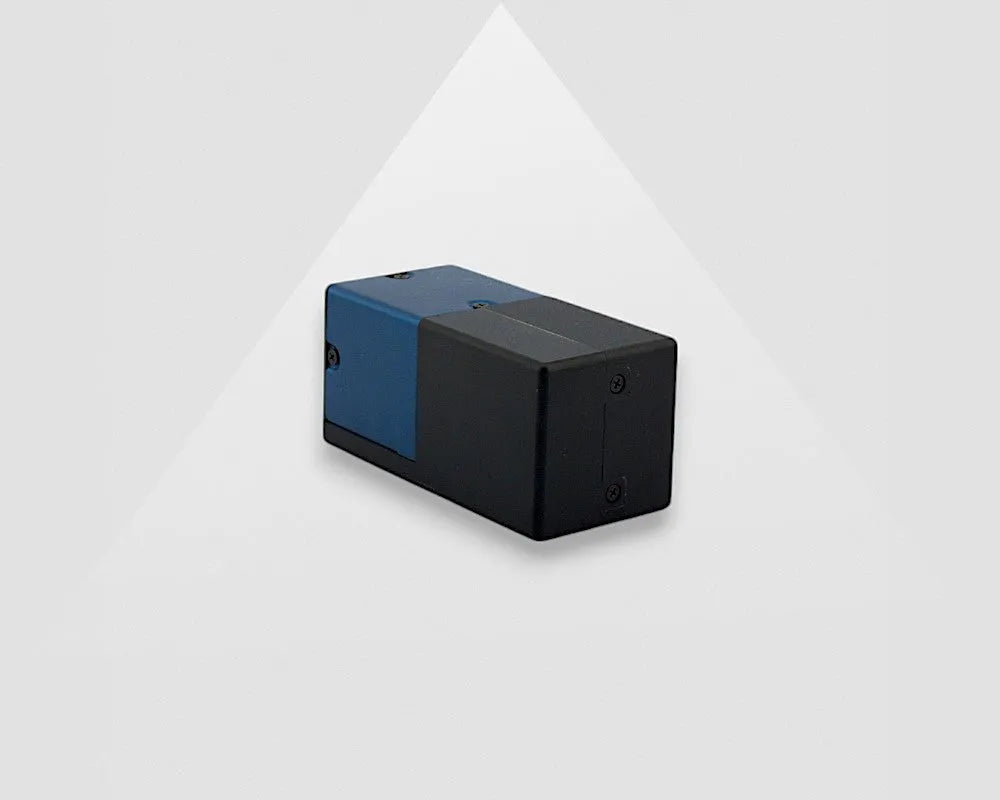

- Compact dimensions due to 90 degree right angle head
- Suitable for computers (x86) and embedded platforms: ARM V7 & ARM V8
- Hardware triggering (I/O cable is required)
For more details about our industrial USB 3.0 vision cameras check our manual.
Specifications
| Part number | MER2-630-60U3M-W90 |
| Interface | USB3 Vision |
| Resolução | 3088x2064 |
| Frame rate (fps) | 60 |
| Tamanho do pixel (um) | 2.4 |
| Cor/Mono | Mono |
| Tipo do sensor | Sony IMX178 |
| Tamanho do sensor | 1/1.8" |
| Tipo de shutter | Rolling Shutter |
| Tempo de shutter | 8us~1s |
| Profundidade de Bits ADC | 10bit |
MTBF, warranty & product life cycle
Each year, Daheng Imaging produces more than 100.000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is available for at least 7 years. Most cameras have a much longer product life cycle. For more information about our product life cycle management, check this article.
Industrial monochrome / black&white camera
A black and white camera, also known as a monochrome camera, offers advantages in a variety of (industrial) applications. While the market for security and telephony focuses on color cameras, the industrial market utilizes the advantages of black and white cameras. Black and white cameras are up to 3 times more light sensitive, provide sharp images and reduces data compared to color. This makes it ideal for the processing of images. By selecting the right color light source and lens filter, extra contrast in the image is created. The industrial monochrome camera captures images with high contrast and resolution.
I/O port for hardwaretrigger, strobecontrol or PLC communication

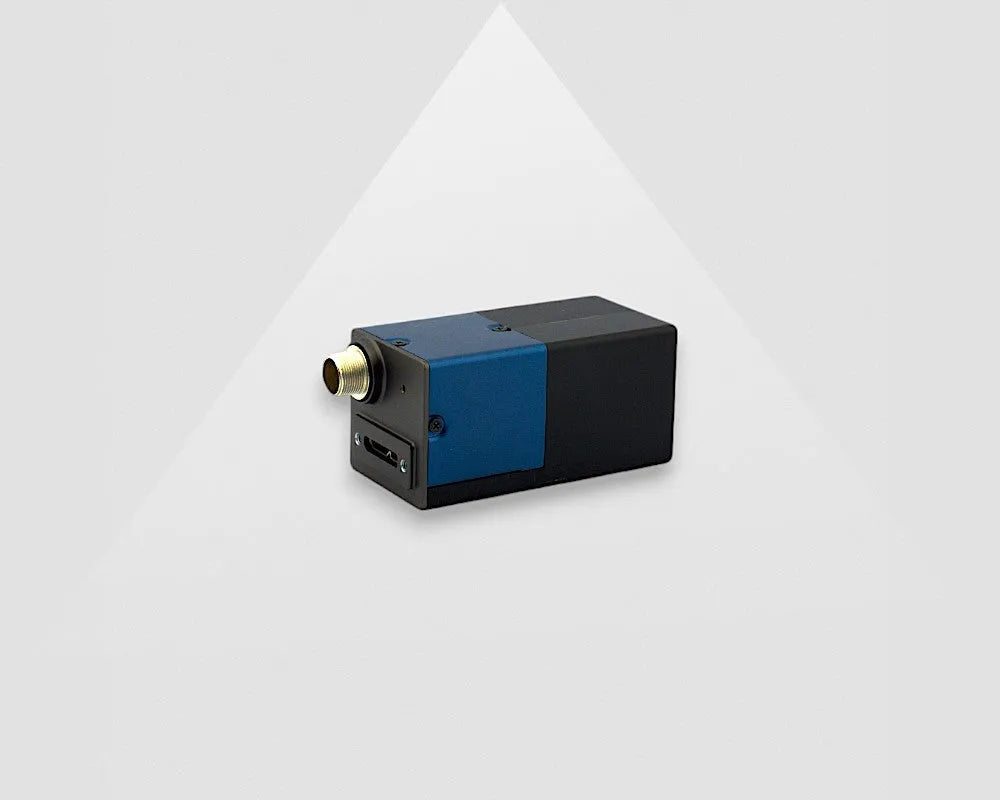

The I/O connector from a USB camera is an 8 pin HR25 Hirose connector, which is a standard in the industrial machine vision market. This camera has an input that can be used as a hardware trigger for the device. The output of the camera can be used to trigger a light source, for example an industrial machine vision light. Furthermore, the camera has two GPIO’s (General Purpose Input/ Output) which can be programmed by using our SDK. The electrical diagrams to use the I/O connector are provided in the manual. You can also check our article: hardware triggering multiple industrial cameras.
| Part number | MER2-630-60U3M-W90 |
| Interface | USB3 Vision |
| Resolução | 3088x2064 |
| Frame rate (fps) | 60 |
| Tamanho do pixel (um) | 2.4 |
| Cor/Mono | Mono |
| Tipo do sensor | Sony IMX178 |
| Tamanho do sensor | 1/1.8" |
| Tipo de shutter | Rolling Shutter |
| Tempo de shutter | 8us~1s |
| Profundidade de Bits ADC | 10bit |
| Profundidade de bits do pixel | 8bit, 10bit |
| Digital Gain | 0dB~24dB |
| Formato de dados do pixel | Mono8 / Mono10 |
| Sincronização | Hardware trigger, software trigger |
| I/O | 1 opto-isolated input line and 1 opto isolated output line, 2 GPIO |
| Temp. de operação | 0°C~45°C |
| Umidade de operação | 10%~80% |
| Montagem da lente | C |

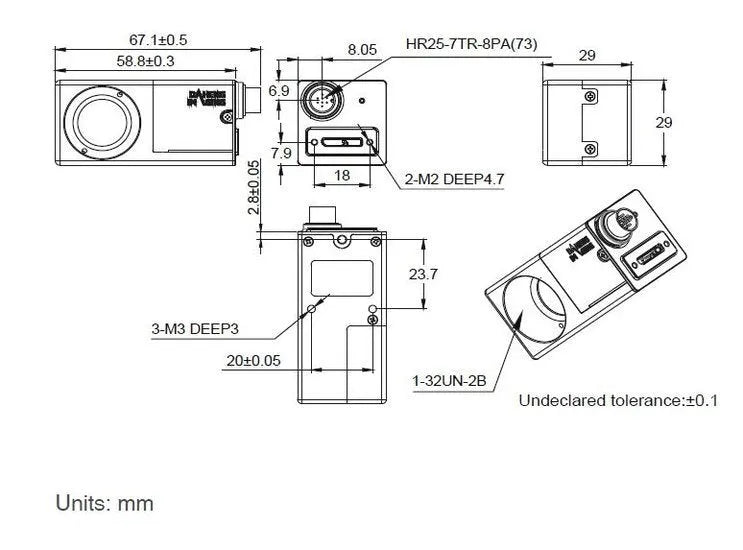

| Dimensão | 29x29x58.8mm |
| SDK Software | Windows / Linux / Android |
| Consumo de energia | <3W@5V |
| Peso (g) | 78 |
| Conformidade | RoHS, CE, FCC, USB3 Vision, Genicam |
| Megapixel | 6 |
| Número antigo do produto | MER2-630-60U3M-W90 |
