MER2-041-436U3M, EOL

MER2-041-436U3M EOL
MER2-041-436U3M
  • EOL
€218,00
Delivery time: Standard 3-6, Express 0-3 weeks
Garantia de 3 anos
Certificado pela TÜV Rheinland

Description

EOL, REPLACEMENT MER2-041-528U3C

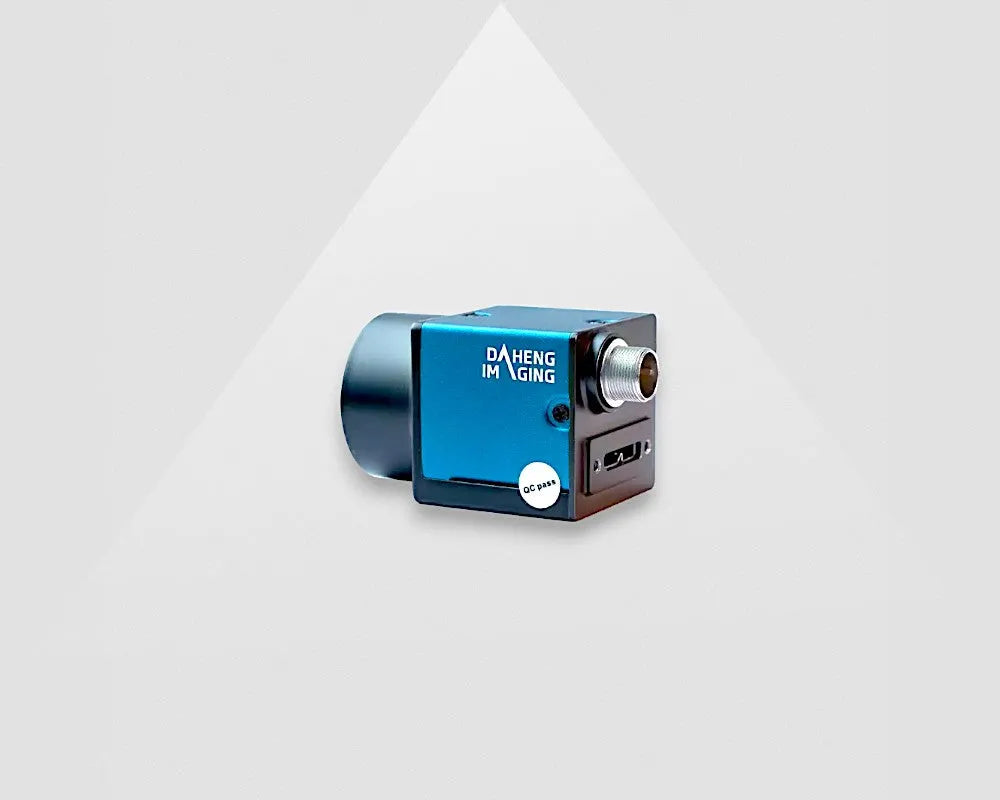

Industrial USB 3.0 Vision camera

The Mercury2 USB3.0 camera is an industrial vision camera, with an USB 3.0 interface. USB 3.0 is an appropriate interface for high resolution and high-speed cameras. This interface is very suitable for embedded platforms such as the Raspberry Pi 4, NVIDIA Jetson TX1, TX2, Nano and Xavier and for standard computers.
This industrial vision camera model is interesting for you when your application complies with the following conditions:
-    An industrial camera
-    Maximum cable length of 4.5 meters (or 10 meter using optical USB3 cable)
-    Only one cable is required to connect the device
-    Compact dimensions (29x29x29mm)
-    Suitable for computers (x86) and embedded platforms: ARM V7 & ARM V8
-    Hardware triggering (I/O cable is required)

For more details about our industrial USB 3.0 vision cameras check our manual.

More info

Specifications

Part number MER2-041-436U3M
Interface USB3 Vision
Resolução 720x540
Frame rate (fps) 438
Tamanho do pixel (um) 6.9
Cor/Mono Mono
Tipo do sensor Sony IMX287
Tamanho do sensor 1/2.9"
Tipo de shutter Global Shutter
Tempo de shutter 52us~1s
Profundidade de Bits ADC 10bit
See all specs

Downloads

Need the MER2-041-436U3M manual?

Do you have a question about the MER2-041-436U3M?

Ask us your question via

MTBF, warranty & product life cycle

Each year, Daheng Imaging produces more than 100.000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is available for at least 7 years. Most cameras have a much longer product life cycle. For more information about our product life cycle management, check this article.

Industrial monochrome / black&white camera

A black and white camera, also known as a monochrome camera, offers advantages in a variety of (industrial) applications. While the market for security and telephony focusses on color cameras, the industrial market utilizes the advantages of black and white cameras. Black and white cameras are up to 3 times more lightsensitive, provide sharp images and reduces data compared to color. This makes it ideal for the processing of images. By selecting the right color light source and lens filter, extra contrast in the image is created. The industrial monochrome camera captures images with high contrast and resolution.

I/O port for hardwaretrigger, strobecontrol or PLC communication

The I/O connector from a USB camera is an 8 pin HR25 Hirose connector, which is a standard in the industrial machine vision market. This camera has an input that can be used as a hardware trigger for the device. The output of the camera can be used to trigger a light source, for example an industrial machine vision light. Furthermore, the camera has two GPIO’s (General Purpose Input/ Output) which can be programmed by using our SDK. The electrical diagrams to use the I/O connector are provided in the manual. You can also check our article: hardware triggering multiple industrial cameras.

If you don’t use the I/O port, it’s possible to order the camera without I/O. This will reduce the cost price of the camera with € 10. The minimum order quantity for an industrial camera without I/O is 10 pieces. If you want to order the industrial USB3 camera without I/O, please contact us.

Part number MER2-041-436U3M
Interface USB3 Vision
Resolução 720x540
Frame rate (fps) 438
Tamanho do pixel (um) 6.9
Cor/Mono Mono
Tipo do sensor Sony IMX287
Tamanho do sensor 1/2.9"
Tipo de shutter Global Shutter
Tempo de shutter 52us~1s
Profundidade de Bits ADC 10bit
Profundidade de bits do pixel 8bit, 10bit
Digital Gain 0dB~24dB
Formato de dados do pixel Mono8 / Mono10
Sincronização Hardware trigger, software trigger
I/O 1 opto-isolated input line and 1 opto isolated output line, 2 GPIO
Temp. de operação 0°C~45°C
Umidade de operação 10%~80%
Montagem da lente C

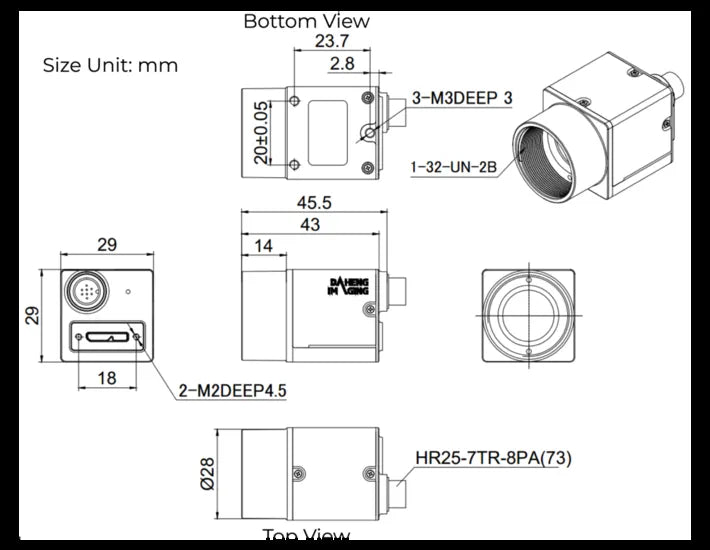

Dimensão 29x29x29mm
SDK Software Windows / Linux / Android
Consumo de energia <2.7W@5V
Peso (g) 65
Conformidade RoHS, CE, FCC, USB3 Vision, Genicam
Número antigo do produto MER2-041-436U3M
€218,00
