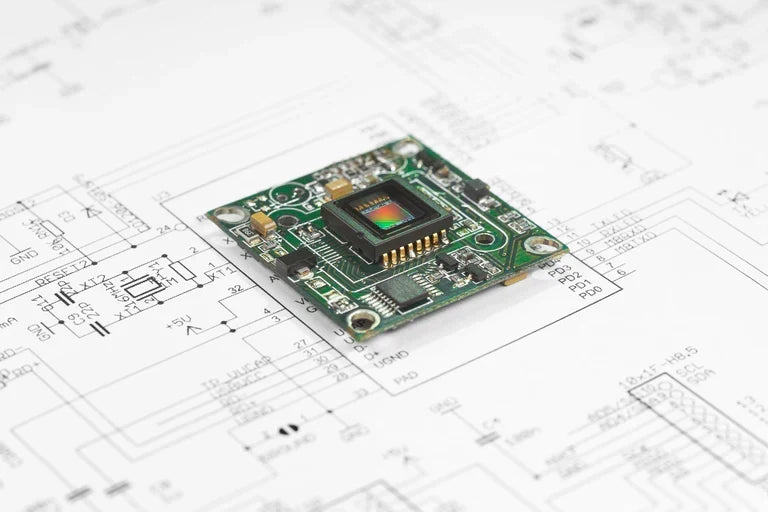

Sony IMX532 Sensor: 16MP Global Shutter for Machine Vision
The Sony IMX532 sensor is a 16-megapixel global shutter CMOS image sensor designed for industrial machine vision applications that require both high image detail and fast acquisition.
With a resolution of 5312 × 3040 pixels, 2.74 µm pixels and global shutter imaging, the IMX532 provides a useful balance between resolution and speed. VA Imaging offers both monochrome and color CoaXPress cameras based on the IMX532, with full-resolution acquisition at up to 139 fps.
This makes the sensor particularly relevant for applications such as PCB inspection, assembly verification, electronics inspection and other high-throughput industrial imaging tasks.
Sony IMX532 Sensor Specifications
The Sony IMX532 sensor specifications combine approximately 16MP resolution with global shutter imaging and high-speed acquisition.
| Sensor technology | CMOS |
|---|---|
| Resolution | 5312 × 3040 |
| Resolution class | Approx. 16 MP |
| Pixel size | 2.74 × 2.74 µm |
| Sensor size | 1/1.1" |
| Shutter type | Global shutter |
| Available versions | Monochrome and color |
| Camera frame rate | Up to 139 fps |
| Pixel bit depth | 8 bit, 10 bit, 12 bit |
VA Imaging's IMX532 cameras capture 5312 × 3040 images at up to approximately 139 fps, giving the sensor a useful position between slower high-resolution cameras and lower-resolution cameras optimized primarily for maximum frame rate.
What Makes the Sony IMX532 Sensor Different?
The Sony IMX532 stands out because it combines 16MP resolution, a global shutter and acquisition speeds up to approximately 139 fps.
Machine vision applications often involve a trade-off between resolution and speed. Increasing resolution provides more image detail, but also increases the amount of data that needs to be transferred and processed.
The IMX532 provides approximately 16 million pixels while maintaining a frame rate high enough for many automated production environments.
Its global shutter is equally important. The entire frame is exposed at the same time, helping prevent geometric distortion when imaging moving products, components or carriers.
This makes the sensor particularly suitable for inspection systems where both fine image detail and production throughput matter.
Why 16MP and 139 fps Can Be a Useful Balance
The combination of 16MP resolution and approximately 139 fps makes the IMX532 suitable for applications that require both spatial detail and relatively short inspection cycles.
Its 5312 × 3040 resolution enables small features to remain visible across a relatively large field of view.
At the same time, a maximum acquisition speed of approximately 139 fps gives machine vision systems more opportunity to capture products moving at higher production speeds.
This can be useful when the system needs to detect:
- small assembly features
- fine surface defects
- connector details
- component position or orientation
- product differences across a wider field of view
For applications where extremely high frame rates are the primary requirement, another sensor may be more suitable. Where resolution and speed need to remain balanced, the IMX532 becomes particularly interesting.
Industrial Cameras with the Sony IMX532 Sensor
VA Imaging offers Sony IMX532 cameras in both monochrome and color configurations for high-resolution industrial imaging.
The current camera range uses the CoaXPress interface, providing the bandwidth required to transmit 5312 × 3040 images at up to approximately 139 fps.
The monochrome version is typically suited to inspection based on contrast, geometry, edges, shape and surface characteristics. It can also be combined with dedicated illumination wavelengths and optical filters.
The color version is suitable when color differences form part of the inspection decision, such as distinguishing components, labels, markings or product variants.
The MARS-1611-139X2M is the monochrome VA Imaging camera based on the Sony IMX532. It combines 16MP resolution, global shutter imaging and CoaXPress connectivity for applications where contrast and fine image detail are important.
The MARS-1611-139X2C is the color version of the VA Imaging IMX532 camera. It provides the same 5312 × 3040 resolution and high-speed acquisition while adding color information for inspection tasks where color differences are relevant.
Why Use CoaXPress with the Sony IMX532?
CoaXPress provides the bandwidth needed to transfer the large amount of image data generated by a 16MP sensor operating at approximately 139 fps.
A single IMX532 image contains more than 16 million pixels. Capturing more than 100 of those images every second creates a significant data stream.
The VA Imaging IMX532 cameras therefore use two CXP-12 connections.
This makes CoaXPress particularly suitable where:
- full sensor resolution needs to be maintained
- high acquisition speed is important
- hardware triggering is required
- large image volumes need to be transferred reliably
- predictable camera-to-host communication is important
The interface is therefore an important part of achieving the full performance available from the IMX532 camera.
Monochrome or Color Sony IMX532 Camera?
Choosing between a monochrome and color IMX532 camera depends mainly on whether color contributes useful information to the inspection.
A monochrome Sony IMX532 camera is generally suitable when the inspection relies on:
- contrast
- dimensions
- edges
- shape
- surface structure
- defect detection
- dedicated illumination wavelengths
A color Sony IMX532 camera is more suitable when color itself is part of the inspection decision.
Typical examples include:
- colored component verification
- label inspection
- product variant identification
- colored marking inspection
- assembly verification based on color
Both versions retain the same core combination of 16MP resolution, global shutter performance and high-speed acquisition.
Applications for Sony IMX532 Cameras
Sony IMX532 cameras are particularly relevant for industrial applications where fine detail needs to remain visible at relatively high production speeds.
PCB inspection requires cameras to capture many small components and connections within a relatively large inspection area.
The 16MP resolution of the IMX532 helps retain fine detail while maintaining a wider field of view.
This makes it suitable for tasks such as component presence checks, connector inspection and PCB verification.
Assembly verification requires enough image detail to determine whether components are present, positioned correctly and properly oriented.
The IMX532 combines high resolution with acquisition at up to approximately 139 fps, making it suitable for production environments with relatively short cycle times.
Consumer electronics inspection often combines small components, compact assemblies and high production volumes.
The 5312 × 3040 resolution helps retain fine image detail, while global shutter imaging prevents moving components from being distorted during acquisition.
New-energy manufacturing can involve detailed inspection of batteries, energy-storage components and associated assemblies.
A combination of relatively high resolution and fast acquisition can help inspect these components while maintaining production throughput.
Surface and defect inspection benefits from the IMX532 when small visual differences need to be detected across a larger field of view.
With suitable optics and illumination, the sensor can be used to detect scratches, surface irregularities, edge defects and other small features.
Applications for Sony IMX532 Cameras
Choosing the correct lens for the Sony IMX532 is important because the sensor combines 16MP resolution with relatively small 2.74 µm pixels.
The optical system must provide enough resolving power to make effective use of the sensor resolution.
When selecting a lens, consider:
- sensor size
- required field of view
- working distance
- image circle
- focal length
- optical resolution
- aperture
- depth of field
- illumination wavelength
VA Imaging's IMX532 cameras use a C-mount lens interface, providing access to a wide range of industrial machine vision lenses.
For high-resolution inspection, the lens should be selected based on the required object-side detail rather than only on a stated megapixel rating.
Is the Sony IMX532 the Right Sensor for Your Application?
The Sony IMX532 is a strong option when high resolution, global shutter performance and relatively fast acquisition are all important.
Its 5312 × 3040 resolution provides approximately 16 million pixels for detailed industrial imaging, while global shutter acquisition helps capture moving products without rolling-shutter distortion.
VA Imaging's IMX532 cameras operate at up to approximately 139 fps at full resolution, giving the sensor a useful balance between image detail and acquisition speed.
However, the complete machine vision system still needs to support that performance. The camera interface, frame grabber, computer, storage, optics and illumination all need to be selected around the required image quality and throughput.
For applications where significantly higher frame rates are required, a lower-resolution high-speed sensor may be the better choice. Where greater resolution is required and lower speed is acceptable, a higher-resolution sensor may be more suitable.
Where 16MP resolution, global shutter imaging and approximately 139 fps provide the right balance, the Sony IMX532 combined with CoaXPress offers a strong platform for demanding machine vision systems.
Contact VA Imaging for help selecting the right camera and configuration for your setup.
